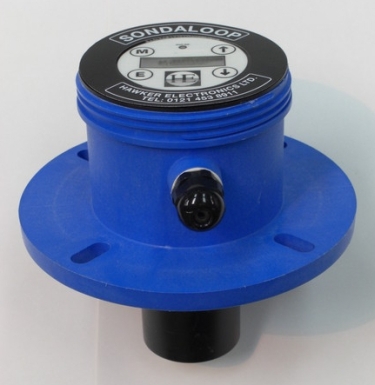

Hawker Electronics - Sondaloop


Continuous Non-Contact Level Measurement


  Simple setting up procedure save commissioning time
  Low power consumption gives economical operation
  Self diagnostic facility and automatic re-calibration
  Polypropylene casing for increased chemical resistance
  Weatherproof to IP68 (2m for 24 hours)
  The intergral moulded flange accepts ANSI, DIN, BS, sizes

The Sondaloop provides accurate, reliable level measurement for liquids and slurries, it is a loop powered, ultrasonic transmitter which operates from an 20 -38V DC voltage, thus enabling the 4-20mA signal produced to be transmitted over relatively long distances.

If 4 control relays, digital indication & a power supply are required use Flexilevel 2 as an add on unit.

If only 2 relays & a power supply are required use Type 800 Dual Trip Amp or the PS2 power supply with cable monitoring & lost echo.


Downloads


Datasheet

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
