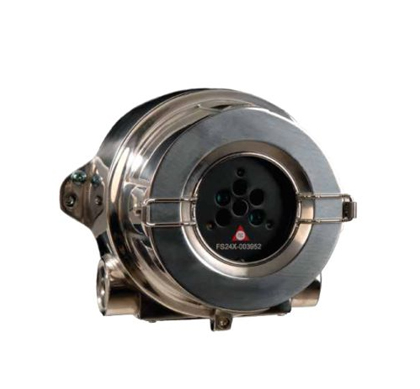

Honeywell Analytics Fire Sentry FS24X Flame Detectors

Honeywell Analytics Fire Sentry FS24X Flame Detectors

Honeywell Analytics Fire Sentry FS24X is a quantum leap in flame and fire detection with its sophisticated software and detection technology.

Key Features

  • Patented WideBand IR technology
  • Patented Electronic Frequency Analysis
  • Visible sensor for optimum false alarm rejection
Get a Quote
Honeywell Analytics

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

Fire Sentry FS24X is a quantum leap in flame and fire detection with its sophisticated software and detection technology.

The Fire Sentry FS24X is the latest generation high technology Multi-Spectrum Triple IR (IR/IR/IR/Visible) Fire and Flame Detector, which is part of our FSX family of advanced technology Electro-Optical fire detectors. Using our patented* WideBand IR, WideBand 4.3 micron IR, and Visible detection technology, the Fire Sentry FS24X is a quantum leap in flame and fire detection. Sophisticated software algorithms and dual microprocessors ensure that the Fire Sentry FS24X has the highest fire detection performance combined with optimal false alarm rejection.

The WideBand IR Infrared technology using high-speed solid-state Quantum sensors allows detection of all types of fires, hydrocarbon and non-hydrocarbon, in all weather conditions. If the detectors signal is blocked by ordinary window glass, the patented WideBand IR sensors will still alarm to the fire albeit at a reduced sensitivity and slower response time.

Dual microprocessors provide a high level of fail-safe operation combined with fast and reliable performance. The master microprocessor performs high-speed digital sampling and signal-processing calculations, while the slave microprocessor handles various sensor data, performs communications, self-diagnostics and provides interface versatility and additional memory for storing Event Log and FirePic data.

The Fire Sentry FSX family of detectors feature our patented* FirePic data storage and information retrieval facility. FirePic records pre-fire data, which can be recovered from the Detectors non-volatile flash memory for post fire analysis and postulation of the fire cause. Additionally, unique Real-Time Graphing (RTG) allows viewing of the data which the Detector actually sees. A combination of outputs makes the Fire Sentry FS24X a truly versatile detector for todays demanding industrial requirements.

The Fire Sentry FS24X detector has a detection range greater than 60 m (200 feet) (Very High Sensitivity setting) for the detection of a 0.1 m2 (one square-foot) Heptane reference fire and has a cone of vision far greater in volumetric coverage than any other Multi-Spectrum IR Detector. This means fewer Detectors can be used as compared to other manufacturers Detectors.

FS24X-211 Series with 110° field of view, standard temp range -40° to 85°C
  • FS24X-211-21-1 QuadBand™ IR3+ Detector, Copper-Free Aluminum Encl., (2) ¾"NPT entries FM, cFM, IECEx & ATEX approved

  • FS24X-211-22-1 QuadBand™ IR3+ Detector, 316 Stainless Steel Encl., (2) ¾" NPT entries FM, cFM, IECEx & ATEX approved

  • FS24X-211-23-1 QuadBand™ IR3+ Detector, Copper-Free Aluminum Encl., (2) M25 entries FM, cFM, IECEx & ATEX approved

  • FS24X-211-24-1 QuadBand™ IR3+ Detector, 316 Stainless Steel Encl. (2) M25 entries FM, cFM, IECEx & ATEX approved

  • FS24X-911 Series with 90° field of view, standard temp range -60° to 85°C

  • FS24X-911-21-1 QuadBand™ IR3+ Detector, Copper-Free Aluminum Encl., (2) ¾"NPT entries FM, cFM, IECEx & ATEX approved

  • FS24X-911-22-1 QuadBand™ IR3+ Detector, 316 Stainless Steel Encl., (2) ¾" NPT entries FM, cFM, IECEx & ATEX approved

  • FS24X-911-23-1 QuadBand™ IR3+ Detector, Copper-Free Aluminum Encl., (2) M25 entries FM, cFM, IECEx & ATEX approved

  • FS24X-911-24-1 QuadBand™ IR3+ Detector, 316 Stainless Steel Encl. (2) M25 entries FM, cFM, IECEx & ATEX approved

  • FS24X-911-21-6 QuadBand™ IR3+ Detector, Copper-Free Aluminum Encl., (2) ¾"NPT entries FM, cFM, IECEx, ATEX and EN54-10 approved

  • FS24X-911-22-6 QuadBand™ IR3+ Detector, 316 Stainless Steel Encl., (2) ¾" NPT entries FM, cFM, IECEx, ATEX and EN54-10 approved

  • FS24X-911-23-6 QuadBand™ IR3+ Detector, Copper-Free Aluminum Encl., (2) M25 entries FM, cFM, IECEx, ATEX and EN54-10 approved

  • FS24X-911-24-6 QuadBand™ IR3+ Detector, 316 Stainless Steel Encl. (2) M25 entries FM, cFM, IECEx, ATEX and EN54-10 approved

FS24X-211 Kits
  • FS24X-212-21-1 FS24X-211-21-1 QuadBand™ IR3+ Detector, Copper-Free Aluminum Encl., (2) ¾"NPT entries FM, cFM, IECEx & ATEX approved with FSX-A014R Optional Registered HART Module for FS24X Detectors Factory installed.

  • FS24X-212-22-1 FS24X-211-22-1 QuadBand™ IR3+ Detector, 316 Stainless Steel Encl., (2) ¾" NPT entries FM, cFM, IECEx & ATEX approved with FSX-A014R Optional Registered HART Module for FS24X Detectors Factory installed.

  • FS24X-212-23-1 FS24X-211-23-1 QuadBand™ IR3+ Detector, Copper-Free Aluminum Encl., (2) M25 entries FM, cFM, IECEx & ATEX approved with FSX-A014R Optional Registered HART Module for FS24X Detectors Factory installed.

  • FS24X-212-24-1 FS24X-211-24-1 QuadBand™ IR3+ Detector, 316 Stainless Steel Encl. (2) M25 entries FM, cFM, IECEx & ATEX approved with FSX-A014R Optional Registered HART Module for FS24X Detectors Factory installed.
FS24X-911 Kits
  • FS24X-912-21-1 FS24X-911-21-1 QuadBand™ IR3+ Detector, Copper-Free Aluminum Encl., (2) ¾"NPT entries FM, cFM, IECEx & ATEX approved with FSX-A014R Optional Registered HART Module for FS24X Detectors Factory installed.

  • FS24X-912-22-1 FS24X-911-22-1 QuadBand™ IR3+ Detector, 316 Stainless Steel Encl., (2) ¾" NPT entries FM, cFM, IECEx & ATEX approved with FSX-A014R Optional Registered HART Module for FS24X Detectors Factory installed.

  • FS24X-912-23-1 FS24X-911-23-1 QuadBand™ IR3+ Detector, Copper-Free Aluminum Encl., (2) M25 entries FM, cFM, IECEx & ATEX approved with FSX-A014R Optional Registered HART Module for FS24X Detectors Factory installed.

  • FS24X-912-24-1 FS24X-911-24-1 QuadBand™ IR3+ Detector, 316 Stainless Steel Encl. (2) M25 entries FM, cFM, IECEx & ATEX approved with FSX-A014R Optional Registered HART Module for FS24X Detectors Factory installed.
Accessories
  • SM4 Stainless Steel Swivel mounting assembly for FS24X, FS20X, SS4, SS2 detectors

  • PSU-12 Universal charger for Fire Sentry Test Lamps and Interface Kits. For 110-240 VAC with international plugs

  • TL-2055 IR Test lamp for testing FSX detectors, explosion proof version. Incl universal charger

  • TL-1055 IR Test lamp for testing FSX detectors, non-explosion proof version. Incl universal charger

  • SH-001 Sunshield for SS2, SS4 & FS24X Detectors, 316 Stainless Steel

  • FSX-A001 FSX Interface Kit with Interface Module, RS485 Cable, USB Cable, Power Adapter and Windows PC Software

  • FSX-A002 FSX Interface Module with RS485 Cable

  • FSX-A014R Optional Registered HART Module for FS24X Detectors
Spare Parts
  • FS24X-211-10 Use FS24X-911-10 (below)

  • FS24X-911-10 Replacement Electronics Module for 911 and 211 Series standard temperature range detector

  • FS24X-911-10-6 Replacement Electronics Module for 911 (90° FoV)Series standard temperature range detector. EN54-10.

  • FS24X-212-10 Use FS24X-912-10 (below)

  • FS24X-912-10 Electronics Module with Registered HART Communication for 911 and 211 series.

  • FSX-A006 Replacement IR Bulb for TL1055 and TL2055
