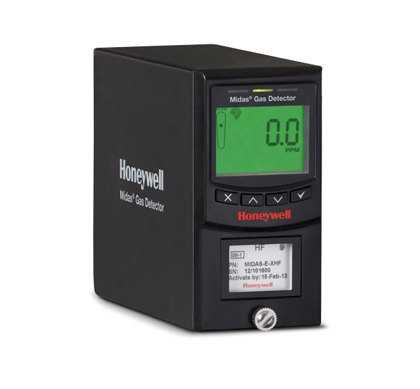

Honeywell Analytics Midas Gas Detector


The Midas Gas Detector by Honeywell Analytics uses reliable sensor technology to detect the many key toxic ambient and the flammable gases in a plant. The device monitor points up to 100 feet (30 meters) away while using patented technology to regulate flow rates and ensure gas detection error-free. Use of advanced robotics, the Midas Gas Detector use of advanced robotics thanks to Honeywell’s offers unbeatable quality and reliability.

Improved visibility and ease of use: The Midas Gas Detector is equipped with bright LED lights and an interactive interface, intuitive and that provides instant alerts as alarm levels to gas readings. Also included in the interface is the protected menus as password for calibration, tests and configuration.

Easy installation: Compact in size with a metal chassis that is easy-to-handle, the Midas Gas Detector is simple to install. This is especially important owing to the crowded, complex process environments where space is at a premium.

The Numerous applications: This includes aerospace, light industrial manufacturing, semiconductor processing, waste water, university laboratories and more.

Features & Benefits

  Detects more than 35 gases error-free
  Improved visibility and ease of use
  Easy installation

Quick Specs

  Flow Rate: 500 mL/min
  Transport Time: 2 to 30 seconds maximum
  Sample Line Tubing: 0.125 in ID x 0.25 in OD

Honeywell Analytics Midas Gas Detector


Brochure
Specifications
Quick Start Guide
Operating Instructions

Ordering Information


Midas® Extractive Transmitter for Universal Gas Detection

MIDAS-T-004 Midas® Extractive Transmitter (Generation 2)

Pyrolyzer Module for NF3 Gas Detection

MIDAS-T-00P Midas® Pyrolyzer Module

Midas® High Temperature Pyrolyzer Module

MIDAS-T-0P3 Midas® High Temperature Pyrolyzer Module

LonWorks Module for Midas® Transmitter Connection

MIDAS-T-LON Midas® LonWorks Interface Module

Quad LonWorks Module for External Transmitter Connection

MIDAS-A-035 Midas® Quad LonWorks Module

Midas® Sensor Cartridges

MIDAS-S-NH3 Ammonia (NH3)
MIDAS-S-ASH Arsine (AsH3), Germane (GeH4)
MIDAS-S-HCL Boron Trichloride (BCl3), Dichlorosilane (H2Cl2Si), Hydrogen Bromide (HBr) Hydrogen Chloride (HCl)
MIDAS-S-HFL Boron Trfluoride (BF3), Hydrogen Fluoride HF (low level), Tungsten Hexafluoride (WF6) (Low)***
MIDAS-S-HFX Boron Trifluoride (BF3), Hydrogen Fluoride (HF), Nitrogen Trifluoride (NF3)* Tungsten Hexafluoride (WF6)
MIDAS-S-BR2 Bromine (Br2), Chlorine Dioxide (ClO2)
MIDAS-S-COX Carbon Monoxide (CO)
MIDAS-S-HAL Chlorine (Cl2), Fluorine (F2)
MIDAS-S-B2H Diborane (B2H6)
MIDAS-S-H2X Hydrogen (H2)
MIDAS-S-HCN Hydrogen Cyanide (HCN)
MIDAS-S-H2S Hydrogen Sulphide (H2S)
MIDAS-S-LEL Hydrogen (H2), Methane (CH4)
MIDAS-S-NOX Nitric Oxide (NO)
MIDAS-S-NO2 Nitrogen Dioxide (NO2)
MIDAS-S-O2X Oxygen (O2)
MIDAS-S-O3X Ozone (O3)
MIDAS-S-O3H Ozone (O3) (high Level)
MIDAS-S-PH3 Phosphine (PH3)
MIDAS-S-SHL Silane (SiH4) (Low Level)
MIDAS-S-SHX Silane (SiH4), Disilane (Si2H6)
MIDAS-S-SO2 Sulphur Dioxide (SO2)
MIDAS-S-TEO TEOS
MIDAS-S-XCF Difluoromethane (CH2F2), Hexafluorobutadiene (C4F6)**, Octofluorocyclopentene (C5F8)**, 0-40 ppm, 0-240 ppm, 0-40 ppm
MIDAS-S-XHF Nitrogen Trifluoride (NF3)*, Methyl Fluoride (CH3F)**, 0-40ppm, 0-120ppm
MIDAS-E-NH3 Ammonia (NH3) 9-100 ppm
MIDAS-E-ASH Arsine (AsH3), Germane (GeH4) 18-200 ppb 70-800 ppb
MIDAS-E-HCL Boron Trichloride (BCl3), Dichlorosilane (H2Cl2Si), Hydrogen Bromide (HBr), Hydrogen Chloride (HCl) 0.72-8 ppm
MIDAS-E-HFU Hydrogen Fluoride (HF), Tungsten Hexafluoride (WF6) 0.42-2 ppm 0.22-2 ppm
MIDAS-E-HFL Boron Trfluoride (BF3), Hydrogen Fluoride HF (low level), Tungsten Hexafluoride (WF6) (Low)*** 0.18-2 ppm
MIDAS-E-HFX Boron Trifluoride (BF3), Hydrogen Fluoride (HF), Nitrogen Trifluoride (NF3)* Tungsten Hexafluoride (WF6) 0.72-8 ppm 1.05-12 ppm 3.6-40 ppm 1.05-12 ppm
MIDAS-E-BR2 Bromine (Br2), Chlorine Dioxide (ClO2) 0.036-0.4 ppm
MIDAS-E-CFX Difluoromethane (CH2F2), Hexafluorobutadiene (C4F6)**, Methyl Fluoride (CH3F)**, Octofluorocyclopentene (C5F8)**, 16-240 ppm 3-40 ppm 8-120 ppm 3-40 ppm
MIDAS-E-CFH Hexafluorobutadiene (C4F6)** 7.2-80 ppm
MIDAS-E-COX Carbon Monoxide (CO) 9-100 ppm
MIDAS-E-HAL Chlorine (Cl2) Fluorine (F2)" 0.18-2 ppm 0.36-4 ppm
MIDAS-E-B2H Diborane (B2H6) 0.036-0.4 ppm
MIDAS-E-H2X Hydrogen (H2) 90-1000 ppm
MIDAS-E-HCN Hydrogen Cyanide (HCN) 1.8-20 ppm
MIDAS-E-H2S Hydrogen Sulphide (H2S) 3.6-40 ppm
MIDAS-E-LEL Hydrogen (H2), Methane (CH4) 6.5-100% LEL
MIDAS-E-NOX Nitric Oxide (NO) 9-100 ppm
MIDAS-E-NO2 Nitrogen Dioxide (NO2) 1.05-12 ppm
MIDAS-E-O2X Oxygen (O2) 0.2-25% v/v
MIDAS-E-O3X Ozone (O3) 0.036-0.4 ppm
MIDAS-E-O3H Ozone (O3) High Level) 0.036-0.7 ppm
MIDAS-E-PH3 Phosphine (PH3) 110-1200 ppb
MIDAS-E-SHL Silane (SiH4) (Low Level) 0.18-2 ppm
MIDAS-E-SHX Silane (SiH4), Disilane (Si2H6) 1.8-20 ppm
MIDAS-E-SO2 Sulphur Dioxide (SO2) 0.7-8 ppm
MIDAS-E-TEO TEOS 3.6-40 ppm
MIDAS-E-XCF Difluoromethane (CH2F2), Hexafluorobutadiene (C4F6)**, Octofluorocyclopentene (C5F8)** 0-40 ppm 0-240 ppm 0-40 ppm
MIDAS-I-CO2 Carbon Dioxide IR cartridge 0.15-5.0%, 0.15%-0,2% v/v
MIDAS-I-N2O Nitrous Oxide IR cartridge 100-1000 ppm
MIDAS-E-XHF Nitrogen Trifluoride (NF3)*, Methyl Fluoride (CH3F)** 0-40ppm 0-120ppm

Midas® Transmitter and Sensor Cartridge Kits

MIDAS-K-NH3 Ammonia (NH3) 9-100 ppm
MIDAS-K-ASH Arsine (AsH3), Germane (GeH4) 18-200 ppb 70-800 ppb
MIDAS-K-HCL Boron Trichloride (BCl3), Dichlorosilane (H2Cl2Si), Hydrogen Bromide (HBr), Hydrogen Chloride (HCl) 0.72-8 ppm
MIDAS-K-HFU Hydrogen Fluoride (HF), Tungsten Hexafluoride (WF6) 0.42-2 ppm 0.22-2 ppm
MIDAS-K-HFX Boron Trifluoride (BF3), Hydrogen Fluoride (HF), Nitrogen Trifluoride (NF3)*, Tungsten Hexafluoride (WF6) 0.72-8 ppm 1.05-12 ppm 3.6-40 ppm 1.05-12 ppm
MIDAS-K-HFL Boron Trfluoride (BF3), Hydrogen Fluoride HF (low level), Tungsten Hexafluoride (WF6) (Low)*** 0.18-2 ppm
MIDAS-K-BR2 Bromine (Br2), Chlorine Dioxide (ClO2) 0.036-0.4 ppm
MIDAS-K-CFX Difluoromethane (CH2F2), Hexafluorobutadiene (C4F6)**, Methyl Fluoride (CH3F)**, Octofluorocyclopentene (C5F8)**, 16-240 ppm 3-40 ppm 8-120 ppm 3-40 ppm
MIDAS-K-COX Carbon Monoxide (CO) 9-100 ppm
MIDAS-K-HAL Chlorine (Cl2), Fluorine (F2) 0.18-2 ppm 0.36-4 ppm
MIDAS-K-B2H Diborane (B2H6) 0.036-0.4 ppm
MIDAS-K-H2X Hydrogen (H2) 90-1000 ppm
MIDAS-K-HCN Hydrogen Cyanide (HCN) 1.8-20 ppm
MIDAS-K-H2S Hydrogen Sulphide (H2S) 3.6-40 ppm
MIDAS-K-LEL Hydrogen (H2), Methane (CH4) 6.5-100% LEL
MIDAS-K-NOX Nitric Oxide (NO) 9-100 ppm
MIDAS-K-NO2 Nitrogen Dioxide (NO2) 1.05-12 ppm
MIDAS-K-O2X Oxygen (O2) 0.2-25% v/v
MIDAS-K-O3X Ozone (O3) 0.036-0.4 ppm
MIDAS-K-O3H Ozone (O3) (High Level) 0.036-0.7 ppm
MIDAS-K-PH3 Phosphine (PH3) 110-1200 ppb
MIDAS-K-SHL Silane (SiH4) (Low Level) 0.18-2 ppm
MIDAS-K-SHX Silane (SiH4), Disilane (Si2H6) 1.8-20 ppm
MIDAS-K-SO2 Sulphur Dioxide (SO2) 0.7-8 ppm
MIDAS-K-TEO TEOS

Accessories and Options

1283K1090 Duct Adapter for 1/4" O.D. tubing for 4-16" round ducts
0235-0128 Flexible Conduit 21" - length
0235-0163 Flexible Conduit 27" - length
0310-2055 Flexible Conduit 36" - length
MIDAS-A-001 Midas® Operating Manual and Quick Start Guide (English)
MIDAS-A-010 Replacement RJ45 restraining strap
MIDAS-A-030 Single point POE power injector for 1 Midas® (US power cord)
MIDAS-A-011 8 Port POE switch (120VAC) for 3 MIDAS or 2 Midas®/Pyrolyzer units
MIDAS-A-032 Midas® "L" Bracket for Vertical Mounting
MIDAS-A-033 Midas® Optional Weather Shield for MIDAS "L" Bracket
MIDAS-A-036 Midas® DIN Rail Mounting Kit
MIDAS-A-039 Ventilated Midas® Top Cover for Pyrolyzer Applications
MIDAS-A-102 Midas® Generation 1 Replacement Cover (Black)
MIDAS-A-103 Midas® Vented Cover (Black) Generation 2

Sample Tubing

1991-0136 Inlet Tubing, FEP Teflon 100' 1/4 x 1/8
1991-0137 Exhaust Tubing, Poly 100' 1/4" OD
MIDAS-A-031 Top access tubing adaptor for Midas® inlet connector

Consumables

MIDAS-A-007 Replacement Midas® internal sample pump and mounting bracket
MIDAS-A-009 Replacement Internal Air Filter for Midas® Universal Gas Detector
1830-0080 Freon Filter for NF3 Pyrolyzing Gas Detector (extended life). Note: Not for use with C4F6, C5F8, CH3F, CH2F2 pyrolyzers
1830-0027 Freon Filter for NF3 Pyrolyzing Gas Detector. Note: Not for use with C4F6, C5F8, CH3F, CH2F2 pyrolyzers
780248 End of Line Particulate Filter. For use as End of Line filter for Non-Corrosive gases
1830-0055 End of Line Particulate Filter for Corrosive Gases, Reusable. This reusable filter housing provides protection against particulate build up in the sample line when monitoring for Corrosive Gases. Replaceable filter element (P/N 0235-1072) purchased separately
1991-0147 End of Line Particulate Filter for Corrosive Gases, Disposable. This disposable filter provides protection against particulate build up in the sample line when monitoring for Corrosive Gases
0235-0095 Union Fitting - use to connect disposable filter to end of line



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
