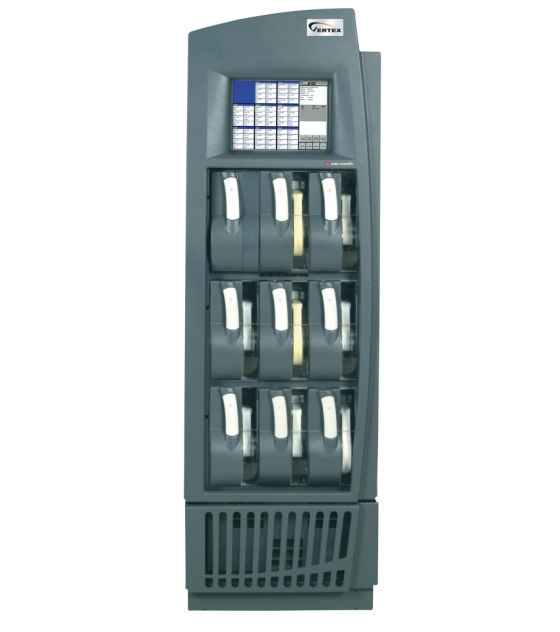

Honeywell Analytics Vertex Multi-Point Toxic Gas Monitoring System


Capable of monitoring up to 72 points with 9 analysers, the Vertex by Honeywell Analytics is a continuous hazardous gas monitor that is cost effective.

Able to be routed to more than one analyser, the sampling points can be up to 400 feet (121m) from the monitor.

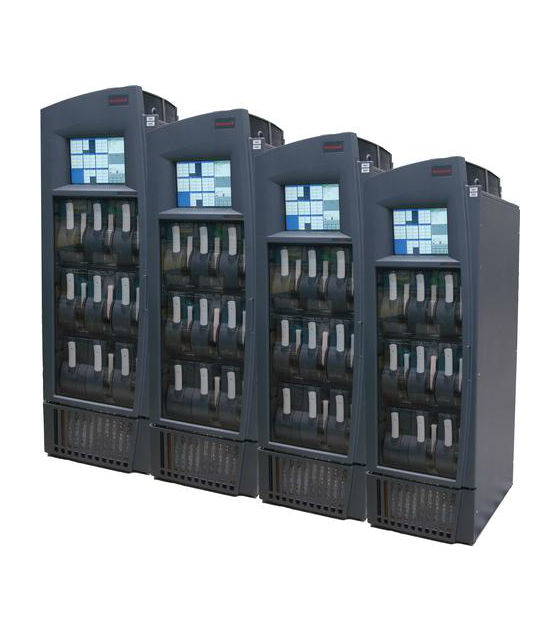

The rack can be expanded up to 72 points and is supplied ready for in-field expansion. The rack also has redundant pumps and power supplies for increased up-time. The data acquisition center has hot swappable RAID hard drives and an anti-glare LCD touchscreen.

Honeywell Analytics have designed the Vertex to be able to house nine (9) universal Chemcassette analysers, or for three (3) Pyrolyzer analysers and three (3) Universal Chemcassette analysers.

Over 40 different gases are available to detect and each 8-point Chemcassette analyser is user configurable to the desired gas family/type. There are numerous optional communication capabilities suitable for the Vertex including LonWorks, DeviceNet, Profibus, ControlNet, Modbus Plus, DF1 interface which is configurable for RS 485, RS 422 or RS 232.

The following parts need to be ordered in order to build a complete system:

  1. Base rack
  2. Analysers
  3. Optional components
  4. Installation items
  5. Chemcassette(s) needed for each analyser (See Chemcassette) section)

There are also optional components available, including:

  Chemcam
  Keyboard kit
  Output relays (non-isolated or isolated)
  LonWorks
  DeviceNet
  ControlNet
  Ethernet/CIP
  Modbus Plus
  Modbus/TCP
  Profibus
  DF1 Interface
  Remote software
  Line integrity test

Features & Benefits

  Touch screen for easy data access
  Low cost of ownership with Chemcassettes
  One systems monitors up to 9 gas families/more than 40 gases


Brochure

Ordering Information


Vertex Base Rack Enclosure

1290-0019 Vertex™ Base Rack Enclosure: This enclosure contains the data acquisition center, redundant pumps and power supplies, touch screen keyboard, all cable management and ancillary support necessary to install up to nine (9) Analysers, and an accessory kit. Accessory kit includes backup CDs of all appropriate software, electronic manual, installation drawings, auxiliary analyser key and 50 feet (15m) of exhaust tubing. This unit should be ordered with one of the relay or serial communications.

Vertex Analysers

1291-1001 Universal Chemcassette analyser: Each analyser can monitor up to eight (8) sample points. Note: The analyser does not include a Chemcassette. For each analyser order the appropriate Chemcassette.
1291-2001 230V Pyrolyzer analyser (to be ordered with new systems): This monitor is specially designed to detect Nitrogen Trifluoride (NF3) via conversion to Hydrogen Fluoride (HF) by an integral pyrolyzer. Each analyser can monitor up to eight (8) sample points. The selection of each Pyrolyzer analyser takes the place of two (2) adjoining Chemcassette analysers. A maximum of three (3) Pyrolyzer analysers can be put into one rack. This Pyrolyzer analyser can only be installed in the new enclosure (Part Number 1290-0019). Note: For each analyser order the appropriate Chemcasssette.
1291-2000 Pyrolyzer analyser: This monitor is specially designed to detect Nitrogen Trifluoride (NF3) via conversion to Hydrogen Fluoride (HF) by an integral pyrolyzer. Each analyser can monitor up to eight (8) sample points. The selection of each Pyrolyzer analyser takes the place of two (2) adjoining Chemcassette analysers. A maximum of three (3) Pyrolyzer analysers can be put into one rack. This Pyrolyzer analyser is only to be ordered for analyser expansion of the older syle enclosures (P/N 1290- 0300 and 1290-0302). Note: The analyser does not include a Chemcassette. Order the appropriate Chemcasssette.

Vertex Low Level HF Activation

1295-0541 Low Level Hydrogen Fluoride (HF) Licensed Activation, per rack (for countries requiring a license)
1290-0084 Low Level Hydrogen Fluoride (HF) Licensed Activation, per rack (for countries not requiring license)

Serial Communications Interfaces

1295-0329 DeviceNet Interface Option
1295-0328 LonWorks Interface Option
1295-0343 DF1 Interface Option
1295-0275 Profibus Adapter Option
1295-0330 Modbus Plus Interface Option (Note: Not compatible with Modbus/RTU)
1295-0394 ControlNet Interface Option
1295-0519 Ethernet/CIP Communications Option
1295-0520 Modbus/TCP Communications Option

Relay Options

1290-0020 16 Channel Relay Option (must be ordered with new style enclosure [P/N1290-0019]). Total of 176 factory installed and field programmable Form A relays. Within each group of eight relays one side connected to a common terminal
1290-0021 8 Channel Relay (isolated) Option (must be ordered with new style enclosure [P/N1290-0019]). Total of 88 factory installed and programmable. Each contact totally isolated
1290-0014 16 Channel Relay Option (only used with old style enclosures P/N 1290-0300 or 1290-0302). Factory installed and programmable. Within each group of eight relays one side connected to a common terminal
1290-0015 8 Channel Relay (isolated) Option (only used with old style enclosures P/N 1290-0300 or 1290-0302). Factory installed and programmable. Each contact totally isolated

Remote Software Options

1295-0344 Active Display Server: Provides the capability to connect one or more remote PCs to the Vertex™ for remote viewing and/or control of Vertex activity. This software is installed on the Vertex™ and is required to enable any of the options below. (One required for each Vertex for remote operation)
1295-0233 Active Display Floating Client Full Control License: Provides the capability to view and control Vertex activity from one remote location at a time. Same as above except that writing to the Vertex™ is enabled. (Must order with 1295-0344)

Chemcam

1295-0230 Chemcam (One per analyser) Note: Must be factory installed
1295-0401 Chemcam rack kit (One required per rack, for any Chemcam installation) Note: Recommended Factory install

Sample Line Integrity

1295-0510 Line integrity kit for the Vertex™ gas monitor system enabling automatic scheduled pressure test of each sample line for integrity check. Kit includes software license per separate analyser and 8 check valves and associated accessories per analyser unit. Note: A separate line integrity kit needs to be ordered for each analyser in each Vertex™ rack; price does not include labor to install check valves at client site.

Miscellaneous Options

1295-0229 Floor mounting option
1295K0523 Pack (25) stoppers for unused sample ports on top manifold of Vertex and Vertex MTM
1295-0322 Manifold, 4-Port
1295-0261 Keyboard kit (old style enclosures P/N 1290-0300 or 1290-0301)
1295-0484 Keyboard kit - new style enclosure

Accessories

1295-0528 External-mount AC Connection Junction Box
0060-1020 Transformer 480/230 VAC 60 Hz, 5 KVA
0060-1021 Transformer 208/240 VAC 60 Hz, 5 KVA
1998M0391 Vertex Technical Handbook on CD-ROM

Sample Tubing

0235-0157 Tubing, FEP Teflon 0.156" I.D.x 0.250" O.D. - 400 ft roll (121m) Standard Tubing for Vertex MTM Sample lines. The FEP Teflon (medium wall) tubing is less prone to kinking when turning a corner. The smaller I.D. means improved transport time over thin wall tubing
102628 Tubing, FEP Teflon 0.190" I.D. x 0.250" O.D - 400 ft roll (121m) Alternate tubing for Vertex samples lines. Used with Vertex MTM where longer sample line length for multiple analysers are required. Consult the transport time chart in the Vertex Technical Handbook for additional information
0235-0109 Tubing, FEP Teflon 0.190"" I.D. x 0.250"" O.D. - 1000 ft roll (304m) Alternate tubing for Vertex samples lines. Used with Vertex MTM where longer sample line length for multiple analysers are required. Consult the transport time chart in the Vertex Technical Handbook for additional information

Duct Adapters

1283K1090 Duct Adapter for 1/4" O.D. tubing for 4-16" round ducts

External Interferent Filters

780248 End of line particulate filter. For use as end of line filter for non-corrosive gases £11.00 1991-0147 End of line particulate filter for corrosive gases, disposable. This disposable filter provides protection against particulate build up in the sample line when monitoring for corrosive gases
1830-0055 End of line particulate filter for corrosive gases, reusable. This reusable filter housing provides protection against particulate build up in the sample line when monitoring for corrosive gases. Replaceable filter element (P/N 0235-1072) purchased separately
0235-0095 Union fitting - use to connect disposable filter to end of line
0235-1072 Replacement "corrosive" filter elements (pk 100). For use in 1830-0055 filter housing

External Particulate Filters

1295K0497 H2S in line scrubber filter (1 per individual inlet line). Up to 3 months use.



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
