Honeywell Analytics Searchline Excel Infrared Open Path Flammable Gas Detector


Excel is a hazardous area certified flammable infrared open path gas detector. Open path infrared gas detectors are ideal for applications in the harshest environments where reliability and performance are of upmost importance. Excel provides the widest area of coverage, very high speed of response and no unseen failure modes.

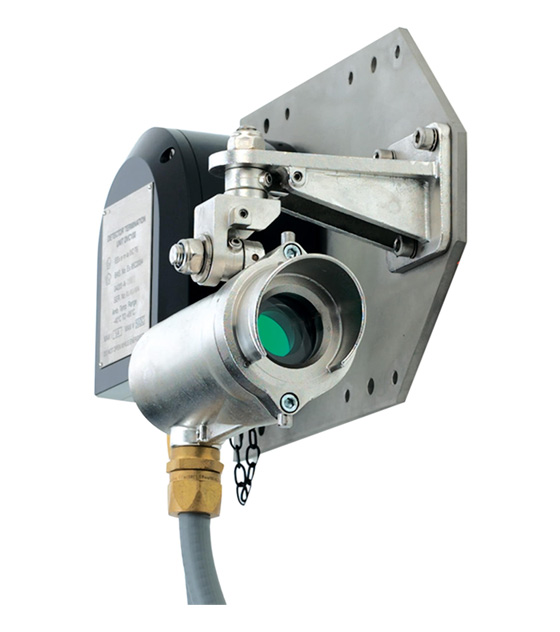

Excel comprises of a Transmitter and Receiver that are mounted at each end of the path to be monitored. Three versions are available: Short Range (5-40m), Medium Range (40-120m) and Long Range (120-200m). Hazardous area approvals include European (ATEX), North Amercian (UL) and Canadian (CSA). Receiver output is 3 wire 4-20mA selectable sink or source.

Please note that Searchline Excel CSA covers on Methane-calibrate versions.

The DX termination unit (UL only) provides convenient mounting and field wiring connections as well as an intrinsically safe connection socket for the Handheld Interrogator. Additionally, the DX termination unit (UL only) allows for a multi drop Modbus RS485 interface. The Handheld Interrogator is a commissioning / maintenance tool and is certified for use in hazardous areas. For the direct connection to the Excel system, the SHC protection device module must be used.



Data Sheet
Technical Handbook
Searchline Excel Performs Through Water Curtain
Gas Book Americas

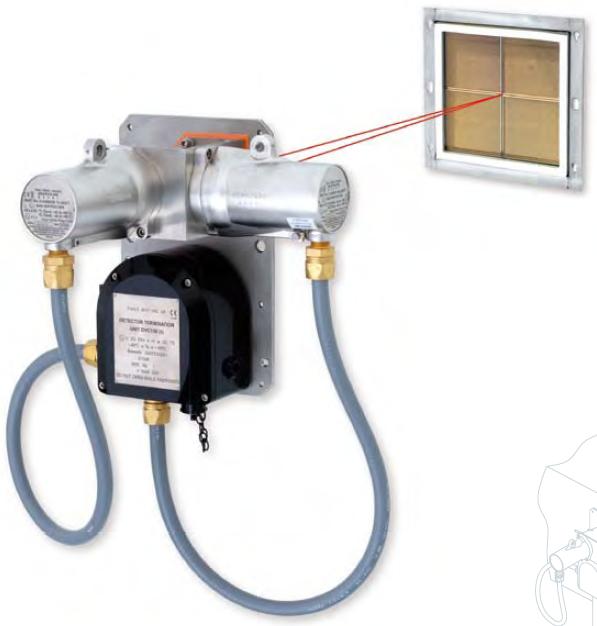

Reflex Technology
Searchline Excel Spec Sheet
Fixed-Point Industrial Fire and Gas Detection Brochure
Fire and Gas Detection for the Petrochemical Industry Brochure
Searchline Excel Cross Duct Installation Guide
Searchline Excel Installation Guide
Searchline Excel Reflector Panel Heater Installation Guide
Engineering Specifications

Commissioning of the system is performed using an alignment kit that includes a handheld interrogator, telescope, carry case and test filters. Other accessories include a deluge shield/sunshade, gassing cell, and handheld interrogator protection device.

A calibration has to be ordered with every Searchline Excel.

Sample and reference detector alignment

  Reduced sensitivity to alignment
  Guaranteed performance
  Reduced sensitivity to partial obscuration

Improved handheld software

  Simple confirmation of alignment
  Visual indication of target and current signal levels
  Compatible with existing systems

Improved telescope

  High Power Rifle Telescope
  Easier to align with greater zoom and magnification
  Robust shock resistant design

Part Numbers

Excel Short Range 5m – 40m (15ft - 130ft)

02104-N-4014 Excel line-of-sight gas detection system, short range (5 to 40m), 4 to 20mA (source) and Modbus outputs, ATEX/IECEx, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, 2 x Ex e junciton boxes with M20/M25 cable entries, 316SS mounting plates, brackets and hardware

02104-N-4044 Excel line-of-sight gas detection system, short range (5 to 40m), 4 to 20mA (sink) and Modbus outputs, ATEX/IECEx, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, 2 x Ex e junciton boxes with M20/M25 cable entries, 316SS mounting plates, brackets and hardware

02104-N-5012 Excel line-of-sight gas detection system, short range (5 to 40m), 4 to 20mA (source) and Modbus outputs, UL, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, DX100 termination unit and junction box, 3/4"NPT cable entries, 316SS mounting plates, brackets, hardware and sunshade finished with white painted finish.

02104-N-5042 Excel line-of-sight gas detection system, short range (5 to 40m), 4 to 20mA (sink) and Modbus outputs, UL, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, DX100 termination unit and junction box, 3/4"NPT cable entries, 316SS mounting plates, brackets, hardware and sunshade finished with white painted finish.

02104-N-6012 Excel line-of-sight gas detection system, short range (5 to 40m), 4 to 20mA (source) and Modbus outputs, FM/CSA, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, DX100 termination unit and junction box, 3/4"NPT cable entries, 316SS mounting plates, brackets, hardware and sunshade finished with white painted finish.

02104-N-6042 Excel line-of-sight gas detection system, short range (5 to 40m), 4 to 20mA (sink) and Modbus outputs, FM/CSA, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, DX100 termination unit and junction box, 3/4"NPT cable entries, 316SS mounting plates, brackets, hardware and sunshade finished with white painted finish.

02104-N-7012 Excel line-of-sight gas detection system, short range (5 to 40m), 4 to 20mA (source) and Modbus outputs, INMETRO, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, DX100 termination unit and junction box, 3/4"NPT cable entries, 316SS mounting plates, brackets, hardware and sunshade finished with white painted finish.

02104-N-7042 Excel line-of-sight gas detection system, short range (5 to 40m), 4 to 20mA (sink) and Modbus outputs, INMETRO, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, DX100 termination unit and junction box, 3/4"NPT cable entries, 316SS mounting plates, brackets, hardware and sunshade finished with white painted finish.

02104-N-NSNM Excel line-of-sight gas detection system. Short range (5 to 40m), 4 to 20mA output, ATEX/IECEx, DNV, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, 316SS maritime mounting plates, brackets and hardware. Order XNX and junction boxes to be separately.

02104-N-4814 Excel line-of-sight gas detection system, short range (5 to 40m), 4 to 20mA (source) and Modbus outputs, CU-TR Ex, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, 316SS mounting plates, brackets and hardware

02104-N-4844 Excel line-of-sight gas detection system, short range (5 to 40m), 4 to 20mA (sink) and Modbus outputs, CU-TR Ex, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, 316SS mounting plates, brackets and hardware

Excel Medium Range 40m – 120m (130ft - 390ft)

02104-N-4024 Excel line-of-sight gas detection system, medium range (40 to 120m), 4 to 20mA (source) and Modbus outputs, ATEX/IECEx, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, 2 x Ex e junciton boxes with M20/M25 cable entries, 316SS mounting plates, brackets and hardware

02104-N-4054 Excel line-of-sight gas detection system, medium range (40 to 120m), 4 to 20mA (sink) and Modbus outputs, ATEX/IECEx, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, 2 x Ex e junciton boxes with M20/M25 cable entries, 316SS mounting plates, brackets and hardware

02104-N-5022 Excel line-of-sight gas detection system, medium range (40 to 120m), 4 to 20mA (source) and Modbus outputs, UL, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, DX100 termination unit and junction box, 3/4"NPT cable entries, 316SS mounting plates, brackets, hardware and sunshade finished with white painted finish.

02104-N-5052 Excel line-of-sight gas detection system, medium range (40 to 120m), 4 to 20mA (sink) and Modbus outputs, UL, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, DX100 termination unit and junction box, 3/4"NPT cable entries, 316SS mounting plates, brackets, hardware and sunshade finished with white painted finish.

02104-N-6022 Excel line-of-sight gas detection system, medium range (40 to 120m), 4 to 20mA (source) and Modbus outputs, FM/CSA, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, DX100 termination unit and junction box, 3/4"NPT cable entries, 316SS mounting plates, brackets, hardware and sunshade finished with white painted finish.

02104-N-6052 Excel line-of-sight gas detection system, medium range (40 to 120m), 4 to 20mA (sink) and Modbus outputs, FM/CSA, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, DX100 termination unit and junction box, 3/4"NPT cable entries, 316SS mounting plates, brackets, hardware and sunshade finished with white painted finish.

02104-N-7022 Excel line-of-sight gas detection system, short range (5 to 40m), 4 to 20mA (source) and Modbus outputs, INMETRO, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, DX100 termination unit and junction box, 3/4"NPT cable entries, 316SS mounting plates, brackets, hardware and sunshade finished with white painted finish.

02104-N-7052 Excel line-of-sight gas detection system, short range (5 to 40m), 4 to 20mA (sink) and Modbus outputs, INMETRO, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, DX100 termination unit and junction box, 3/4"NPT cable entries, 316SS mounting plates, brackets, hardware and sunshade finished with white painted finish.

02104-N-4824 Excel line-of-sight gas detection system, medium range (40 to 120m), 4 to 20mA (source) and Modbus outputs, CU-TR Ex, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, 316SS mounting plates, brackets and hardware

02104-N-4854 Excel line-of-sight gas detection system, medium range (40 to 120m), 4 to 20mA (sink) and Modbus outputs, CU-TR Ex, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, 316SS mounting plates, brackets and hardware

Excel Long Range 120m – 200m (390ft - 650ft)

02104-N-4034 Excel line-of-sight gas detection system, long range (120 to 200m), 4 to 20mA (source) and Modbus outputs, ATEX/IECEx, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, 2 x Ex e junciton boxes with M20/M25 cable entries, 316SS mounting plates, brackets and hardware

02104-N-4064 Excel line-of-sight gas detection system, long range (120 to 200m), 4 to 20mA (sink) and Modbus outputs, ATEX/IECEx, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, 2 x Ex e junciton boxes with M20/M25 cable entries, 316SS mounting plates, brackets and hardware

02104-N-5032 Excel line-of-sight gas detection system, long range (120 to 200m), 4 to 20mA (source) and Modbus outputs, UL, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, DX100 termination unit and junction box, 3/4"NPT cable entries, 316SS mounting plates, brackets, hardware and sunshade finished with white painted finish.

02104-N-5062 Excel line-of-sight gas detection system, long range (120 to 200m), 4 to 20mA (sink) and Modbus outputs, UL, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, DX100 termination unit and junction box, 3/4"NPT cable entries, 316SS mounting plates, brackets, hardware and sunshade finished with white painted finish.

02104-N-6032 Excel line-of-sight gas detection system, long range (120 to 200m), 4 to 20mA (source) and Modbus outputs, FM/CSA, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, DX100 termination unit and junction box, 3/4"NPT cable entries, 316SS mounting plates, brackets, hardware and sunshade finished with white painted finish.

02104-N-6062 Excel line-of-sight gas detection system, long range (120 to 200m), 4 to 20mA (sink) and Modbus outputs, FM/CSA, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, DX100 termination unit and junction box, 3/4"NPT cable entries, 316SS mounting plates, brackets, hardware and sunshade finished with white painted finish.

02104-N-7032 Excel line-of-sight gas detection system, long range (120 to 200m), 4 to 20mA (source) and Modbus outputs, INMETRO, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, DX100 termination unit and junction box, 3/4"NPT cable entries, 316SS mounting plates, brackets, hardware and sunshade finished with white painted finish.

02104-N-7062 Excel line-of-sight gas detection system, long range (120 to 200m), 4 to 20mA (sink) and Modbus outputs, INMETRO, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, DX100 termination unit and junction box, 3/4"NPT cable entries, 316SS mounting plates, brackets, hardware and sunshade finished with white painted finish.

02104-N-4834 Excel line-of-sight gas detection system, long range (120 to 200m), 4 to 20mA (source) and Modbus outputs, CU-TR Ex, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, 316SS mounting plates, brackets and hardware

02104-N-4864 Excel line-of-sight gas detection system, long range (120 to 200m), 4 to 20mA (sink) and Modbus outputs, CU-TR Ex, fully wired with flexibleconduit, electro polished 316SS. Includes Tx, Rx, 316SS mounting plates, brackets and hardware

Gas Calibrations

2104D5026 METHANE / LELM
2104D5002 ETHANE / LELM
2104D5003 PROPANE / LELM
2104D5004 BUTANE / LELM
2104D5005 PENTANE / LELM
2104D5021 ETHYLENE / LELM
2104D5022 PROPYLENE / LELM
2104D5023 BUTADIENE / LELM

Alignment Kits

02104-N-4006 Short range alignment and conformity kit including handheld interrogator, telescope, carry case and test filters for ATEX approved systems

02104-N-4007 Long and medium range alignment and conformity kit including handheld interrogator, telescope, carry case and test filters for ATEX approved systems

02104-N-5006 Short range alignment and conformity kit including handheld interrogator, telescope, carry case and test filters for UL approved systems

02104-N-5007 Long and medium range alignment and conformity kit including handheld interrogator, telescope, carry case and test filters for UL approved systems

02104-N-6006 Short range alignment and conformity kit including handheld interrogator, telescope, carry case and test filters for CSA approved systems

02104-N-6007 Long and medium range alignment and conformity kit including handheld interrogator, telescope, carry case and test filters for CSA approved systems

Handheld Interrogator and accessories

04230-A-1001 Hand Held Interrogator ATEX Certified (4V0 software) for Optima, Optima Plus and Excel
2104B2351 Hand Held Interrogator UL Certified (4V0 software) for Optima, Optima Plus and Excel
2104B2354 Hand Held Interrogator CSA Certified (4V1 software) for Optima, Optima Plus and Excel
2108B1455 Hand Held EEPROM upgrade (4V0)
04230-A-1025 SHC protection device module and lead
2104B6250 SHC Calibrator Connector System 10m

Termination Units

00780-A-0100 Honeywell Junction Box- Bartec OTB122 With Continuity Plate 1 X 25mm - 3 X 20mm Entries - ATEX Approved
157-001-121 Stainless Steel (316) Junction Box, ATEX Ex d Zone1, 1xM20 & 1xM20 @90°
157-001-122 Stainless Steel (316) Junction Box, 2xM20 & 1xM25
2104B2382 DX100M XP Termination Unit UL with Modbus capability

Installation Accessories

2104D0295 Sun/Heat Shade (Deluge Cover)
2992A0071 Conduit Assembly for Excel UL certified
0230-0069 Stainless Steel enclosure NEMA 4X 3/4" NPT UL
90083-A-8055 Excel Kit 4 off 6" U-Bolts x M8 C/W Nuts and Washers 316SST. For Use with Standard Mounting Plate
90083-A-8034 2 x 2" U-Bolts x M6 C/W Nuts and Washers 316SST (Note: Please order 4 pcs per Excel)
90082-A-5020 Excel SR snow cover
90082-A-5024 Excel MR / LR snow cover
RDU300504 Reducer, ATEX, Ex d e, 316SS, M25 (male) to M20 (female)
RDU303029 Reducer, ATEX, Ex d e, 316SS, 3/4"NPT (male) to 1/2"NPT (female)
RDU303004 Reducer, ATEX, Ex d e, 316SS, 3/4"NPT (male) to M20 (female)
ADU300530 Adaptor, ATEX, Ex d e, 316SS, M25 (male) to 3/4"NPT (female)
ADU300429 Adaptor, ATEX, Ex d e, 316SS, M20 (male) to 1/2"NPT (female)
RDU300529 Reducer, ATEX, Ex d e, 316SS, M25 (male) to 1/2"NPT (female)

Gas Test Equipment

2104N2999 Excel Test filters kit & Manual
2104B2326 Gassing Cell

Spares

2104B2391 Short Range Telescope (bayonet fitting)
2104B2322 Medium / Long Range Telescope (callipers)
2104B0300 Searchline Excel Isolation Kit Short Range
2104B0310 Searchline Excel Isolation Kit Medium/Long Range
2104B2301 Mounting Bracket Short Range & Insul. Kit
2104B2302 Mounting Bracket Long Range & Insul. Kit
2104D0237 Mounting Plate
2104B2071 Short Range Transmitter ATEX
2104B2081 Medium Range Transmitter ATEX
2104B2091 Long Range Transmitter ATEX
2104B2111 Short Range Receiver ATEX Source
2104B2112 Short Range Receiver ATEX Sink
2104B2131 Medium Range Receiver ATEX Source
2104B2132 Medium Range Receiver ATEX Sink
2104B2151 Long Range Receiver ATEX Source
2104B2152 Long Range Receiver ATEX Sink
2104B3001 Short Range Transmitter UL
2104B3011 Medium Range Transmitter UL
2104B3021 Long Range Transmitter UL
2104B3101 Short Range Receiver UL Source
2104B3102 Short Range Receiver UL Sink
2104B3111 Medium Range Receiver UL Source
2104B3112 Medium Range Receiver UL Sink
2104B3121 Long Range Receiver UL Source
2104B3122 Long Range Receiver UL Sink
2104B3201 Short Range Transmitter CSA
2104B3211 Medium Range Transmitter CSA
2104B3221 Long Range Transmitter CSA
2104B3301 Short Range Receiver CSA Source
2104B3302 Short Range Receiver CSA Sink
2104B3311 Medium Range Receiver CSA Source
2104B3312 Medium Range Receiver CSA Sink
2104B3321 Long Range Receiver CSA Source
2104B3322 Long Range Receiver CSA Sink
2104B3401 Short Range Transmitter Inmetro
2104B3411 Medium Range Transmitter Inmetro
2104B3421 Long Range Transmitter Inmetro
2104B3501 Short Range Receiver Inmetro Source
2104B3502 Short Range Receiver Inmetro Sink
2104B3511 Medium Range Receiver Inmetro Source
2104B3512 Medium Range Receiver Inmetro Sink
2104B3521 Long Range Receiver Inmetro Source
2104B3522 Long Range Receiver Inmetro Sink
2104B3601 Spare short range transmitter CU-TR Ex
2104B3611 Spare medium range transmitter CU-TR Ex
2104B3621 Spare long range transmitter CU-TR Ex
2104B3701 Spare short range receiver CU-TR Ex source
2104B3702 Spare short range receiver CU-TR Ex sink
2104B3711 Spare medium range receiver CU-TR Ex source
2104B3712 Spare medium range receiver CU-TR Ex sink
2104B3721 Spare long range receiver CU-TR Ex source
2104B3722 Spare long range receiver CU-TR Ex sink

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
