Honeywell Analytics Searchpoint Optima Plus

Protect people and processes, achieve maximum uptime and cost efficiencies with the industry's most reliable, advanced point infrared gas detector, now with HART digital communication - the Honeywell Analytics Searchpoint Optima Plus

Key Features

  • Experience gained from over 100,000 units installed worldwide
  • Improved reliability
  • Optional HART over 4-20mA output
Get a Quote
Honeywell Analytics

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

Take advantage of HART communication added to the proven performance of the market-leading hydrocarbon point infrared gas detector.

With over 40 years experience in the design, manufacture, installation and maintenance of point infrared gas detection, Honeywell Analytics currently has a worldwide installed base of over 100,000 infrared point hydrocarbon gas detectors in a wide spectrum of applications from light industrial to the most demanding of offshore environments.

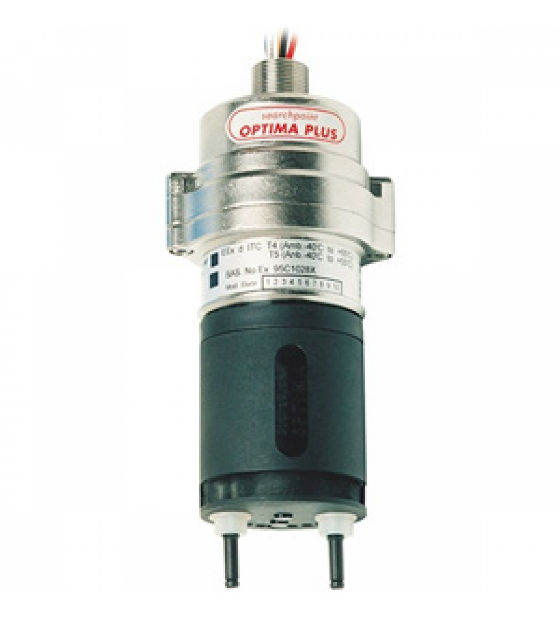

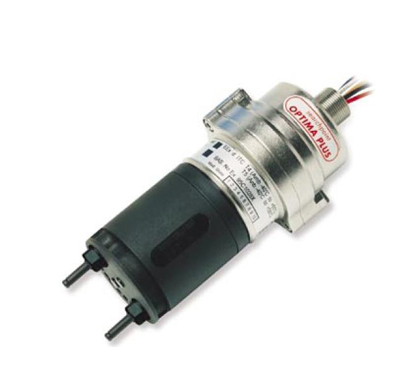

Searchpoint Optima Plus is an infrared point Hydrocarbon gas detector certified for use in potentially explosive atmospheres. The unit's infrared detection principle offers the fastest speed of response and fail-to-safe operation, ensuring that your plant is compliant, your personnel are protected and your production process can deliver maximum uptime. Reduced routine maintenance, when compared with conventional electro-catalytic based gas detectors, provides low ongoing cost of ownership. The development of advanced internal fault diagnostics and false alarm rejection algorithms ensures that the Searchpoint Optima Plus delivers the highest level of operational integrity.

Typical applications include environments that may suffer from the presence of catalytic bead poisons or inhibitors, or where there are harsh environmental conditions forcing increased time between routine maintenance:

• Offshore oil and gas platforms
• Floating production storage and offloading (FPSO) vessels
• Tankers
• Onshore oil and gas terminals
• Refineries
• LNG/LPG bottling plants
• Gas compressor/metering stations
• Gas turbine power plants
• Solvent printing and coating plants

Over 100 gas and vapor calibrations are available. For a list of detectable gases and vapors,
Certified: ATEX
  • 2108N4000N Hydrocarbon calibration, with dust barrier, weather housing, deluge/ heat shade

  • 2108N4000H Hydrocarbon calibration, with dust barrier, weather housing, deluge/heat shade, HART output

  • 2108N4001N Ethylene calibration, with dust barrier, weather housing, deluge/heat shade

  • 2108N4001H Ethylene calibration, with dust barrier, weather housing, deluge/heat shade, HART output

  • 2108N4010N Hydrocarbon calibration, with dust barrier, weather housing, deluge/heat shade, including remote gassing cell

  • 2108N4010H Hydrocarbon calibration, with dust barrier, weather housing, deluge/heat shade, HART output, including remote gassing cell

  • 2108N4011N Ethylene calibration with dust barrier, weather housing, deluge/heat shade, including remote gassing cell

  • 2108N4011H Ethylene calibration with dust barrier, weather housing, deluge/heat shade, HART output, including remote gassing cell

  • 2108N5000N Hydrocarbon calibration, for use in remote sampling systems complete with flow housing

  • 2108N5000H Hydrocarbon calibration, for use in remote sampling systems complete with flow housing, HART output

  • 2108N5001N Ethylene calibration, for use in remote sampling systems complete with flow housing

  • 2108N5001H Ethylene calibration, for use in remote sampling systems complete with flow housing, HART output

  • 2108N5010N Hydrocarbon calibration, for use in remote sampling systems for gas ranges 0-100 %v/v methane, 0-600,000 ppm propane and 0-400,000 ppm propane, fitted with remote gassing cell and flow housing

  • 2108N5010H Hydrocarbon calibration, for use in remote sampling systems for gas ranges 0-100 %v/v methane, 0-600,000 ppm propane and 0-400,000 ppm propane, fitted with remote gassing cell and flow housing, HART output
Certified: UL / Inmetro
  • 2108N4100N Hydrocarbon calibration, with dust barrier, weather housing, deluge/heat shade

  • 2108N4100H Hydrocarbon calibration, with dust barrier, weather housing, deluge/heat shade, HART output

  • 2108N4101N Ethylene calibration, with dust barrier, weather housing, deluge/heat shade

  • 2108N4101H Ethylene calibration, with dust barrier, weather housing, deluge/heat shade, HART output

  • 2108N4110N Hydrocarbon calibration, with dust barrier, weather housing, deluge/heat shade, including remote gassing cell

  • 2108N4110H Hydrocarbon calibration, with dust barrier, weather housing, deluge/heat shade, HART output, including remote gassing cell

  • 2108N4111N Ethylene calibration with dust barrier, weather housing, deluge/heat shade, including remote gassing cell

  • 2108N4111H Ethylene calibration with dust barrier, weather housing, deluge/heat shade, HART output, including remote gassing cell

  • 2108N5100N Hydrocarbon calibration, for use in remote sampling systems complete with flow housing

  • 2108N5100H Hydrocarbon calibration, for use in remote sampling systems complete with flow housing, HART output

  • 2108N5101N Ethylene calibration, for use in remote sampling systems complete with flow housing

  • 2108N5101H Ethylene calibration, for use in remote sampling systems complete with flow housing, HART output

  • 2108N5110N Hydrocarbon calibration, for use in remote sampling systems for gas ranges 0-100 %v/v methane, 0-600,000 ppm propane and 0-400,000 ppm propane, fitted with remote gassing cell and flow housing

  • 2108N5110H Hydrocarbon calibration, for use in remote sampling systems for gas ranges 0-100 %v/v methane, 0-600,000 ppm propane and 0-400,000 ppm propane, fitted with remote gassing cell and flow housing, HART output
Certified: FM / CSA
  • 2108N4200N Hydrocarbon calibration, with dust barrier, weather housing, deluge/heat shade

  • 2108N4200H Hydrocarbon calibration, with dust barrier, weather housing, deluge/heat shade, HART output

  • 2108N4210N Hydrocarbon calibration, with dust barrier, weather housing, deluge/heat shade, including remote gassing cell

  • 2108N4210H Hydrocarbon calibration, with dust barrier, weather housing, deluge/heat shade, HART output, including remote gassing cell

  • 2108N5200N Hydrocarbon calibration, for use in remote sampling systems complete with flow housing

  • 2108N5200H Hydrocarbon calibration, for use in remote sampling systems complete with flow housing, HART output
Certified: Marine (MED)
  • 2108N4400N Hydrocarbon calibration, with dust barrier, weather housing, deluge/heat shade

  • 2108N4400H Hydrocarbon calibration, with dust barrier, weather housing, deluge/heat shade, HART output

  • 2108N4401N Ethylene calibration, with dust barrier, weather housing, deluge/heat shade

  • 2108N4401H Ethylene calibration, with dust barrier, weather housing, deluge/heat shade, HART output

  • 2108N4410N Hydrocarbon calibration, with dust barrier, weather housing, deluge/heat shade, including remote gassing cell

  • 2108N4410H Hydrocarbon calibration, with dust barrier, weather housing, deluge/heat shade, HART output, including remote gassing cell

  • 2108N4411N Ethylene calibration with dust barrier, weather housing, deluge/heat shade, including remote gassing cell

  • 2108N4411H Ethylene calibration with dust barrier, weather housing, deluge/heat shade, HART output, including remote gassing cell

  • 2108N5400N Hydrocarbon calibration, for use in remote sampling systems complete with flow housing

  • 2108N5400H Hydrocarbon calibration, for use in remote sampling systems complete with flow housing, HART output

  • 2108N5401N Ethylene calibration, for use in remote sampling systems complete with flow housing

  • 2108N5401H Ethylene calibration, for use in remote sampling systems complete with flow housing, HART output

  • 2108N5410N Hydrocarbon calibration, for use in remote sampling systems for gas ranges 0-100 %v/v methane, 0-600,000 ppm propane and 0-400,000 ppm propane, fitted with remote gassing cell and flow housing

  • 2108N5410H Hydrocarbon calibration, for use in remote sampling systems for gas ranges 0-100 %v/v methane, 0-600,000 ppm propane and 0-400,000 ppm propane, fitted with remote gassing cell and flow housing, HART output
Certified: CCCF (Chinese)
  • 2108N4600N Hydrocarbon calibration, with dust barrier, weather housing, deluge/heat shade

  • 2108N4600H Hydrocarbon calibration, with dust barrier, weather housing, deluge/heat shade, HART output

  • 2108N4601N Ethylene calibration, with dust barrier, weather housing, deluge/heat shade

  • 2108N4601H Ethylene calibration, with dust barrier, weather housing, deluge/heat shade, HART output

  • 2108N4610N Hydrocarbon calibration, with dust barrier, weather housing, deluge/heat shade, including remote gassing cell

  • 2108N4610H Hydrocarbon calibration, with dust barrier, weather housing, deluge/heat shade, HART output, including remote gassing cell

  • 2108N4611N Ethylene calibration with dust barrier, weather housing, deluge/heat shade, including remote gassing cell

  • 2108N4611H Ethylene calibration with dust barrier, weather housing, deluge/heat shade, HART output, including remote gassing cell

  • 2108N5600N Hydrocarbon calibration, for use in remote sampling systems complete with flow housing

  • 2108N5600H Hydrocarbon calibration, for use in remote sampling systems complete with flow housing, HART output

  • 2108N5601N Ethylene calibration, for use in remote sampling systems complete with flow housing

  • 2108N5601H Ethylene calibration, for use in remote sampling systems complete with flow housing, HART output
Certified: GOST-R
  • 2108N4800N Hydrocarbon calibration, with dust barrier, weather housing, deluge/heat shade

  • 2108N4800H Hydrocarbon calibration, with dust barrier, weather housing, deluge/heat shade, HART output

  • 2108N4801N Ethylene calibration, with dust barrier, weather housing, deluge/heat shade

  • 2108N4801H Ethylene calibration, with dust barrier, weather housing, deluge/heat shade, HART output

  • 2108N4810N Hydrocarbon calibration, with dust barrier, weather housing, deluge/heat shade, including remote gassing cell

  • 2108N4810H Hydrocarbon calibration, with dust barrier, weather housing, deluge/heat shade, HART output, including remote gassing cell

  • 2108N4811N Ethylene calibration with dust barrier, weather housing, deluge/heat shade, including remote gassing cell

  • 2108N4811H Ethylene calibration with dust barrier, weather housing, deluge/heat shade, HART output, including remote gassing cell

  • 2108N5800N Hydrocarbon calibration, for use in remote sampling systems complete with flow housing

  • 2108N5800H Hydrocarbon calibration, for use in remote sampling systems complete with flow housing, HART output

  • 2108N5801N Ethylene calibration, for use in remote sampling systems complete with flow housing

  • 2108N5801H Ethylene calibration, for use in remote sampling systems complete with flow housing, HART output
Accessories
  • 2108B0259 Dust Barrier

  • 2108B0276 Weather housing labyrinth

  • 2108B0280 Storm Baffle (ATEX)

  • 2108B0282 Searchpoint Optima Plus Flow Housing

  • 2108D0258 Searchpoint Optima Plus Gassing Cover (used for calibration)

  • 2108D0272 Searchpoint Optima Plus Calibration Cap

  • 2108D0275 Searchpoint Optima Plus Deluge / Heat Shade

  • 2104B2381 DX100i XP Termination Unit UL with IS barrier

  • 2104B2382 DX100M XP Termination Unit UL with ModBus capability

  • 2104B6211 DVC100i MK2 Termination Unit ATEX

  • 2104B6212 DVC100M MK2 Termination Unit ATEX with ModBus capability

  • 2104B6205 DVC100i Termination Unit SAA

  • 2104B6206 DVC100M Termination Unit SAA with ModBus capability

  • 04230-A-1001 Hand Held Interrogator ATEX Certified (4V0 software) for Optima, Searchpoint Optima Plus and Searchline Excel

  • 2104B2351 Hand Held Interrogator UL Certified (4V0 software) for Optima, Searchpoint Optima Plus and Searchline Excel

  • 2104B2354 Hand Held Interrogator CSA Certified (4V1 software) for Optima, Searchpoint Optima Plus and Searchline Excel

  • 04230-A-1010 Hand Held Interrogator SAA Certified (4V0 software) for Optima, Searchpoint Optima Plus and Searchline Excel

  • 2108B1455 Hand Held EEPROM upgrade (4V0)

  • 04230-A-1025 SHC protection device module and lead

  • 2104B6250 SHC Calibrator Connector System 10m

  • 2441-0022 UL/CSA Aluminium Junction Box Assembly (for remote mount of MPD sensors)

  • 00780-A-0100 Honeywell Junction Box- Bartec OTB122 With Continuity Plate 1 X 25mm - 3 X 20mm Entries - ATEX Approved

  • 04200-A-1040 Optima Junction Box Adaptor Plate

  • 2442-0016 US Duct Mount Kit for Searchpoint Optima Plus and Apex, UL Version ONLY.

  • 04200-A-1015 Duct Mount Kit for Searchpoint Optima Plus ATEX Version and 00780-A-0100 Honeywell Bartec Terminal Housing

  • 2104B0349 Duct Mount Kit for Searchpoint Optima Plus ATEX Version and DVC100 MK2 Termination Unit
Spares
  • 2108B2001N Hydrocarbon Searchpoint Optima Plus, ATEX

  • 2108B2001H Hydrocarbon Searchpoint Optima Plus HART, ATEX

  • 2108B2003N Ethylene Searchpoint Optima Plus, ATEX

  • 2108B2003H Ethylene Searchpoint Optima Plus HART, ATEX

  • 2108B2101N Hydrocarbon Searchpoint Optima Plus, UL/Inmetro

  • 2108B2101H Hydrocarbon Searchpoint Optima Plus HART, UL/Inmetro

  • 2108B2103N Ethylene Searchpoint Optima Plus, UL/Inmetro

  • 2108B2103H Ethylene Searchpoint Optima Plus HART, UL/Inmetro

  • 2108B2201N Hydrocarbon Searchpoint Optima Plus, FM/CSA

  • 2108B2201H Hydrocarbon Searchpoint Optima Plus HART, FM/CSA

  • 2108B2031N Hydrocarbon Searchpoint Optima Plus, CCCF (Chinese)

  • 2108B2031H Hydrocarbon Searchpoint Optima Plus HART, CCCF (Chinese)

  • 2108B2033N Ethylene Searchpoint Optima Plus, CCCF (Chinese)

  • 2108B2033H Ethylene Searchpoint Optima Plus HART, CCCF (Chinese)

  • 2108B2041N Hydrocarbon Searchpoint Optima Plus, GOST-R

  • 2108B2041H Hydrocarbon Searchpoint Optima Plus HART, GOST-R

  • 2108B2043N Ethylene Searchpoint Optima Plus, GOST-R

  • 2108B2043H Ethylene Searchpoint Optima Plus HART, GOST-R

  • 2108B2051N Hydrocarbon Searchpoint Optima Plus, Marine (MED)

  • 2108B2051H Hydrocarbon Searchpoint Optima Plus HART, Marine (MED)

  • 2108B2053N Ethylene Searchpoint Optima Plus, Marine (MED)

  • 2108B2053H Ethylene Searchpoint Optima Plus HART, Marine (MED)
