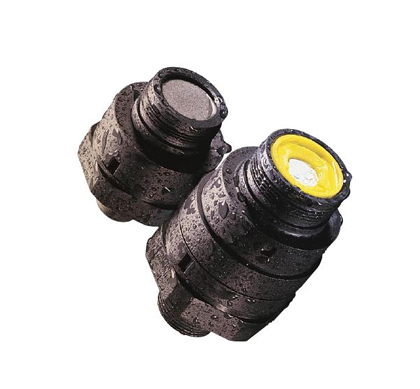

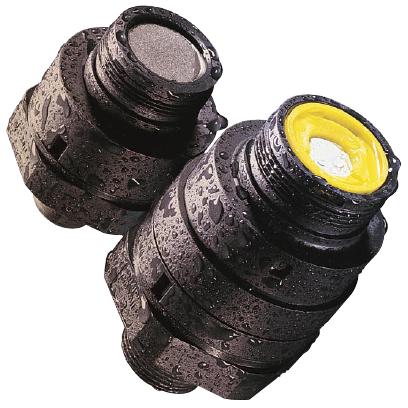

Honeywell Analytics Sensepoint


The Sensepoint range of flammable, toxic and oxygen gas detectors offer users a high quality, low cost solution to their industrial gas monitoring needs. Installation in potentially explosive atmospheres is made by the use of a suitable Exd or Exe approved junction box. The industry standard outputs from Sensepoint are connected to either a choice of Honeywell Analytics' controllers or 3rd party DCS/PLC systems. Both flammable and toxic versions are certified to the latest European ATEX safety and performance standards.

The flammable detector is available in either %LEL or PPM detection range versions and provides an industry standard mV bridge output. Typical life expectancy is greater than 5 years, after which the detector is simply replaced with a new one.

The toxic detectors are supplied pre calibrated for easy installation and provide an industry standard 2 wire 4-20mA loop output. User connections are Exd, while front end Intrinsic Safety (IS) design allows for easy exchange of the replaceable sensor while powered. IS design also removes the need for a sinter enabling very fast speed of response and detection of 'sticky' gases such as Chlorine and Ammonia.

Sensepoint has proven its suitability across a wide range of demanding applications by delivering high performance and reliability at an affordable cost.


Data Sheet
Gas Book Americas
Sensepoint HT Sensor
Sensepoint HT Combustible Gas Sensor Quick Start Guide
Sensepoint LEL Combustible Sensor Operating Instructions
Sensepoint Toxic Sensor Operating Instructions
Sensepoint with Junction Box Manual
Sensepoint Technical Handbook

Fit For Purpose

  Flammable, toxic and oxygen versions available
  High performance, low cost
  Suitable for new and retro fit applications Proven Sensor Technology
  SurecellTM electrochemical sensors
  Poison resistant catalytic bead
  Fast and reliable
  Typical 2 to 5 years operational life ATEX Certified
  Complies with the latest European standards
  Hazardous area approval AND performance
  IP 65/66 for use in harsh environments

Easy to Use

  Factory set operation
  Simple to replace
  Minimal training required

Range of Accessories

  Weatherproof cap
  Flow adaptor
  Duct mounting kit
  Collecting cone

Ordering Information


Sensepoint Flammable (0-100%LEL +80°C, 0-10%LEL +65°C)

2106B1200 Sensepoint 0-100% LEL Flam. Sensor M20
2106B1201 Sensepoint 0-100% LEL Flam. Sensor M25
2106B1202 Sensepoint 0-100% LEL Flam. Sensor M26
2106B1203 Sensepoint Flammable M26 VQ1AB pellistor
2106B1204 Sensepoint 0-100% LEL Flam. Sensor 3/4NPT
2106B1205 Sensepoint ppm Flam. Sensor M20*
2106B1206 Sensepoint ppm Flam. Sensor M25*
2106B1209 Sensepoint ppm Flam. Sensor 3/4NPT*

* please refer to the manual for gas specific unit and range

Note: For a complete sensor order correct number of BARTEC J.Box 00780-A-0100 and Weather Housing 02000-A-1640

Sensepoint Flammable - High Temperature (150°C with 3rd party performance approval)

2106B2310 Sensepoint HT Flammable Sensor (ATEX) M20
2106B2311 Sensepoint HT Flammable Sensor (ATEX) M25
2106B2312 Sensepoint HT Flammable Sensor (ATEX) 3/4 NPT

Note: For a complete sensor order correct number of FEEL Exe J.Box 2052D0001 and Weather Housing 00780-A-0076

Sensepoint Toxic

2106B1400 Sensepoint H2S 0-20 ppm Toxic Sensor M20
2106B1401 Sensepoint H2S 0-50 ppm Toxic Sensor M20
2106B1402 Sensepoint H2S 0-100 ppm Toxic Sensor M20
2106B1500 Sensepoint H2S 0-20 ppm Toxic Sensor M25
2106B1501 Sensepoint H2S 0-50 ppm Toxic Sensor M25
2106B1502 Sensepoint H2S 0-100 ppm Toxic Sensor M25
2106B1700 Sensepoint H2S 0-20 ppm Toxic Sensor 3/4NPT
2106B1701 Sensepoint H2S 0-50 ppm Toxic Sensor 3/4NPT
2106B1702 Sensepoint H2S 0-100 ppm Toxic Sensor 3/4NPT
2106B1800 Sensepoint H2S 0-20 ppm Toxic Sensor 3/4NPT CSA
2106B1801 Sensepoint H2S 0-50 ppm Toxic Sensor 3/4NPT CSA
2106B1802 Sensepoint H2S 0-100 ppm Toxic Sensor 3/4NPT CSA
2106B1405 Sensepoint CO 0-100 ppm Toxic Sensor M20
2106B1406 Sensepoint CO 0-200 ppm Toxic Sensor M20
2106B1407 Sensepoint CO 0-500 ppm Toxic Sensor M20
2106B1505 Sensepoint CO 0-100 ppm Toxic Sensor M25
2106B1506 Sensepoint CO 0-200 ppm Toxic Sensor M25
2106B1507 Sensepoint CO 0-500 ppm Toxic Sensor M25
2106B1705 Sensepoint CO 0-100 ppm Toxic Sensor 3/4NPT
2106B1706 Sensepoint CO 0-200 ppm Toxic Sensor 3/4NPT
2106B1707 Sensepoint CO 0-500 ppm Toxic Sensor 3/4NPT
2106B1805 Sensepoint CO 0-100 ppm Toxic Sensor 3/4NPT CSA
2106B1806 Sensepoint CO 0-200 ppm Toxic Sensor 3/4NPT CSA
2106B1807 Sensepoint CO 0-500 ppm Toxic Sensor 3/4NPT CSA
2106B1410 Sensepoint Cl2 0-5 ppm Toxic Sensor M20
2106B1411 Sensepoint Cl2 0-15 ppm Toxic Sensor M20
2106B1510 Sensepoint Cl2 0-5 ppm Toxic Sensor M25
2106B1511 Sensepoint Cl2 0-15 ppm Toxic Sensor M25
2106B1711 Sensepoint Cl2 0-15 ppm Toxic Sensor 3/4NPT
2106B1810 Sensepoint Cl2 0-5 ppm Toxic Sensor 3/4NPT CSA
2106B1811 Sensepoint Cl2 0-15 ppm Toxic Sensor 3/4NPT CSA
2106B1413 Sensepoint NH3 0-50 ppm Toxic Sensor M20
2106B1414 Sensepoint NH3 0-1000 ppm Toxic Sensor M20
2106B1415 Sensepoint NH3 0-100 ppm Toxic Sensor M20
2106B1513 Sensepoint NH3 0-50 ppm Toxic Sensor M25
2106B1514 Sensepoint NH3 0-1000 ppm Toxic Sensor M25
2106B1515 Sensepoint NH3 0-100 ppm Toxic Sensor M25
2106B1713 Sensepoint NH3 0-50 ppm Toxic Sensor 3/4NPT
2106B1714 Sensepoint NH3 0-1000 ppm Toxic Sensor 3/4NPT
2106B1715 Sensepoint NH3 0-100 ppm Toxic Sensor 3/4NPT
2106B1813 Sensepoint NH3 0-50 ppm Toxic Sensor 3/4NPT CSA
2106B1814 Sensepoint NH3 0-1000 ppm Toxic Sensor 3/4NPT CSA
2106B1815 Sensepoint NH3 0-100 ppm Toxic Sensor 3/4NPT CSA
2106B1416 Sensepoint H2 0-1000 ppm Toxic Sensor M20
2106B1417 Sensepoint H2 0-10000 ppm Toxic Sensor M20
2106B1516 Sensepoint H2 0-1000 ppm Toxic Sensor M25
2106B1517 Sensepoint H2 0-10000 ppm Toxic Sensor M25
2106B1716 Sensepoint H2 0-1000 ppm Toxic Sensor 3/4NPT
2106B1717 Sensepoint H2 0-10000 ppm Toxic Sensor 3/4NPT
2106B1816 Sensepoint H2 0-1000 ppm Toxic Sensor 3/4NPT CSA
2106B1817 Sensepoint H2 0-10000ppm Toxic Sensor 3/4NPT CSA
2106B1418 Sensepoint NO 0-100 ppm Toxic Sensor M20
2106B1518 Sensepoint NO 0-100 ppm Toxic Sensor M25
2106B1718 Sensepoint NO 0-100 ppm Toxic Sensor 3/4NPT
2106B1818 Sensepoint NO 0-100 ppm Toxic Sensor 3/4NPT CSA
2106B1420 Sensepoint SO2 0-15 ppm Toxic Sensor M20
2106B1421 Sensepoint SO2 0-50 ppm Toxic Sensor M20
2106B1520 Sensepoint SO2 0-15 ppm Toxic Sensor M25
2106B1521 Sensepoint SO2 0-50 ppm Toxic Sensor M25
2106B1720 Sensepoint SO2 0-15 ppm Toxic Sensor 3/4NPT
2106B1721 Sensepoint SO2 0-50 ppm Toxic Sensor 3/4NPT
2106B1820 Sensepoint SO2 0-15 ppm Toxic Sensor 3/4NPT CSA
2106B1821 Sensepoint SO2 0-50 ppm Toxic Sensor 3/4NPT CSA
2106B1422 Sensepoint NO2 0-10 ppm Toxic Sensor M20
2106B1522 Sensepoint NO2 0-10 ppm Toxic Sensor M25
2106B1722 Sensepoint NO2 0-10 ppm Toxic Sensor 3/4NPT
2106B1822 Sensepoint NO2 0-10 ppm Toxic Sensor 3/4NPT CSA
2106B1430 Sensepoint O2 25% V/V Toxic Sensor M20
2106B1530 Sensepoint O2 25% V/V Toxic Sensor M25
2106B1730 Sensepoint O2 25% V/V Toxic Sensor 3/4NPT
2106B1830 Sensepoint 0-25 V/V O2 Toxic Sensor 3/4NPT CSA

Note: For a complete sensor order correct number of BARTEC J.Box 00780-A-0100 and Weather Housing 02000-A-1635

Accessories

00780-A-0100 Honeywell Junction Box- Bartec OTB122 With Continuity Plate 1 X 25mm - 3 X 20mm
Entries - ATEX Approved
2052D0001 High temperature Exe junction box. ATEX approved
00780-A-0160 Right Angle Mounting Bracket For Junction Box 00780-A-0100
02000-A-1635 Weatherproof cap for use with toxic detector including remote gassing nozzle (for
Sensepoint, Signalpoint, Satellite (with adapter), XNX MPD and Series 2000)
02000-A-1640 Weatherproof cap for use with combustible detector including remote gassing nozzle
(for Sensepoint, Signalpoint, Satellite (with adapter), XNX MPD and Series 2000)
00780-A-0076 Stainless steel weather housing for Sensepoint HT or 705 HT (for use with in high
temperature applications or with duct mounting kits)
02000-A-1642 Collecting cone for use with flammable detector (for Sensepoint, Signalpoint, Satellite
(with adapter), XNX MPD and Series 2000)
02000-A-1645 Flow Housing Assembly (for Sensepoint, Signalpoint, Satellite (with adapter), XNX
MPD and Series 2000)
2106B2114 Sensepoint & Signalpoint Toxic Calibration Kit including calibration cover, removal
tool, potentiometer adjustment tool
2106D2055 M36/M40 thread adaptor
225-262-138 Cable gland and caps, 20mm, Nylon
94000-C-1001 2" Pipe Mount Plate (please separately order 90083-A-8034)
90083-A-8034 2 x 2" U-Bolts x M6 C/W Nuts and Washers 316SS for 2" Pipe Mount Plate
90053-A-7001 1-way Sensepoint M20 Duct Mount Kit. Please order separately 00780-A-0100, 02000-
A-1640 (for Combustible versions) or 02000-A-1635 (for Toxic versions)
90053-A-7041 1-way Sensepoint M20 Duct Mount Kit 'High Temp'. Please order separately
2052D0001 and 00780-A-0076
90053-A-8002 1-way Sensepoint M25 Duct Mount Kit. Please order separately 00780-A-0100, 02000-
A-1640 (for Combustible versions) or 02000-A-1635 (for Toxic versions)
90068-A-8204 Gassing Block 316SST. 6mm O/D Connector to Sensor and 6mm Tube Connector to
Gas Bottle
90068-C-8291 PTFE Tubing 8mm O/D x 6mm I/D. Price per Meter
90068-C-8292 Soft PVC Tubing 8mm O/D x 5mm I/D. Price per Meter
00910-A-0404 Hydrophobic barrier assembly for Weather Housing

Spares

2106B1545 O2 Electrochemical Cell Exch Kit
2106B1546 SO2 Electrochemical Cell Exchange Kit
2106B1547 Cl2 Electrochemical Cell Exch Kit
2106B1548 CO Electrochemical Cell Exch Kit
2106B1549 H2S Electrochemical Cell Exch Kit
2106B1593 NH3 0-100 ppm Electrochemical Cell Exchange Kit
2106B1594 NO Electrochemical Cell Exchange Kit
2106B1595 NH3 0-1000 ppm Electrochemical Cell Exch Kit
2106B1596 NH3 0-50 ppm Electrochemical Cell Exch kit
2106B1597 H2 0-1000 ppm Electrochemical Cell Exchange Kit
2106B1598 H2 10000 ppm Electrochemical Exchange Kit
2106B1599 NO2 0-10 ppm Electrochemical Exchange Kit



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
