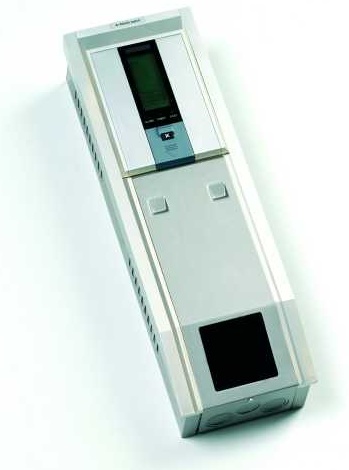

Honeywell Analytics Touchpoint 1


The Touchpoint 1 controller when used with any one of the Sensepoint range of gas detectors provides 24 hour protection from flammable, toxic or oxygen gas hazards. With executive outputs to shutdown process equipment or drive warning devices the Touchpoint 1 is ideal for continuous monitoring of small remote sites where it is inappropriate or costly to monitor the area from a central location.

The shallow profile is designed for convenient location in corridors or reception areas where some larger controllers may be obtrusive.

A wall mounting bracket is included to which the controller is attached, thereby simplifying installation. All cable entries are made via a gland plate at the bottom of the enclosure which includes pre-defined knockouts to minimize risk of damaging the connection terminals.

The hinged front cover latches open to enable full and unhindered access to the terminal compartment for installers.

AC and/or DC driven, the Touchpoint 1 includes built-in audiovisual alarms, two programmable alarm relays and a system fault relay as well as an isolated 4-20mA output proportional to the input from the field device. The system is fully user programmable via the ultra-clear backlit LCD and intuitive menu system. For example, relays may be configured as ‘non-latching’ (default is ‘latching’) so that outputs clear automatically on remote unmanned sites.

Buttons used for configuration are hidden behind an access panel to prevent tampering. A single button is available to all users on the front of the controller to perform a simple self-test or to reset alarms if needed. Event history is recorded as standard on all Touchpoint systems. Times and dates of alarms, power on or off, can be reviewed via the display to provide useful diagnostic information for service engineers and plant operators.

A Honeywell Analytics’ gas detection system is designed to offer a total solution for your gas monitoring needs. Manufactured to the highest quality standards, you are assured of being surrounded by gas detection equipment you can trust.


Data Sheet

User Friendly

  Self contained, wall mounted enclosure
  Ultra-clear backlit display
  Built-in audiovisual alarms
  Intuitive menu system
  Simple push button operation

Easy to Install

  Unobtrusive slimline profile
  Mounting bracket included
  Easy accessto all terminals
  Pre-formed knockoutsin gland plate

Comprehensive Operation

  3 wire mV bridge, 2 and 3 wire 4-20mA inputs
  AC and/or DC operation
  2 x alarm relays
  1 xsystem fault relay
  Repeated 4-20mA signa

Flexible Operation

  Fully user programmable forscale, units and calibration
  Relays configurable as energized, de-energized, latching or non-latching
  Compatible with all Sensepoint gas detectors

Part Numbers

Instrument

TPWM1101 mV input version
TPWM1110 mA input version

Spares

TP1MAN Instruction manual
TP1WMB Wall mounting bracket
TP1MVIM Replacement mV input module
TP1MAIM Replacement mA input module
TP1MVDM Replacement mV display module
TP1MADM Replacement mA display module
TP1IDC IDC lead (display to input module)
SPppmTS Terminal screw and 'U' clamp (bag of 20)

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
