HomeLaboratoryWater Baths › IKA HBC 5 Basic Thermostat

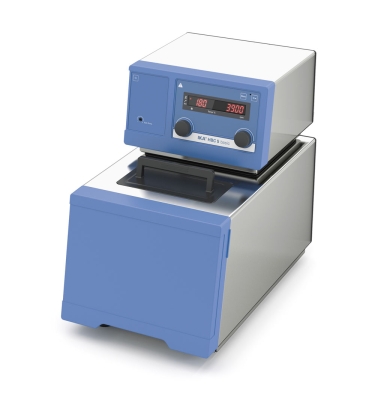

IKA HBC 5 Basic Thermostat


The HBC 5 basic heated bath circulator heats up to a maximum temperature of 200 C and is equipped with a high quality stainless steel bath with a filling volume of 5 - 7 litres. The large surface of the radiator allows for an optimum heat exchange and a smooth warming of the medium. Thanks to the superior isolation, heating up times are remarkably fast. The easy to clean bath has a front drain valve for safe emptying. To drain the system, a hose is connected so that the user does not have direct contact with the tempering fluid. With customer safety as a priority, the HBC 5 basic is UL certified and conform to the highest safety classification III (FL) for use with flammable liquids according to DIN 12876.

  Temperature range: 20 200 C
  Temperature accuracy: 0.02 K
  Integrated cooling coil
  Adjustable safety circuit
  Powerful, speed-controlled pressure/suction pump
  Push and turn buttons for an intuitive menu navigation
  Large easy-to-read LED display for pump speed and temperature
  External PT 100 temperature sensor included
  Optical and acoustic warning functions
  USB / RS 232 interface for pc control and documentation using labworldsoft and for online firmware updates



Data Sheet

Ordering Information


0004125000 - HBC 5 basic - Heating bath circulator, 5-7 l



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
