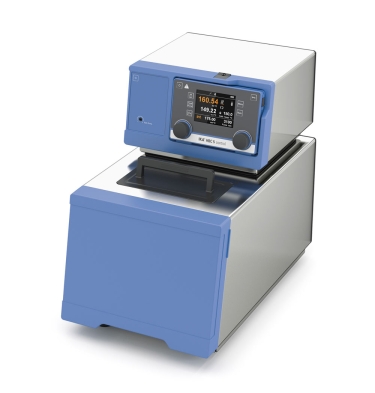

IKA HBC 5 Control Thermostat


The HBC 5 control heated bath circulator heats up to a maximum temperature of 250 C and is equipped with a high-quality stainless steel bath with a filling volume of 5-7 litres. The color graphic TFT Display illustrates all relevant process data. The user can switch from internal to external temperature regulation with only one key. The large surface of the radiator allows for an optimum heat exchange and a smooth warming of the medium. Push and turn buttons for intuitive multilingual menu navigation. The bath has a front drain valve for safe emptying. To drain the system, a hose is connected so that the user does not have direct contact with the tempering fluid. Thanks to the innovative WiCo Wireless Controller, the unit can be operated from a distance of up to 10 meters.

  Temperature range: 20 250 C
  Temperature accuracy: 0.1 K
  Wireless Controller (WiCo) enables safe operation, e.g. in front of a closed fume hood
  Large, easy-to-read TFT display for temperature, pump speed, filling level and safety temperature.
  Integrated cooling coil
  Powerful, speed controlled pressure/suction pump
  Adjustable safety circuit
  Safety classification III (FL) according to DIN 12876
  Certified by UL
  PT 100 temperature probe included
  Timer function: 0 99 h 59 min
  Optical and acoustic warning functions
  Connection of a magnetic valve possible
  USB / RS 232 interface for controlling and supervising of the units via labworldsoft and for online firmware updates



Data Sheet

Ordering Information


0004127000 - HBC 5 control - Heating bath circulator, 5-7 l



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
