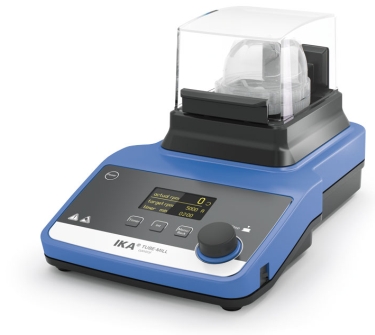

IKA Tube Mill Control

The world's first patented Tube Mill control is a batch mill with disposable grinding chamber. Eliminates possibility of cross-contamination and the effort of cleaning. The grinding chamber and cover are made of a transparent material so grinding tests can be observed at any time. The mill can be used for hard (Mohs hardness up to 5), dry and brittle materials. It is especially suitable for grinding seeds, such as corn and wheat. During development of the mill, particular emphasis was placed on security. The mill will only start when the hood is closed. When the grinding chamber is not inserted properly or not closed properly, the drive unit will display an error message and the drive will not start. During operation, the grinding chamber cannot be opened. The drive and the grinding chambers are secured with a labyrinth seal. No dust can escape from the chamber or penetrate the drive.

  Clearly arranged, multilingual OLED-display
  Timer, adjustable from 5 s to 3 min
  USB interface for control and documentation of all the parameters
  Interval operation available
  Infinitely variable speed from 5000 to 25000 rpm
  Various operating modes
  Adjustable safety speed
  Adjustable safety time
  Programmable and storable test conditions
  Error Code Display
  Reproducible test results
  Easy operation with touch keypad
  Dust proof sealed housing
  Quiet operation

Data Sheet

Ordering Information

0004180000 - Tube Mill control - Analytical mill

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
