HomeLaboratorypH/Conductivity Meters › Jenway 3520 pH/mV/Temperature Meter

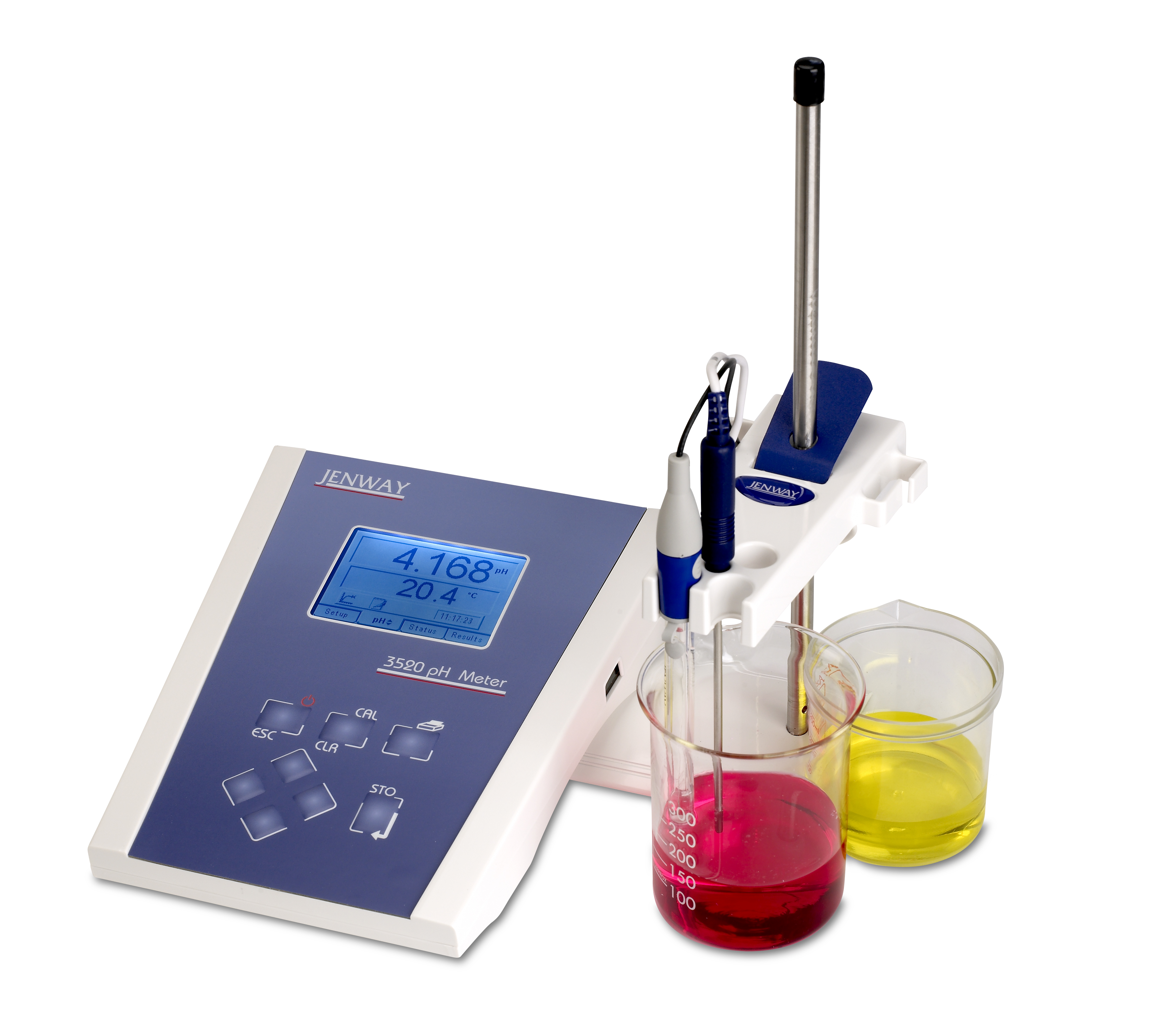

Jenway 3520 pH/mV/Temperature Meter


  3 decimal place pH resolution
  3 point pH calibration
  Choice of pH calibration buffer types
  Differential pH input
  Security code protected user data
  Calibration data status display
  Calibration reminder
  500 reading memory
  Comprehensive data logging options
  RS232 serial interface and IrDA printer interface
  Alarm outputs (open collector and audible)
  Analogue recorder output
  Wall mounting option
  Back lit 1/8 VGA monochrome liquid crystal display
  Multi-language operation

A fully specified laboratory pH/mV/temperature meter that includes full support for good laboratory practices (GLP). The meter supports 1, 2 or 3 point pH calibration on either manually entered pH buffer values or automatically temperature compensated buffers to DIN 19 266, JIS Z 8802 and NIST.

Powerful data logging capabilities are included with the ability to store up to 500 readings either manually, at timed intervals or on alarm events.


Data Sheet
Manual


For larger views, please click on the small photos above.

Ordering Information

352 001 - Model 3520 supplied with glass bodied combined pH electrode with ATC (924 005), ATC probe (027 500), electrode holder, BNC shorting plug (009 146), 4, 7 and 10 pH buffer sachets, power supply (UK) , condensed operating instructions and instruction manual.

352 101 - Model 3520 supplied with glass bodied combined pH electrode with ATC (924 005), ATC probe (027 500), electrode holder, BNC shorting plug (009 146), 4, 7 and 10 pH buffer sachets, power supply (US) , condensed operating instructions and instruction manual.

352 201 - Model 3520 supplied with glass bodied combined pH electrode with ATC (924 005), ATC probe (027 500), electrode holder, BNC shorting plug (009 146), 4, 7 and 10 pH buffer sachets, power supply (European) ,condensed operating instructions and instruction manual.

352 301 - Model 3520 supplied with glass bodied combined pH electrode with ATC (924 005), ATC probe (027 500), electrode holder, 4, 7 and 10 pH buffer sachets, power supply (230V leaded) , condensed operating instructions and instruction manual.



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
