HomeGas AnalysersBoiler/Flue › Kane 425 Boiler Analyser

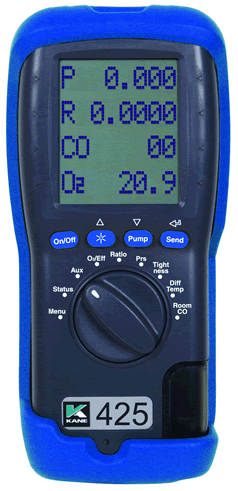

Kane 425 Boiler Analyser


This product is now obsolete and has been replaced by the Kane 455 Boiler Analyser.

Stress levels of Heating Engineers must be at a record high due to the complexity of modern high efficiency boilers and the increasing level of regulation and paperwork. Designed to be 'the most user friendly 5 in 1 analyser available', the new KANE 425 combustion analyser is the perfect remedy.

A simple rotary switch enables the engineer to quickly view readings including CO/CO2 ratio, combustion, efficiency, differential pressure and differential temperature or to perform a tightness test or a room CO build-up test. On screen prompts guide the user where necessary. A plug-in gas leak detector option is also available.

Live or stored test reports can be printed using an infra-red printer or sent to a laptop or PDA via the Bluetooth option.

The outstanding feature of the Kane 425 is the high accuracy and stability of its pressure readings. Difficult tasks such as measuring flue draught or setting the differential pressure of air/fuel ratio valves can be performed with confidence.

Battery life is typically 12 hours when fitted with either alkaline or rechargeable NiMH batteries. A mains charger and a 12v in-vehicle charger are available.

Features:

  Four line backlit display controlled by rotary switch
  Protective rubber sleeve with integral magnet for 'hands free' use
  O2, CO, CO2, CO/CO2 ratio, temperature and efficiency readings
  Multi-fuel (natural gas, propane, butane, LPG, 28/35 sec oils)
  High accuracy differential manometer
  Memory facility for reports
  Specific reports for combustion, pressure, tightness test, temperature and room CO build-up
  Infra-red output to optional printer
  Torch light
  Designed to meet EN50379, BS7927, BS7967, IGE/11/UP/1B and Benchmark

Options Include:

  Gas leak detector
  12v in-vehicle charger
  Infra-red printer, thermal paper
  Infra-red printer, plain or duplex paper
  Bluetooth



Measures:

  O2
  CO
  CO2
  CO/CO2
  Efficiency
  Diff. Temp
  Diff. Pressure


Data Sheet
Manual

Product Videos:

Introduction - Click Here
Initial Checks and Fresh Air Purge - Click Here
Combustion Tests - Click Here
Pressure Testing - Click Here
Gas Leak Detection - Click Here
Let-by and Tightness Test - Click Here
Room CO Testing - Click Here

Kane is now known as Kane International Ltd.

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
