Kingsmill Industries Air Termination


ELEVATION ROD


Kingsmill elevation rods are designed to be used with either the standard air terminal base, multi purpose base or the side mounted brackets and the multi point air terminal.


Rod Length (mm)Rod Diameter (mm)Weight (Kg)PART No.
500160.75CELV1605
1000161.50CELV1610
1500162.25CELV1615
2000163.0CELV1620
2500163.75CELV1625
3000164.50CELV1630



AIR TERMINALS


Kingsmill air terminals are designed to be used with either the standard air terminal base, multi purpose base or the side mounted brackets.


Rod Length (mm)Rod Diameter (mm)MaterialWeight (Kg)PART No.
50010COPPER0.33ATCR1005
100010COPPER0.65ATCR1010
50016COPPER0.75ATCR1605
100016COPPER1.50ATCR1610
150016COPPER2.25ATCR1615
200016COPPER3.00ATCR1620
250016COPPER3.75ATCR1625
300016COPPER4.50ATCR1630
50010ALUMINIUM0.11ATAR1005
100010ALUMINIUM0.20ATAR1010
50016ALUMINIUM0.29ATAR1605
100016ALUMINIUM0.58ATAR1610
150016ALUMINIUM0.87ATAR1615
200016ALUMINIUM1.16ATAR1620
250016ALUMINIUM1.45ATAR1625
300016ALUMINIUM1.74ATAR1630



MULTI POINTS

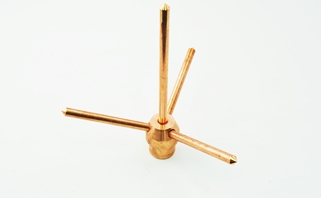

Kingsmill multi points are designed to be used with the Kingsmill elevation rod.


Rod Dia.(mm)MaterialWeight (Kg)PART No.
16COPPER0.75MPAT



AIR TERMINAL BASES


Kingsmill air terminal bases are designed to be used with the Kingsmill elevation rods.


Rod Dia.(mm)Conductor Size (mm)MaterialWeight (Kg)PART No.
1625COPPER0.50CATB16
1625ALUMINIUM0.17AATB16
108 or 25 x 3ALUMINIUM0.15AATB10
1650mm2COPPER0.80CATB50
1670mm2COPPER0.75CATB70
1695mm2COPPER0.90CATB95



SIDE MOUNTED ROD BRACKETS

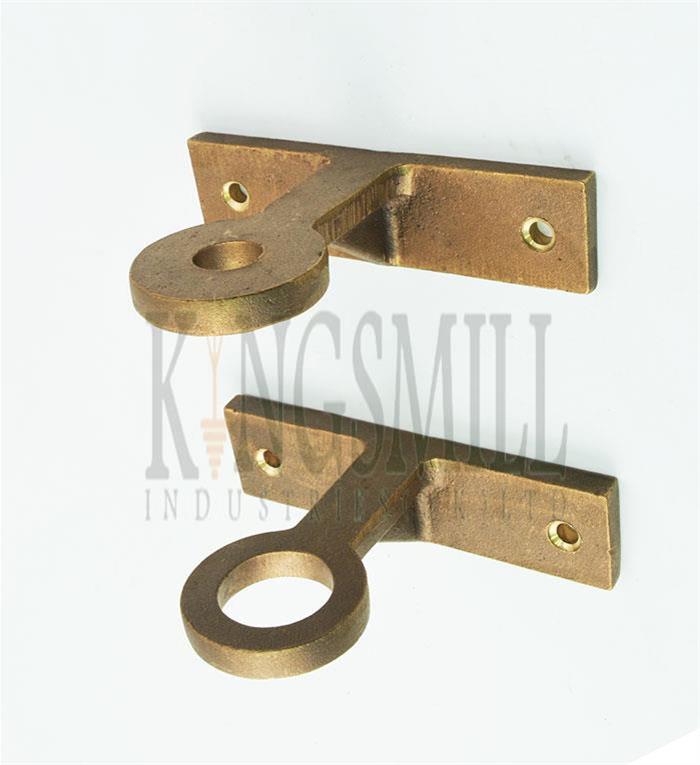

Kingsmill side brackets are designed to be installed to the side of the building where it is not possible to fit a conventional air terminal base. The side mounted brackets are to be used in conjunction with the rod to tape coupling.


Rod Dia.(mm)MaterialWeight (Kg)PART No.
16GUNMETAL0.91RBC16
16ALUMINIUM0.29RBA16



ROD TO TAPE COUPLING


Kingsmill rod to tape couplers are designed to be used in conjunction with our side mounted brackets.


Rod Dia.(mm)Conductor Size (mm)MaterialWeight (Kg)PART No.
1625 x 3GUNMETAL0.23RBCC16
1625 x 3ALUMINIUM0.08RBCA16
168GUNMETAL0.25RBCC-08



PUDDLE FLANGES

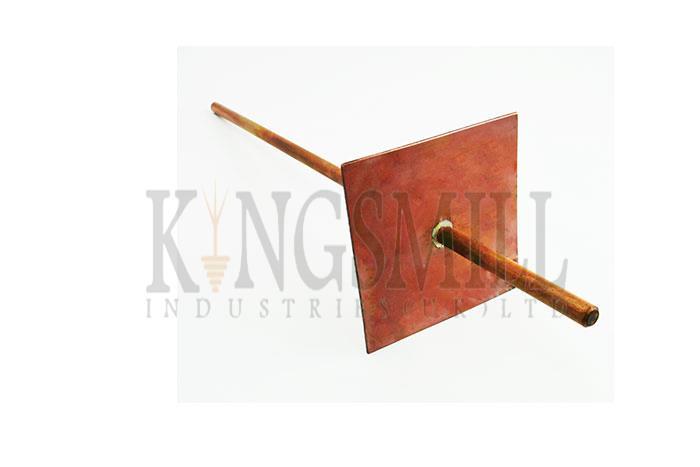

Kingsmill puddle flanges are designed to take lightning conductors through roofs etc.


Nominal Dim.(mm)MaterialWeight (Kg)PART No.
150 x 150 x 625COPPER1.54CPF
150 x 150 x 625ALUMINIUM0.50APF


Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
