Kingsmill Industries Clips


METALLIC DC TAPE CLIPS : FLAT/CIRCULAR CONDUCTOR


METALLIC DC TAPE CLIPS : FLAT/CIRCULAR CONDUCTOR


CONDUCTOR SIZE(mm)CONDUCTOR TYPEWEIGHT(Kg)PART No.
20 x 3BARE COPPER0.07MDC203
25 x 3BARE COPPER0.08MDC253
25 x 4BARE COPPER0.07MDC254
25 x 6BARE COPPER0.10MDC256
31 x 3BARE COPPER0.09MDC313
31 x 6BARE COPPER0.11MDC316
38 x 3BARE COPPER0.12MDC383
38 x 5BARE COPPER0.12MDC385
38 x 6BARE COPPER0.14MDC386
40 x 4BARE COPPER0.14MDC404
40 x 6BARE COPPER0.14MDC406
50 x 3BARE COPPER0.15MDC503
50 x 4BARE COPPER0.15MDC504
50 x 6BARE COPPER0.17MDC506
25 x 3PVC COPPER0.13MDC253P
25 x 6PVC COPPER0.10MDC256P
50 x 6PVC COPPER0.26MDC506P
25 x 3LEAD COVERED COPPER0.20MDC253LD
20 x 3BARE ALUMINIUM0.02MDA203
25 x 3BARE ALUMINIUM0.03MDA253
25 x 6BARE ALUMINIUM0.04MDA256
50 x 6BARE ALUMINIUM0.05MDA506
25 x 3PVC ALUMINIUM0.04MDA253
50 x 6PVC ALUMINIUM0.06MDA506
502BARE COPPER0.10HDCS50
702BARE COPPER0.10HDCS70
952BARE COPPER0.10HDCS95
8 DIABARE COPPER0.10HDCS08

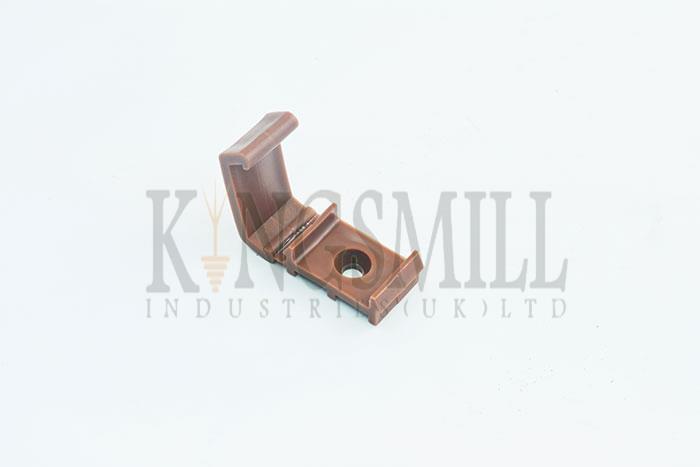

NON METALLIC DC CLIPS : FLAT CONDUCTOR


Kingsmill non-metallic DC clips are available in six different colours to match bare and PVC copper and aluminium tapes.


Conductor Size(mm)Conductor TypeColourWeight(Kg)PART No.
20 x 3BAREBROWN0.01PCBN203B
20 x 3BAREGREY0.01PCGY203B
25 x 3BAREBROWN0.01PCBN253B
25 x 3BAREGREY0.01PCGY253B
50 x 6BAREBROWN0.01PCBN506B
25 x 3PVCBROWN0.01PCBN253P
25 x 3PVCBLACK0.01PCBL253P
25 x 3PVCGREY0.01PCGY253P
25 x 3PVCGREEN0.01PCGN253P
25 x 3PVCSTONE0.01PCST253P
25 x 3PVCWHITE0.01PCWH253P

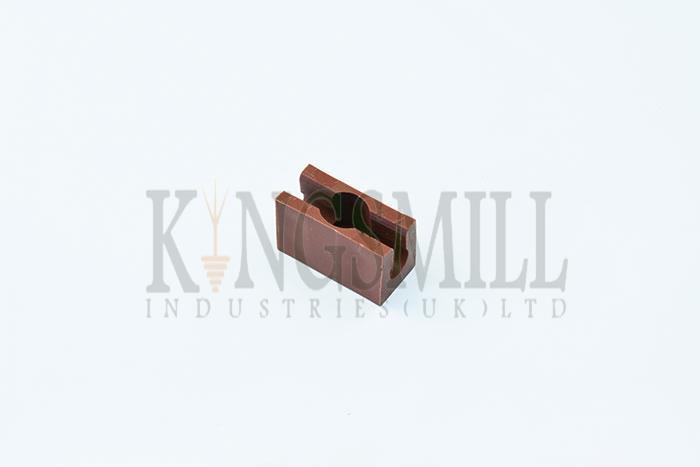

NON METALLIC DC CLIPS : CIRCULAR : PUSH IN TYPE


Kingsmill one piece push in clips are designed for ease of installation to suit 8mm bare and PVC sheathed circular conductors. Push in clips are UV stabilised to prevent degradation in cold weather conditions.


Conductor Dia.(mm)Conductor TypeColourWeight(Kg)PART No.
8BAREBROWN0.01PCBN08B
8BAREGREY0.01PCGY08B
8PVCBROWN0.01PCBN08P
8PVCGREY0.01PCGY08P
8PVCBLACK0.01PCBL08P
8PVCSTONE0.01PCST08P
8PVCWHITE0.01PCWH08P

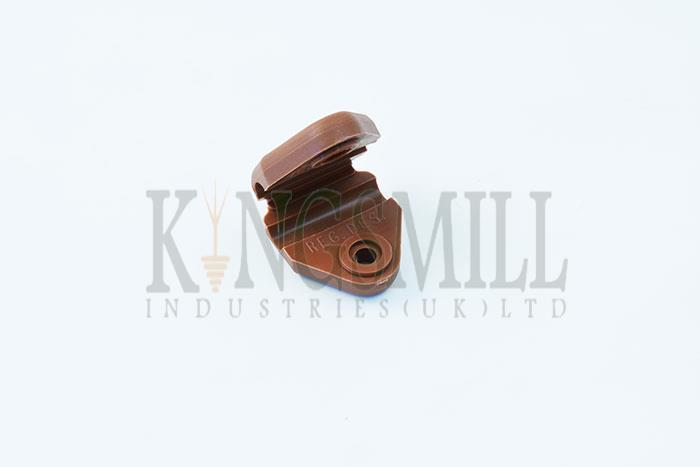

NON METALLIC DC CLIPS : CIRCULAR : WRAP OVER TYPE


Kingsmill wrap over type clips are designed for ease of installation to suit 8mm bare and PVC sheathed circular conductors.


Conductor Dia.(mm)Conductor TypeColourWeight(Kg)PART No.
8BAREBROWN0.01PCBN08B/BUTT
8BAREGREY0.01PCGY08B/BUTT
8PVCBROWN0.01PCBN08P/BUTT
8PVCGREY0.01PCGY08P/BUTT
8PVCBLACK0.01PCBL08P/BUTT
8PVCSTONE0.01PCST08P/BUTT
8PVCWHITE0.01PCWH08P/BUTT

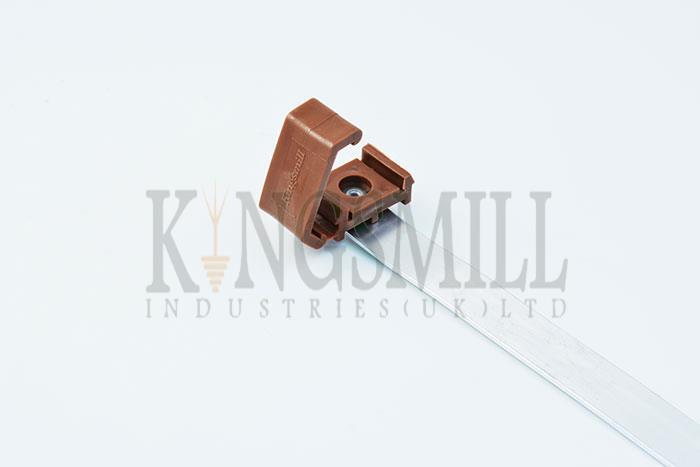

SLATE HOLD FAST : FLAT CONDUCTOR


Kingsmill slate holdfasts are used for the installation of conductor tape above the roof tiles without drillin holes. The aluminium tail slides under the roof tile and is fixed to the wooden beam or tile batten using proprietary galvanised nails, the clip then protrudes from the tile and offers a fixing for the tape.


Conductor Size(mm)Conductor TypeColourWeight(Kg)PART No.
25 x 3BAREBROWN0.05SHBN253B
25 x 3BAREGREY0.05SHGY253B
25 x 3PVCBROWN0.05SHBN253P
25 x 3PVCGREY0.05SHGY253P
25 x 3PVCBLACK0.05SHBL253P
25 x 3PVCSTONE0.05SHST253P
25 x 3PVCGREEN0.05SHGN253P
25 x 3PVCWHITE0.05SHWH253P

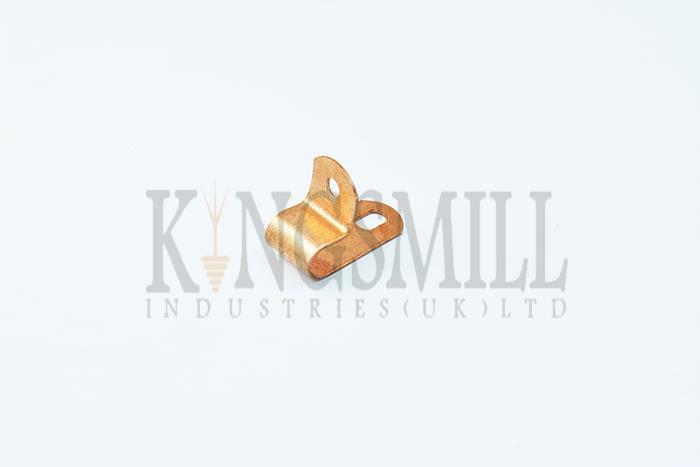

ONE HOLE CABLE CLIP : CIRCULAR CONDUCTOR


ONE HOLE CABLE CLIP : CIRCULAR CONDUCTOR


Conductor Dia.(mm)Conductor TypeWeight(Kg)PART No.
8COPPER0.01OH8C
8ALUMINIUM0.01OH8A
8COPPER PVC COVERED0.01OH10C
8ALUMINIUM0.01OH10A

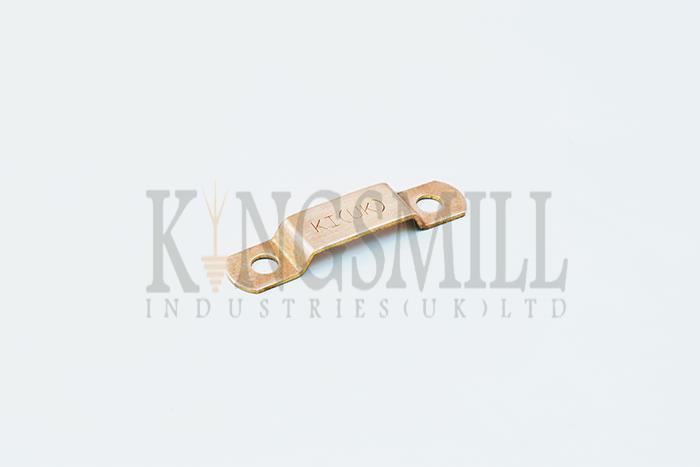

TAPE CLIP : FLAT CONDUCTOR


Kingsmill metal tape clips hold the tape flush to the surface and are fixed using two screws.


Conductor Size(mm)Conductor TypeMaterialWeight(Kg)PART No.
20 x 3BARECOPPER0.02TPC203
25 x 3BARECOPPER0.02TPC253
25 x 3BAREALUMINIUM0.02TPA203
25 x 3BAREALUMINIUM0.02TPA253
25 x 3PVCCOPPER0.02TPC253P

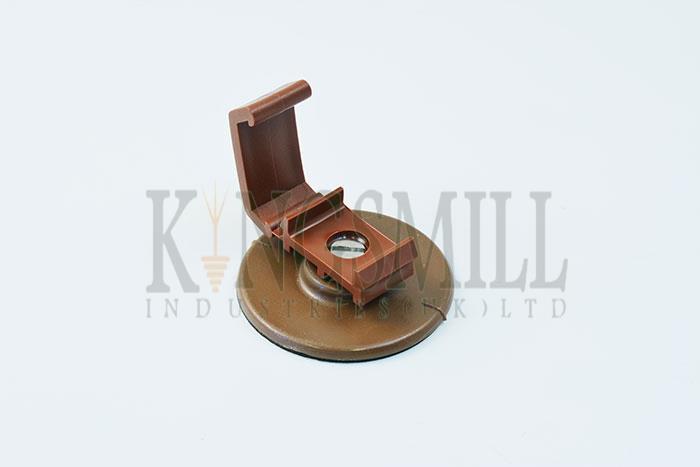

ADHESIVE CLIP : FLAT CONDUCTOR


ADHESIVE CLIP : FLAT CONDUCTOR


Conductor Size(mm)Conductor TypePVC ColourWeight(Kg)PART No.
25 x 3BAREBROWN0.03PCBN253B/AD
25 x 3BAREGREY0.03PCGY253B/AD
25 x 3PVC COVEREDBROWN0.03PCBN253P/AD
25 x 3PVC COVEREDGREY0.03PCGY253P/AD
25 x 3PVC COVEREDBLACK0.03PCBL253P/AD
25 x 3PVC COVEREDSTONE0.03PCST253P/AD
25 x 3PVC COVEREDWHITE0.03PCWH253P/AD

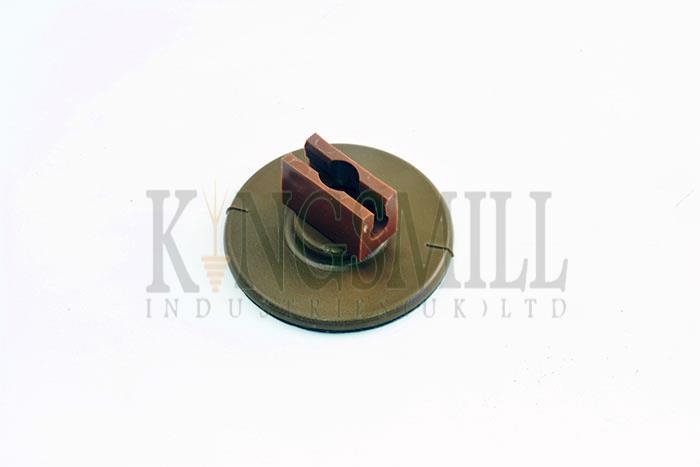

ADHESIVE CLIP : CIRCULAR CONDUCTOR


Kingsmill adhesive bases for both flat and circular are used where no mechanical fixing method can be achieved or allowed.


Conductor Dia.(mm)Conductor TypePVC ColourWeight(Kg)PART No.
8BAREBROWN0.02PCBN08B/AD
8BAREGREY0.02PCGY08B/AD
8PVC COVEREDBROWN0.02PCBN08P/AD
8PVC COVEREDGREY0.02PCGY08P/AD
8PVC COVEREDBLACK0.02PCBL08P/AD
8PVC COVEREDSTONE0.02PCST08P/AD
8PVC COVEREDWHITE0.02PCWH08P/AD


Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
