Kingsmill Industries Compression Connectors


TINNED COPPER CABLE LUGS

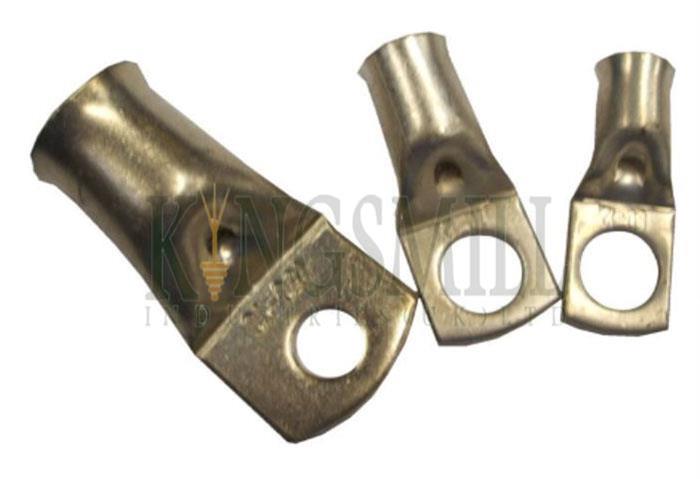

Kingsmill compression tube lugs are manufactured from high conductive electrolytic copper and are tin plated to provide excellent coorosion resistance.


Cable Size (mm2)Stud Size (X) (mm)Weight (Kg)PART No.
166.00.01LTC16,06
168.00.01LTC16,08
16100.01LTC16,10
16120.01LTC16,12
256.00.01LTC25,06
258.00.01LTC25,08
25100.01LTC25,10
25120.01LTC25,12
356.00.01LTC35,06
358.00.01LTC35,08
35100.01LTC35,10
35120.01LTC35,12
506.00.02LTC50,06
508.00.02LTC50,08
50100.02LTC50,10
50120.02LTC50,12
708.00.04LTC70,08
70100.04LTC70,10
70120.04LTC70,12
70140.04LTC70,14
70160.04LTC70,16
958.00.06LTC95,08
95100.06LTC95,10
95120.06LTC95,12
95140.06LTC95,14
95160.06LTC95,16
120100.06LTC120,10
120120.06LTC120,12
120140.06LTC120,14
120160.06LTC120,16
150100.09LTC150,10
150120.09LTC150,12
150140.09LTC150,14
150160.09LTC150,16
185120.11LTC150,12
185140.11LTC185,14
185160.11LTC185,16
240120.14LTC240,12
240140.14LTC240,14
240160.14LTC240,16
300120.17LTC300,12
300140.17LTC300,14
300160.17LTC300,16
400120.21LTC400,12
400140.21LTC400,14
400160.21LTC400,16



SPLIT BOLT CONNECTORS

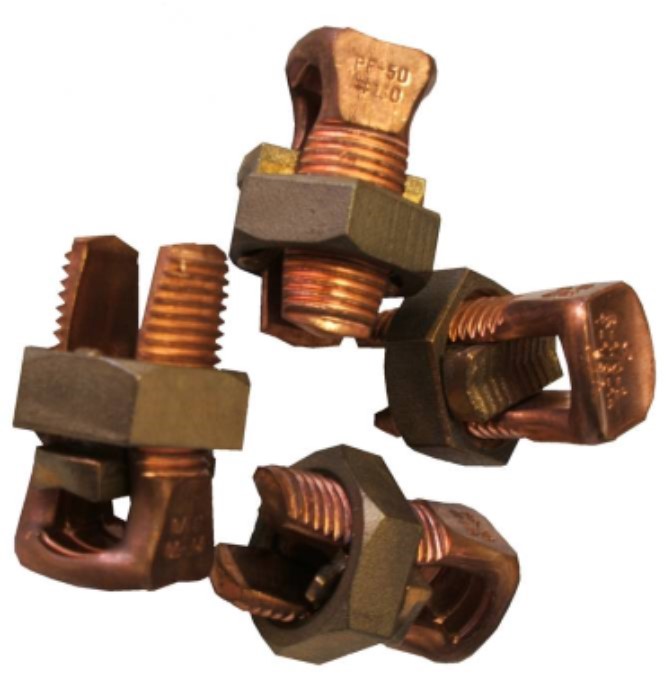

Kingsmill split bolt connectors will accept a range of stranded or solid circular conductors. No specialist tools are required for installation.


MAIN - MIN (mm2)MAX (mm2)TAP - MIN (mm2)MAX (mm2)WeightPART No.
4.0102.5100.02SBC8
10162.5160.03SBC4
16254.0250.04SBC2
25354.0350.06SBC1
35504.0500.09SBC10
35704.0700.14SBC20
50954.0950.17SBC30
501206.01200.18SBC40
951856.01850.35SBC50



TINNED C CRIMP CONNECTORS


9 x 10 x 6.43 - 12HCU10C6E
12 x 12.5 x 8.513 - 20HCU125C10E
17 x 19 x 11.519 - 32HCU70C16E
12 x 19.8 x 1317 - 35HCU95C25-10E
19 x 21 x 11.935 - 41HCU95C25PMEE
20 x 24.3 x 1533 - 56HCU150C25E
20 x 26.5 x 1553 - 70HCU150C35E
20 x 26.5 x 17.266 - 100HCU150C50E
28 x 33 x 2154 - 110HCU240C70-35E
28 x 34 x 2185 - 140HCU240C70
30 x 41 x 26105 - 170CC95C75E
30 x 41 x 2699 - 140CC95C95-35E
30 x 41 x 26150 - 190CC95C95E
30 x 45 x 28156 - 240CC150C120E
30 x 45 x 28225 -300CC150C150E
30 x 45 x 28260 - 300CC150C185-95E
35 x 54 x 33210 - 370CC185C185E
40 x 54 x 33.5387 - 480CC185C240E



C CRIMP CONNECTORS


Dimensions L x H x B (mm)Capacities Min - Max (mm2)DiesPART No.
9 x 10 x 6.43 - 12HCU10C6
12 x 12.5 x 8.513 - 20HCU125C10
17 x 19 x 11.519 - 32HCU70C16
12 x 19.8 x 1317 - 35HCU95C25-10
19 x 21 x 11.935 - 41HCU95C25PM
20 x 24.3 x 1533 - 56HCU150C25
20 x 26.5 x 1553 - 70HCU150C35
20 x 26.5 x 17.266 - 100HCU150C50
28 x 33 x 2154 - 110HCU240C70-35
28 x 34 x 2185 - 140HCU240C70
30 x 41 x 26105 - 170CC95C75
30 x 41 x 2699 - 140CC95C95-35
30 x 41 x 26150 - 190CC95C95
30 x 45 x 28156 - 240CC150C120
30 x 45 x 28225 -300CC150C150
30 x 45 x 28260 - 300CC150C185-95
35 x 54 x 33210 - 370CC185C185
40 x 54 x 33.5387 - 480CC185C240


Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
