Kingsmill Industries Conductor Network


SQUARE CLAMP : FLAT CONDUCTOR


Kingsmill square clamps are designed for a four way connection and are suitable for crossing over tapes, straight through joints or 'T' connections to form a continuous network of tapes. The base has a countersunk hole in the middle for fixing the clamp in place.


Conductor Size(mm)Conductor MaterialWeight(Kg)Part No.
25 x 3ALUMINIUM0.08SQCA253
25 x 3COPPER0.23SQCC253
25 x 6COPPER0.44SQCC256
31 x 3COPPER0.30SQCC313
40 x 6COPPER0.79SQCC406
50 x 6COPPER1.00SQCC506



SQUARE CLAMP : CIRCULAR CONDUCTOR


Kingsmill square clamps are designed for a four way connection and are suitable for crossing over cable, straight through joints or 'T' connections to form a continuous network of cables. The base has a countersunk hole in the middle for fixing the clamp in place.


Conductor Size (mm/mm2)Conductor MaterialWeight (Kg)PART No.
8 DIAALUMINIUM0.23SQCA08
50COPPER0.30SQCW50
70COPPER0.26SQCW70
95COPPER0.33SQCW95
8 DIACOPPER0.23SQCW08



SQUARE CLAMP : FLAT TO CIRCULAR CONDUCTOR


Kingsmill square clamps are designed for a four way connection and are suitable for crossing over tapes and cables, straight through joints or 'T' connections to form a continuous network of tapes and cables. The base has a countersunk hole in the middle for fixing the clamp in place.


Conductor Size (mm)Conductor Range (mm/mm2)Weight (Kg)Part No.
25 x 38 DIA0.16SQCC25308
25 x 3500.16SQCC25350
25 x 3700.14SQCC25370
25 x 3950.12SQCC25395



TEE CLAMP


Kingsmill tee clamps are designed for a three way connection.


Conductor Size (mm)Conductor Dia. (mm)Conductor MaterialWeight(Kg)PART No.

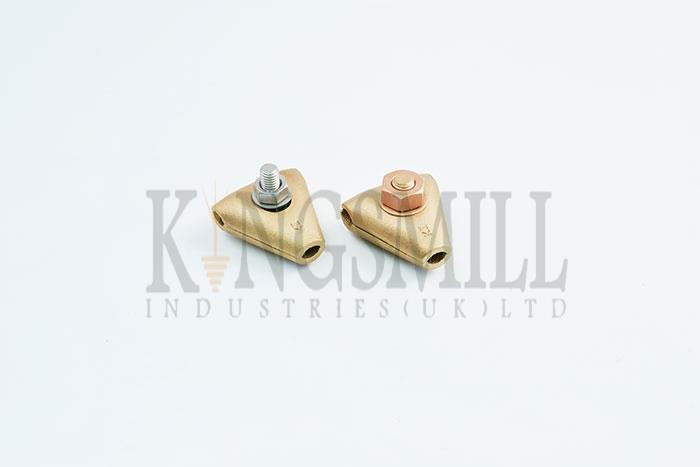

25 x 38COPPER0.17TEEC08
25 x 38ALUMINIUM0.07TEEA08



OBLONG TEST CLAMP


Kingsmill oblong test clamps are designed to join conductor tape to facilitate in the annual testing of the lightning protection system. The clamp is designed to allow the conductor to be overlapped and secured using bolts.


Conductor Size (mm)Conductor MaterialWeight (Kg)PART No.
25 x 3ALUMINIUM0.16OTCA253
25 x 3COPPER0.40OTCC253
31 x 6COPPER0.38OTCC316
40 x 5COPPER0.53OTCC405

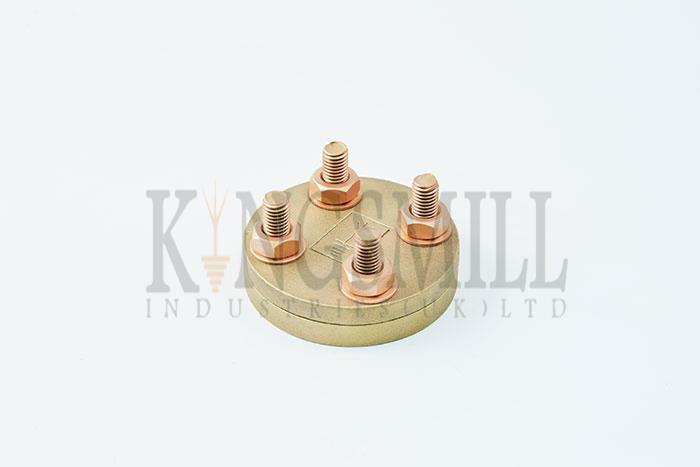

PLATE TYPE TEST CLAMP


Kingsmill plate type test clamps are used to form a disconnecting joint between the down conductor system and the earthing system. The conductors are secured by the top and bottom plates being clamped together.


Conductor Size (mm)Conductor MaterialWeight (Kg)PART No.
25 x 3COPPER0.90PTTC253



SCREW DOWN TEST CLAMP


Kingsmill screw down test clamps are designed to join 25 x 3 conductor tape to facilitate in the annual testing of the lightning protection system. The heavy duty lid simply screws on and off the threaded base.


Conductor Size (mm)Conductor MaterialWeight (Kg)PART No.

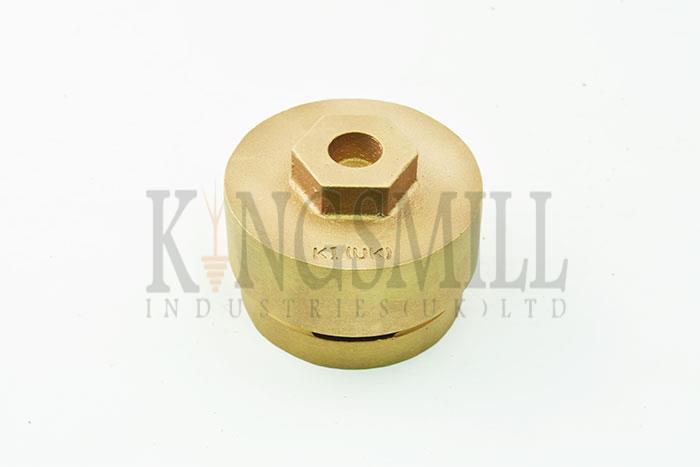

25 x 3COPPER0.84SDTC253



CABLE TEST CLAMP


Kingsmill cable test clamps are used to form a disconnecting joint between the down conductor system and the earthing system. The conductors are overlapped end to end and are secured together using two bolts.


Conductor Size (mm)Conductor MaterialWeight (Kg)PART No.

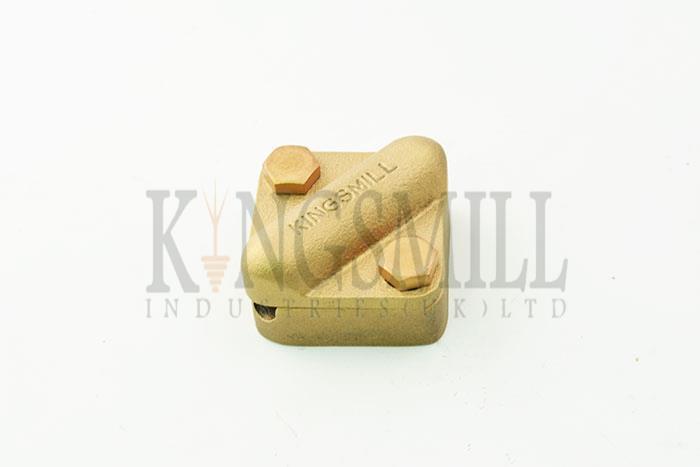

50COPPER0.40TC50
70COPPER0.40TC70
95COPPER0.40TC95



BI-METALLIC CONNECTOR


Kingsmill bi-metallic test clamps are designed to connect aluminium conductor to copper earth conductor.


Conductor Size (mm)MaterialWeight (Kg)PART No.

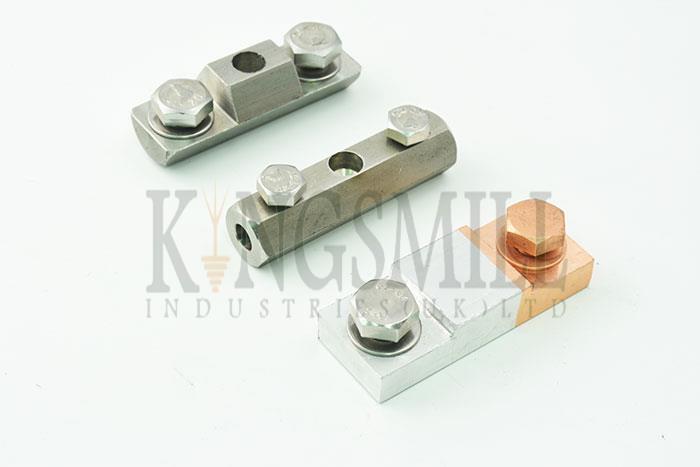

25 x 3STAINLESS STEEL0.18BM253HS
8 DIA. OR 50mm2STAINLESS STEEL0.18BM08HS
25 x 3 TO 8 DIA. OR 50mm2STAINLESS STEEL0.18BM08253SS
25 x 3COPPER/ALUMINIUM0.18BM253FC



TEST CLAMP : FLAT TO CIRCULAR CONDUCTOR


Kingsmill test clamps are used to form a disconnecting joint between either 8mm to 8mm diameter conductor or 8mm to 25 x 3mm conductor.


Conductor Dia. (mm)Conductor Size (mm)Conductor MaterialWeight (Kg)PART No.

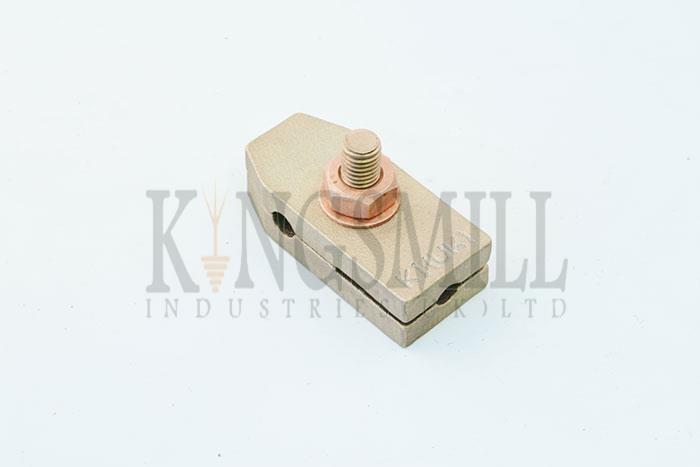

825 x 3COPPER0.20TC08
825 x 3ALUMINIUM0.09TA08
