Kingsmill Industries Conductors

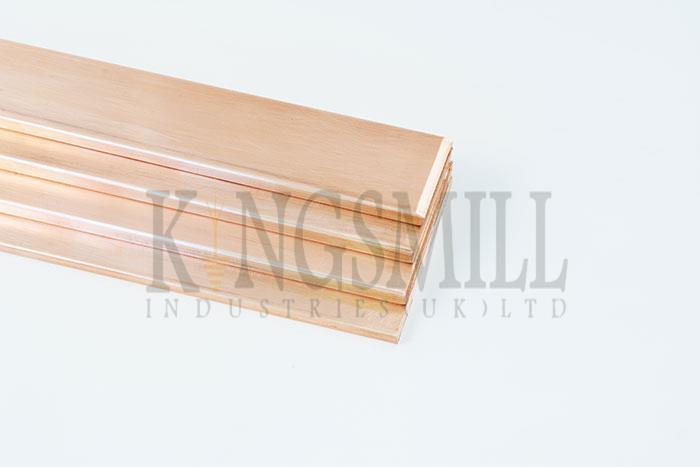

COPPER BAR : PLAIN


COPPER BAR : PLAIN


COND.SIZE (Y x X)(mm)C.S.A. (mm2)BAR LENGTH(m)WEIGHT(Kg/m)PART No.
25 x 37520.67CBHD2530
25 x 615021.34CBHD2560
31 x 39320.83CBHD3130
38 x 311421.01CBHD3830
38 x 622822.03CBHD3860
50 x 630022.67CBHD5060
50 x 1050024.45CBHD5010
60 x 660023.20CBHD6060
75 x 645024.00CBHD7506
100 x 660025.34CBHD1006

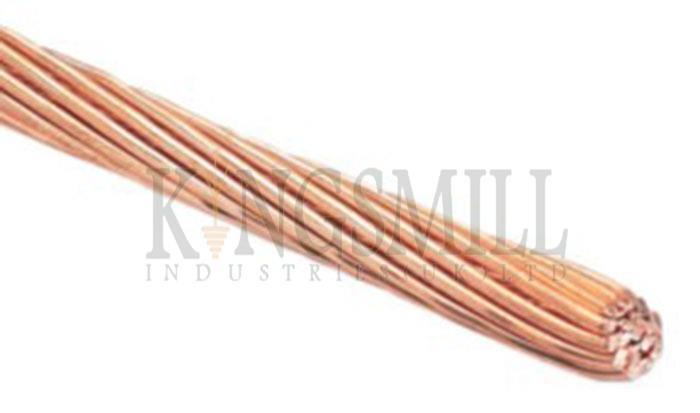

COPPER CABLE : BARE STRANDED


COPPER CABLE : BARE STRANDED


C.S.A. (mm2)STRANDING No./DIA(mm)NOMINAL DIAMETER (mm)WEIGHT(Kg/m)PART No.
6.07/1.043.120.05BSCW006
167/1.705.100.15BSCW016
257/2.146.420.23BSCW025
357/2.527.560.32BSCW035
5019/1.788.900.43BSCW050
7019/2.1410.700.62BSCW070
9519/2.5212.600.86BSCW095
12037/2.0314.211.09BSCW120
15037/2.2515.751.33BSCW150
18537/2.5217.641.67BSCW185
24061/2.2520.252.20BSCW240
30061/2.5222.682.76BSCW300
40061/2.8525.653.53BSCW400

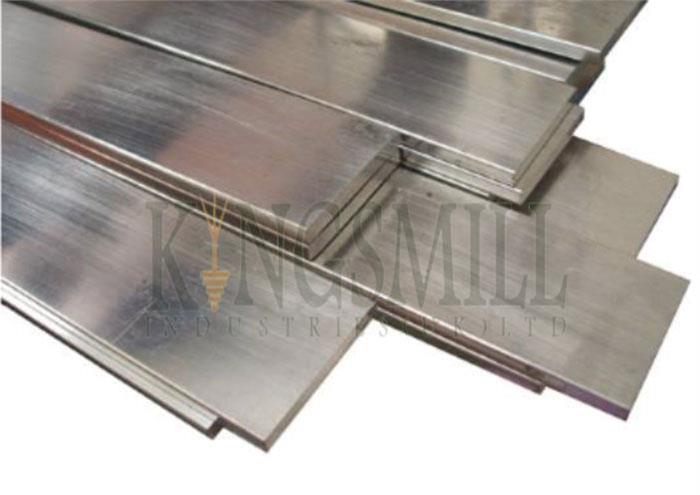

COPPER BAR : TINNED


COPPER BAR : TINNED


COND.SIZE (Y x X)(mm)C.S.A. (mm2)BAR LENGTH(m)WEIGHT(Kg/m)PART No.
25 x 37520.67CBHD25360/T
25 x 615021.34CBHD2560/T
50 x 630022.67CBHD5060/T

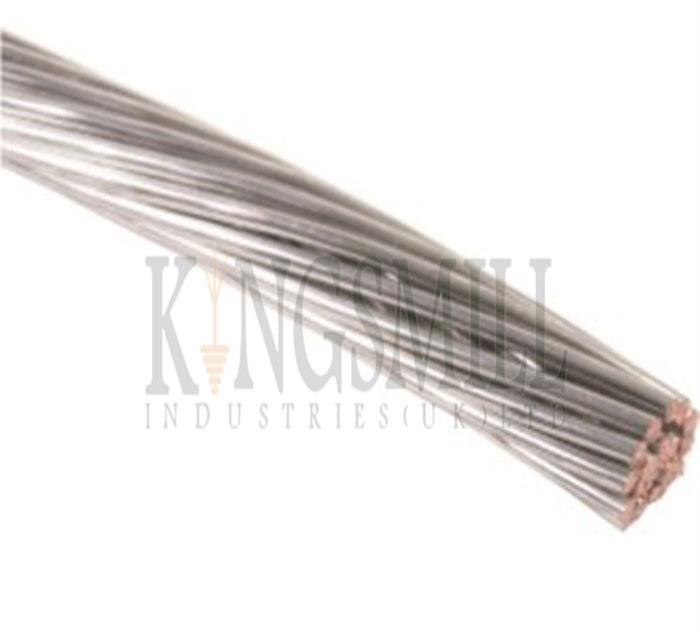

COPPER CABLE : TINNED STRANDED


COPPER CABLE : TINNED STRANDED


C.S.A. (mm2)STRANDING No./DIA(mm)WEIGHT(Kg/m)PART No.
167/1.700.15BSCW016/T
257/2.140.23BSCW025/T
357/2.520.32BSCW035/T
5019/1.780.43BSCW050/T
7019/2.140.62BSCW070/T
9519/2.520.86BSCW095/T
12037/2.031.09BSCW120/T
15037/2.251.33BSCW150/T
18537/2.521.67BSCW185/T
24061/2.252.20BSCW240/T
30061/2.522.76BSCW300/T
40061/2.853.53BSCW400/T

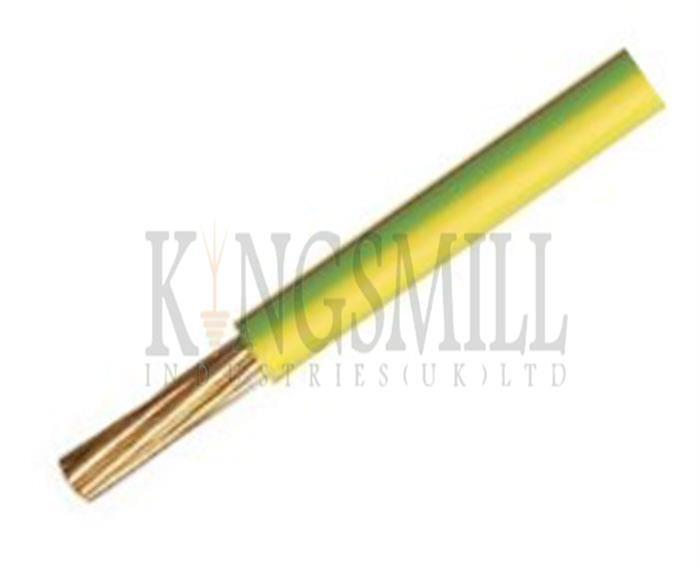

COPPER CABLE : GREEN/YELLOW PVC COVERED


COPPER CABLE : GREEN/YELLOW PVC COVERED


C.S.A. (mm2)STRANDING No./DIA(mm)WEIGHT(Kg/m)PART No.
167/1.700.15CCGY016
257/2.140.23CCGY025
357/2.520.32CCGY035
5019/1.780.43CCGY050
7019/2.140.62CCGY070
9519/2.520.86CCGY095
12037/2.031.09CCGY120
15037/2.251.33CCGY150
18537/2.521.67CCGY185
24061/2.252.20CCGY240
30061/2.522.76CCGY300
40061/2.853.53CCGY400

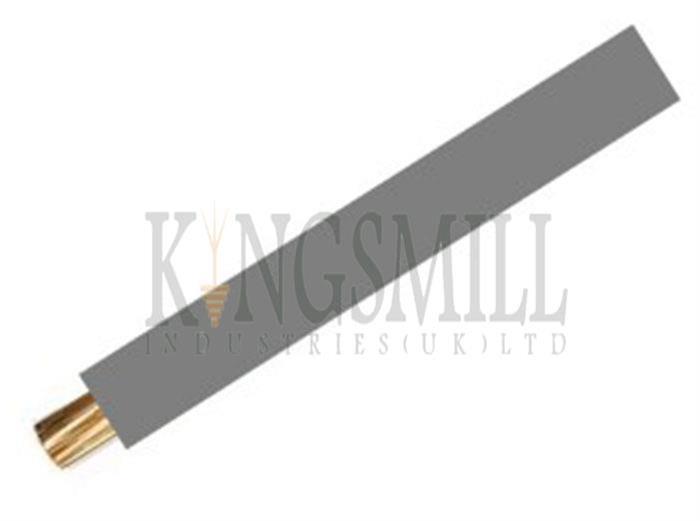

COPPER CABLE : LEAD COVERED STRANDED


COPPER CABLE : LEAD COVERED STRANDED


C.S.A. (mm2)STRANDING No./DIA(mm)WEIGHT(Kg/m)PART No.
18537/2.521.67BSCW185/LS
24061/2.252.20BSCW240/LS
30061/2.522.76BSCW300/LS
40061/2.853.53BSCW400/LS

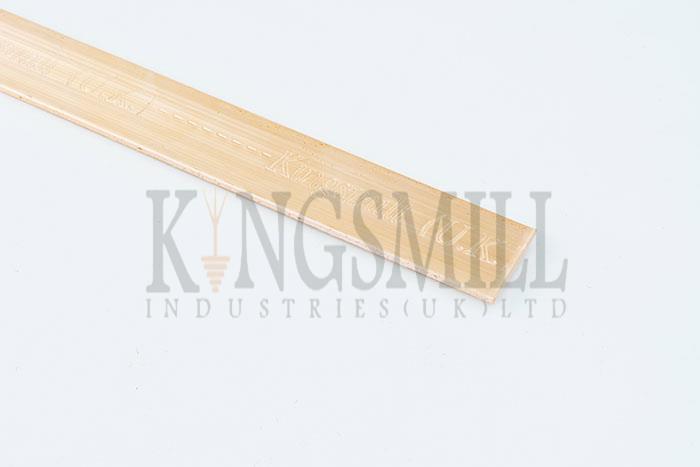

COPPER TAPE : BARE


Kingsmill copper tape is embossed 'Kingsmill (UK)' for identification purposes and is manufactured from high conductivity annealed copper.


COND.SIZE (Y x X)(mm)C.S.A.(mm)COIL SIZE (m)WEIGHT(Kg/m)PART No.
12.5 x 1.518.751000.17CTBA1215
12.5 x 337.501000.33CTBA1230
20 x 1.530.001000.27CTBA2015
20 x 360.001000.53CTBA2030
25 x 1.537.501000.33CTBA2515
25 x 375.0025 or 500.67CTBA2530
25 x 4100500.89CTBA2540
25 x 6150401.34CTBA2560
30 x 260.00500.53CTBA3020
30 x 390.00500.80CTBA3030
30 x 4120401.07CTBA3040
30 x 5150401.33CTBA3050
31 x 393.00500.83CTBA 3130
31 x 6186301.65CTBA3160
38 x 3114501.01CTBA3830
38 x 5190301.69CTBA3850
38 x 6228252.03CTBA3860
40 x 3120401.06CTBA4030
40 x 4160301.42CTBA4040
40 x 5200251.78CTBA4050
40 x 6240252.13CTBA4060
50 x 3150401.33CTBA5030
50 x 4200301.78CTBA5040
50 x 5250202.22CTBA5050
50 x 6300202.68CTBA5060

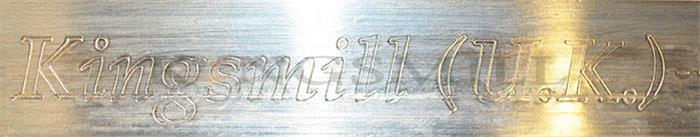

COPPER TAPE : TINNED


Kingsmill tinned copper tape is embossed 'Kingsmill (UK)' for identification purposes and is manufactured from high conductivity annealed copper.


COND.SIZE (Y x X)(mm)C.S.A.(mm)COIL SIZE (m)WEIGHT(Kg/m)PART No.
12.5 x 1.518.751000.17TCTD1215
12.5 x 337.501000.33TCTD1230
20 x 1.530.001000.27TCTD2015
20 x 360.001000.53TCTD2030
25 x 1.537.501000.33TCTD2515
25 x 375.0025 or 500.67TCTD2530
25 x 4100500.89TCTD2540
25 x 6150401.34TCTD2560
30 x 260.00500.53TCTD3020
30 x 390.00500.80TCTD3030
30 x 4120401.07TCTD3040
30 x 5150401.33TCTD3050
31 x 393.00500.83TCTD3130
31 x 6186301.65TCTD3160
38 x 3114501.01TCTD3830
38 x 5190301.69TCTD3850
38 x 6228252.03TCTD3860
40 x 3120401.06TCTD4030
40 x 4160301.42TCTD4040
40 x 5200251.78TCTD4050
40 x 6240252.13TCTD4060
50 x 3150401.33TCTD5030
50 x 4200301.78TCTD5040
50 x 5250202.22TCTD5050
50 x 6300202.68TCTD5060

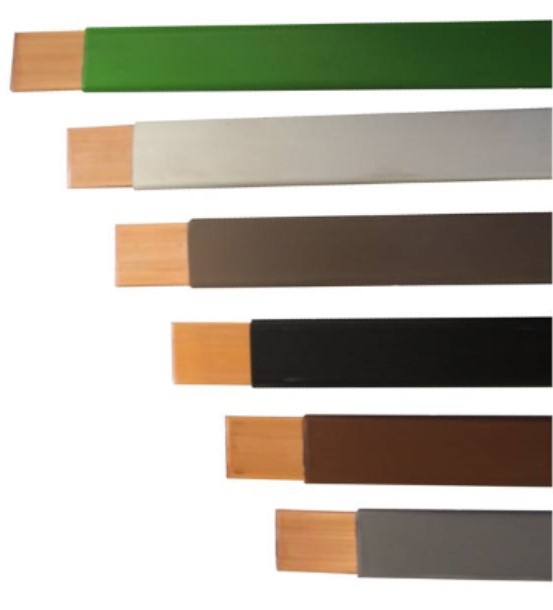

COPPER TAPE : PVC COVERED


COPPER TAPE : PVC COVERED


COND.SIZE (Y x X)(mm)COLOURCOIL SIZE (m)WEIGHT (Kg/M)PART No.
25 x 3BLACK250.78TCBL253
25 x 3BROWN250.78TCBN253
25 x 3GREEN250.78TCGN253
25 x 3GREY250.78TCGY253
25 x 3STONE250.78TCST253
25 x 3WHITE250.78TCWH253
25 x 6GREEN401.53TCGN256
50 x 6GREEN202.96TCGN506

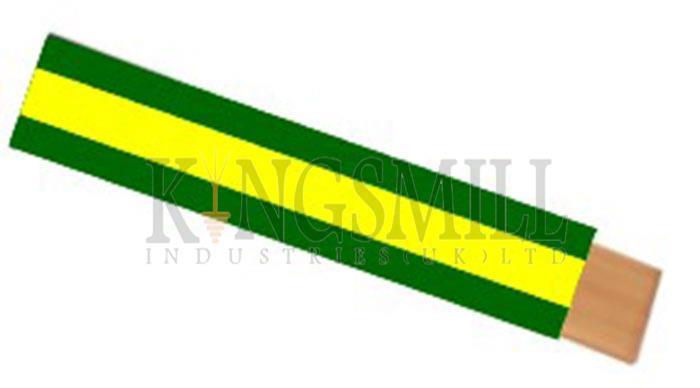

COPPER TAPE : GREEN / YELLOW COVERED


COPPER TAPE : GREEN / YELLOW COVERED


COND.SIZE (Y x X)(mm)COLOURCOIL SIZE (m)WEIGHT (Kg/M)PART No.
25 x 3GREEN/YELLOW250.78TCGN/Y253

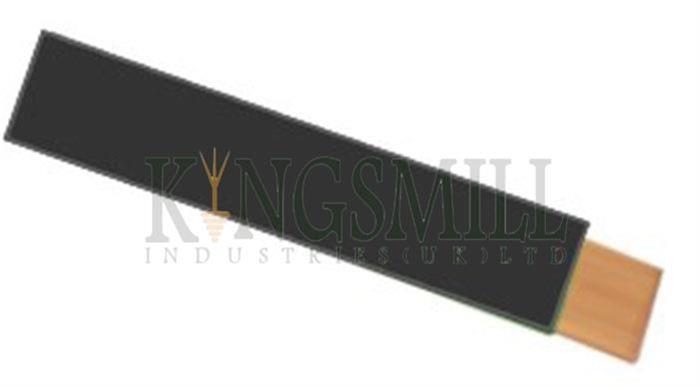

COPPER TAPE : LEAD COVERED


COPPER TAPE : LEAD COVERED


COND.SIZE (Y x X)(mm)COLOURCOIL SIZE (m)WEIGHT (Kg/M)PART No.
25 x 375252.56TCLD253

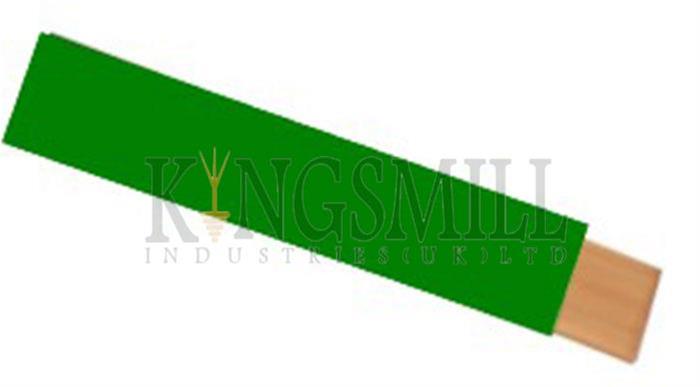

COPPER TAPE : LSOH (LOW SMOKE, ZERO HALOGEN) COVERED


COPPER TAPE : LSOH (LOW SMOKE, ZERO HALOGEN) COVERED


COND.SIZE (Y x X)(mm)COLOURCOIL SIZE (m)WEIGHT (Kg/M)PART No.
25 x 3GREEN250.77TCGN253LS
25 x 3GREEN500.77TCGN253LS/50
25 x 3GREEN401.53TCGN256LS
25 x 3GREEN202.95TCGN506LS

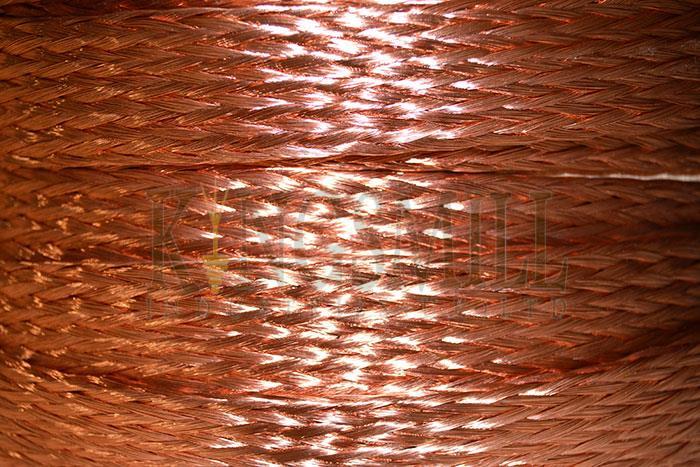

FLEXIBLE FLAT COPPER BRAID : PLAIN


Kingsmill flexible flat copper braid (plain) is suitable for applications of earth bonding. The braid can also be supplied as standard pre-cut and drilled braid bonds.


OVERALL NOMINAL SIZE (Y x X)(mm)C.S.A. (mm2)WEIGHT (Kg/m)PART No.
12 x 1.06.00.055FCB1201
15 x 1.5100.096FCB1515
19 x 2.5160.16FCB1925
25 x 3.0250.25FCB2530
25 x 3.5350.34FCB2535
30 x 5.0500.49FCB3050
32 x 6.0700.63FCB3260
37 x 6.0950.93FCB3760
45 x 6.01201.15FCB4560
50 x 8.01501.45FCB5080

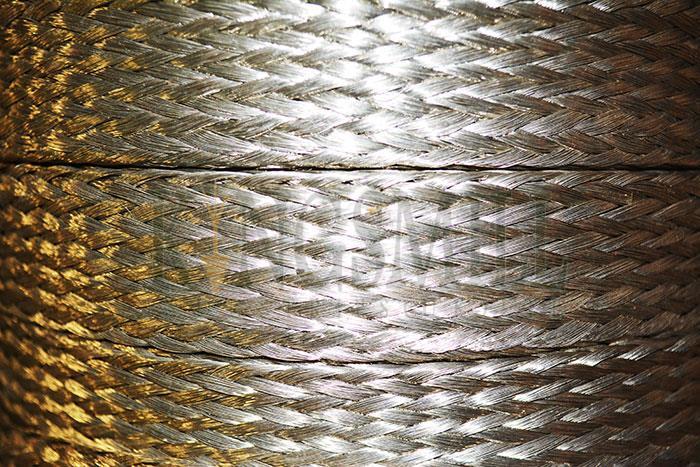

FLEXIBLE FLAT COPPER BRAID : TINNED


Kingsmill flexible flat copper braid (tinned) is suitable for applications of earth bonding. The braid can also be supplied as standard pre-cut and drilled braid bonds.


OVERALL NOMINAL SIZE (Y x X)(mm)C.S.A. (mm2)WEIGHT (Kg/m)PART No.
12 x 1.06.00.055FCBT1201
15 x 1.5100.096FCBT1515
19 x 2.5160.16FCBT1925
25 x 3.0250.25FCBT2530
25 x 3.5350.34FCBT2535
30 x 5.0500.49FCBT3050
32 x 6.0700.63FCBT3260
37 x 6.0950.93FCBT3760
45 x 6.01201.15FCBT4560
50 x 8.01501.45FCBT5080

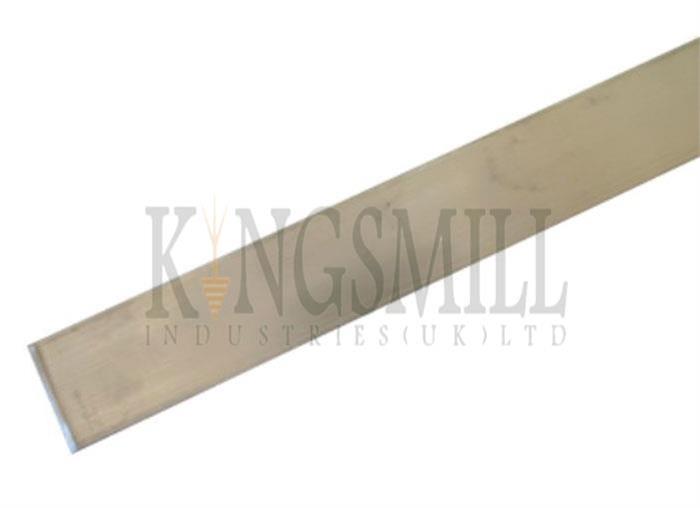

ALUMINIUM : BARE


ALUMINIUM : BARE


OVERALL NOMINAL SIZE (Y x X)(mm)COIL SIZE (m)WEIGHT(Kg/m)PART NO.
12.5 x 1.5500.05ATBA12515
20 x 3500.17ATBA2030
25 x 3500.21ATBA2530
30 x 3500.25ATBA3030
25 x 6500.42ATBA2560
40 x 6500.67ATBA4060
50 x 6500.85ATBA5060

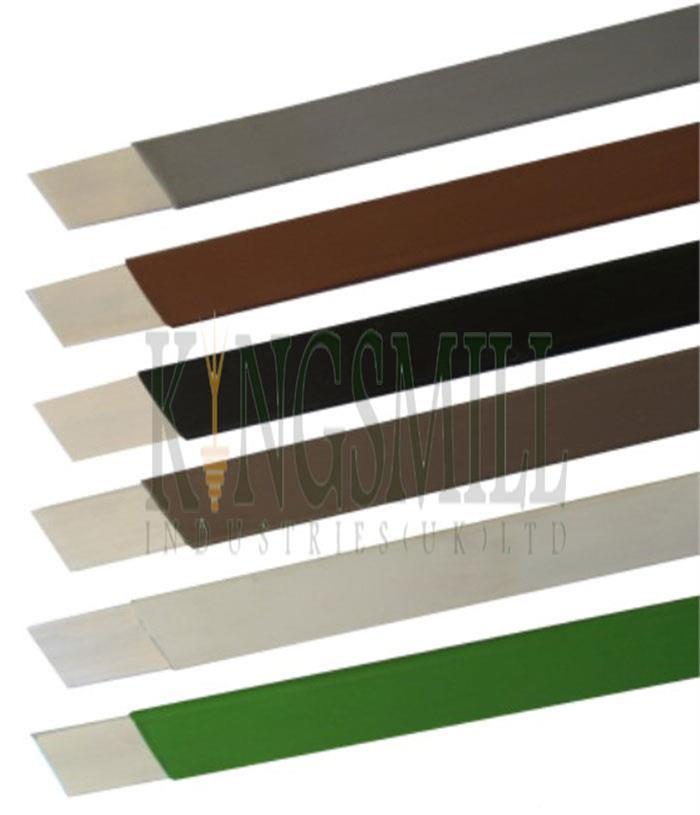

ALUMINIUM : PVC COVERED


ALUMINIUM : PVC COVERED


OVERALL NOMINAL SIZE (Y x X)(mm)COLOURCOIL SIZE (m)WEIGHT(Kg/m)PART No.
12.5 x 1.5BLACK500.09TABL12515
20 x 3BLACK500.25TABL2030
25 x 3BLACK500.31TABL253
25 x 3BROWN500.31TABN253
25 x 3GREEN500.31TAGN253
25 x 3+G440GREY500.31TAGY253
25 x 3STONE500.31TAST253
25 x 3WHITE500.31TAWH253

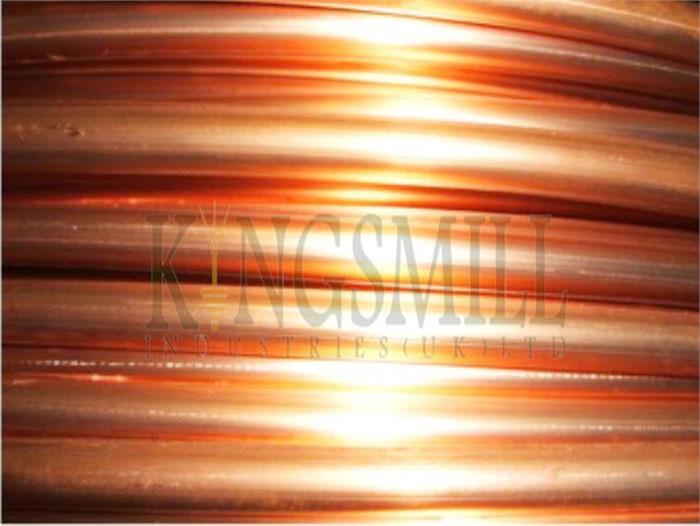

SOLID CIRCULAR COPPER : BARE


SOLID CIRCULAR COPPER : BARE


DIAMETER (X)(mm)COIL SIZE (m)WEIGHT(Kg/m)PART No.
8.0500.44CC08

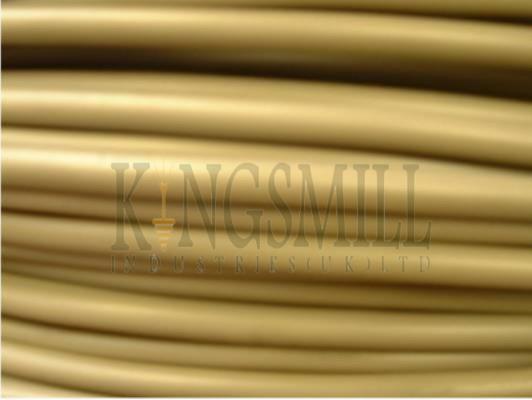

SOLID CIRCULAR COPPER : PVC COVERED


SOLID CIRCULAR COPPER : PVC COVERED


DIAMETER (X)(mm)COLOURCOIL SIZE (m)WEIGHT(Kg/m)PART No.
8BLACK500.49CCBL
8BROWN500.49CCBN
8GREY500.49CCGY
8STONE500.49CCST
8WHITE500.49CCWH



SOLID CIRCULAR ALUMINIUM : BARE


SOLID CIRCULAR ALUMINIUM : BARE


DIAMETER (X)(mm)COIL SIZE (m)WEIGHT(Kg/m)PART No.
8.0500.12CA08

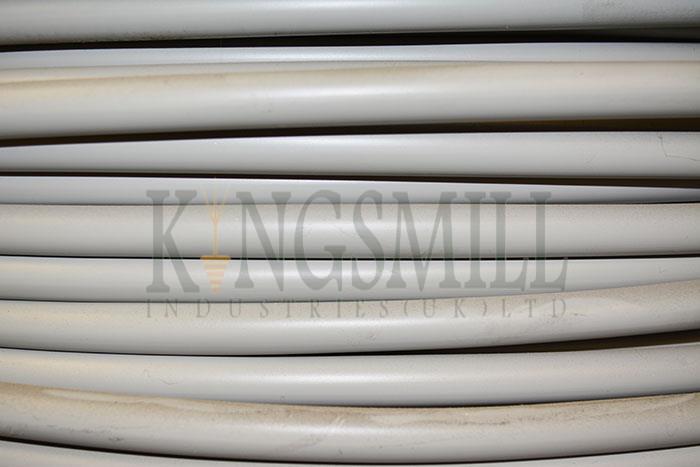

SOLID CIRCULAR ALUMINIUM : PVC COVERED


SOLID CIRCULAR ALUMINIUM : PVC COVERED


DIAMETER (X)(mm)COLOURCOIL SIZE (m)WEIGHT(Kg/m)PART No.
8BLACK500.18CABL
8BROWN500.18CABN
8GREY500.18CAGY
8STONE500.18CAST
8WHITE500.18CAWH

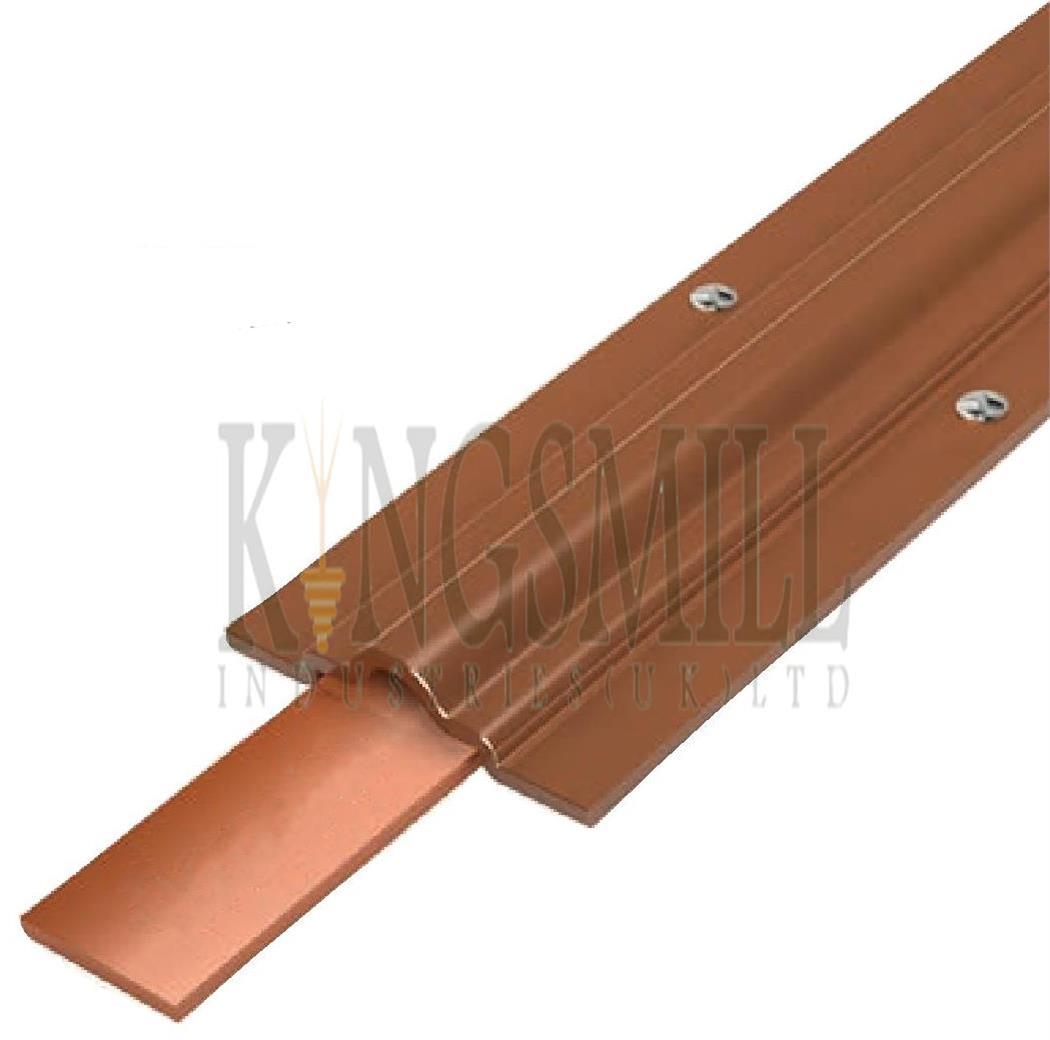

TAPE GUARDS/ CABLE GUARDS


Kingsmill plastic cable guards provide protection from accidental damage, vandalism and theft for ables up to 50mm diameter.


LENGTH (mm)WIDTH (mm)DEPTH(mm)WEIGHT(Kg)PART No.
3000105502.40PAVG


Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
