    Kingsmill Industries Earth Bars

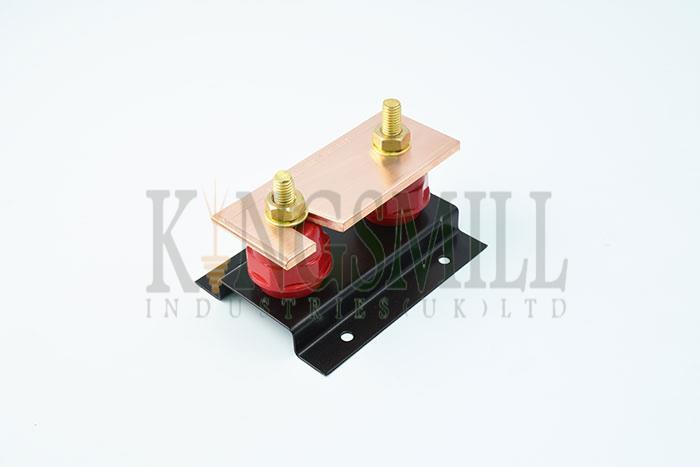

    DISCONNECTING LINK


    The disconnecting link is mainly used to offer a temporary break in the connection to earth allowing the testing of an earth rod whilst disconnecting from the lightning protection system.


    DESCRIPTIONDIMENSIONS(mm)PART No.
    DISCONNECTING LINK125 x 100 x 90ELINK


    DISCONNECTING LINK : TINNED


    The tinned disconnecting link is mainly used to offer a temporary break in the connection to earth allowing the testing of an earth rod whilst disconnecting from the lightning protection system.


    DESCRIPTIONDIMENSIONS(mm)PART No.
    DISCONNECTING LINK125 x 100 x 90ELINK/T


    STANDARD EARTH BAR


    Earth bars are an efficient and convenient way of providing a common earth point. Kingsmill earth bars are supplied with a powder coated base as standard. The standard connections are M10. Other sizes available upon request.


    DESCRIPTIONDIMENSIONS(mm)PART No.
    6 WAY EARTH BAR300 x 100 x 90EBAR6
    8 WAY EARTH BAR450 x 100 x 90EBAR8
    10 WAY EARTH BAR450 x 100 x 90EBAR10
    12 WAY EARTH BAR520 x 100 x 90EBAR12
    14 WAY EARTH BAR650 x 100 x 90EBAR14
    16 WAY EARTH BAR650 x 100 x 90EBAR16
    18 WAY EARTH BAR800 x 100 x 90EBAR18
    20 WAY EARTH BAR800 x 100 x 90EBAR20
    22 WAY EARTH BAR900 x 100 x 90EBAR22
    24 WAY EARTH BAR1050 x 100 x 90EBAR24
    26 WAY EARTH BAR1050 x 100 x 90EBAR26
    28 WAY EARTH BAR1250 x 100 x 90EBAR28
    30 WAY EARTH BAR1250 x 100 x 90EBAR30


    STANDARD EARTH BAR : TINNED


    Earth bars are an efficient and convenient way of providing a common earth point. Kingsmill earth bars are supplied with a powder coated base as standard. The standard connections are M10. Other sizes available upon request.


    DESCRIPTIONDIMENSIONS(mm)PART No.
    6 WAY EARTH BAR TINNED300 x 100 x 90EBAR6/T
    8 WAY EARTH BAR TINNED450 x 100 x 90EBAR8/T
    10 WAY EARTH BAR TINNED450 x 100 x 90EBAR10/T
    12 WAY EARTH BAR TINNED520 x 100 x 90EBAR12/T
    14 WAY EARTH BAR TINNED650 x 100 x 90EBAR14/T
    16 WAY EARTH BAR TINNED650 x 100 x 90EBAR16/T
    18 WAY EARTH BAR TINNED800 x 100 x 90EBAR18/T
    20 WAY EARTH BAR TINNED800 x 100 x 90EBAR20/T
    22 WAY EARTH BAR TINNED900 x 100 x 90EBAR22/T
    24 WAY EARTH BAR TINNED1050 x 100 x 90EBAR24/T
    26 WAY EARTH BAR TINNED1050 x 100 x 90EBAR26/T
    28 WAY EARTH BAR TINNED1250 x 100 x 90EBAR28/T
    30 WAY EARTH BAR TINNED1250 x 100 x 90EBAR30/T


    SINGLE DISCONNECTING LINK


    The single disconnecting link is mainly used to offer a temporary break in the connection to the earth allowing the inspection and testing of multiple earth rods / systems while disconnected from the lightning and earth system. Kingsmill earth bars are supplied with a powder coated base as standard.


    DESCRIPTIONDIMENSIONS(mm)PART No.
    6 WAY EARTH BAR C/W SINGLE DISC. LINK475 x 100 x 90EBAR6-1
    8 WAY EARTH BAR C/W SINGLE DISC. LINK575 x 100 x 90EBAR8-1
    10 WAY EARTH BAR C/W SINGLE DISC. LINK725 x 100 x 90EBAR10-1
    12 WAY EARTH BAR C/W SINGLE DISC. LINK825 x 100 x 90EBAR12-1
    14 WAY EARTH BAR C/W SINGLE DISC. LINK925 x 100 x 90EBAR14-1
    16 WAY EARTH BAR C/W SINGLE DISC. LINK1025 x 100 x 90EBAR16-1
    18 WAY EARTH BAR C/W SINGLE DISC. LINK1125 x 100 x 90EBAR18-1
    20 WAY EARTH BAR C/W SINGLE DISC. LINK1275 x 100 x 90EBAR20-1
    22 WAY EARTH BAR C/W SINGLE DISC. LINK1375 x 100 x 90EBAR22-1
    24 WAY EARTH BAR C/W SINGLE DISC. LINK1475 x 100 x 90EBAR24-1
    26 WAY EARTH BAR C/W SINGLE DISC. LINK1575 x 100 x 90EBAR26-1
    28 WAY EARTH BAR C/W SINGLE DISC. LINK1725 x 100 x 90EBAR28-1
    30 WAY EARTH BAR C/W SINGLE DISC. LINK1825 x 100 x 90EBAR30-1


    SINGLE DISCONNECTING LINK : TINNED


    The single disconnecting link is mainly used to offer a temporary break in the connection to the earth allowing the inspection and testing of multiple earth rods / systems while disconnected from the lightning and earth system. Kingsmill earth bars are supplied with a powder coated base as standard.


    DESCRIPTIONDIMENSIONS(mm)PART No.
    6 WAY EARTH BAR TINNED C/W SINGLE DISC. LINK475 x 100 x 90EBAR6-1/T
    8 WAY EARTH BAR TINNED C/W SINGLE DISC. LINK575 x 100 x 90EBAR8-1/T
    10 WAY EARTH BAR TINNED C/W SINGLE DISC. LINK725 x 100 x 90EBAR10-1/T
    12 WAY EARTH BAR TINNED C/W SINGLE DISC. LINK825 x 100 x 90EBAR12-1/T
    14 WAY EARTH BAR TINNED C/W SINGLE DISC. LINK925 x 100 x 90EBAR14-1/T
    16 WAY EARTH BAR TINNED C/W SINGLE DISC. LINK1025 x 100 x 90EBAR16-1/T
    18 WAY EARTH BAR TINNED C/W SINGLE DISC. LINK1125 x 100 x 90EBAR18-1/T
    20 WAY EARTH BAR TINNED C/W SINGLE DISC. LINK1275 x 100 x 90EBAR20-1/T
    22 WAY EARTH BAR TINNED C/W SINGLE DISC. LINK1375 x 100 x 90EBAR22-1/T
    24 WAY EARTH BAR TINNED C/W SINGLE DISC. LINK1475 x 100 x 90EBAR24-1/T
    26 WAY EARTH BAR TINNED C/W SINGLE DISC. LINK1575 x 100 x 90EBAR26-1/T
    28 WAY EARTH BAR TINNED C/W SINGLE DISC. LINK1725 x 100 x 90EBAR28-1/T
    30 WAY EARTH BAR TINNED C/W SINGLE DISC. LINK1825 x 100 x 90EBAR30-1/T


    TWIN DISCONNECTING LINK


    The twin disconnecting link is mainly used to offer a temporary break in the connection to the earth allowing the inspection and testing of multiple earth rods / systems while disconnected from the lightning and earth system. Kingsmill earth bars are supplied with a powder coated base as standard.


    DESCRIPTIONDIMENSIONS(mm)PART No.
    6 WAY EARTH BAR C/W TWIN DISC. LINK550 x 100 x 90EBAR6-2
    8 WAY EARTH BAR C/W TWIN DISC. LINK650 x 100 x 90EBAR8-2
    10 WAY EARTH BAR C/W TWIN DISC. LINK800 x 100 x 90EBAR10-2
    12 WAY EARTH BAR C/W TWIN DISC. LINK900 x 100 x 90EBAR12-2
    14 WAY EARTH BAR C/W TWIN DISC. LINK1000 x 100 x 90EBAR14-2
    16 WAY EARTH BAR C/W TWIN DISC. LINK1100 x 100 x 90EBAR16-2
    18 WAY EARTH BAR C/W TWIN DISC. LINK1200 x 100 x 90EBAR18-2
    20 WAY EARTH BAR C/W TWIN DISC. LINK1350 x 100 x 90EBAR20-2
    22 WAY EARTH BAR C/W TWIN DISC. LINK1450 x 100 x 90EBAR22-2
    24 WAY EARTH BAR C/W TWIN DISC. LINK1550 x 100 x 90EBAR24-2
    26 WAY EARTH BAR C/W TWIN DISC. LINK1650 x 100 x 90EBAR26-2
    28 WAY EARTH BAR C/W TWIN DISC. LINK1800 x 100 x 90EBAR28-2
    30 WAY EARTH BAR C/W TWIN DISC. LINK1900 x 100 x 90EBAR30-2


    TWIN DISCONNECTING LINK : TINNED


    The twin disconnecting link is mainly used to offer a temporary break in the connection to the earth allowing the inspection and testing of multiple earth rods / systems while disconnected from the lightning and earth system. Kingsmill earth bars are supplied with a powder coated base as standard.


    DESCRIPTIONDIMENSIONS(mm)PART No.
    6 WAY EARTH BAR C/W TWIN DISC. LINK550 x 100 x 90EBAR6-2
    8 WAY EARTH BAR TINNED C/W TWIN DISC. LINK650 x 100 x 90EBAR8-2
    10 WAY EARTH BAR TINNED C/W TWIN DISC. LINK800 x 100 x 90EBAR10-2
    12 WAY EARTH BAR TINNED C/W TWIN DISC. LINK900 x 100 x 90EBAR12-2
    14 WAY EARTH BAR TINNED C/W TWIN DISC. LINK1000 x 100 x 90EBAR14-2
    16 WAY EARTH BAR TINNED C/W TWIN DISC. LINK1100 x 100 x 90EBAR16-2
    18 WAY EARTH BAR TINNED C/W TWIN DISC. LINK1200 x 100 x 90EBAR18-2
    20 WAY EARTH BAR TINNED C/W TWIN DISC. LINK1350 x 100 x 90EBAR20-2
    22 WAY EARTH BAR TINNED C/W TWIN DISC. LINK1450 x 100 x 90EBAR22-2
    24 WAY EARTH BAR TINNED C/W TWIN DISC. LINK1550 x 100 x 90EBAR24-2
    26 WAY EARTH BAR TINNED C/W TWIN DISC. LINK1650 x 100 x 90EBAR26-2
    28 WAY EARTH BAR TINNED C/W TWIN DISC. LINK1800 x 100 x 90EBAR28-2
    30 WAY EARTH BAR TINNED C/W TWIN DISC. LINK1900 x 100 x 90EBAR30-2


    600AMP & 1000AMP EARTH BAR


    Earth bars are an efficient and convenient way of providing a common earth point. Kingsmill earth bars are supplied with a powder coated base as standard. EBAR600 - 2 x M06 connections, 4 x M10 connections. EBAR1000 - 9 x M08 connections, 5 x M12 connections.


    DESCRIPTIONDIMENSIONS(mm)WEIGHT(Kg)PART No.
    600amp EARTH BAR285 x 70 x 801.30EBAR600
    1000amp EARTH BAR520 x 90 x 903.24EBAR1000
    600amp TINNED EARTH BAR285 x 70 x 801.30EBAR600/T
    1000amp TINNED EARTH BAR520 x 90 x 903.24EBAR1000/T


    INSULATORS


    Insulator stand off type c/w 2 studs and 3 nuts.


    DESCRIPTIONSIZE(mm)WEIGHT(Kg)PART No.
    INSULATOR STAND OFF TYPE C/W 2 STUDS & 3 NUTSM10 x 350.15INSU1
    INSULATOR STAND OFF TYPEM10 x 510.09INSU4
    INSULATOR STAND OFF TYPEM10 x 350.08INSU2
    INSULATOR STAND OFF TYPEM06 x 250.03INSU3


    Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
