Kingsmill Industries Earthing

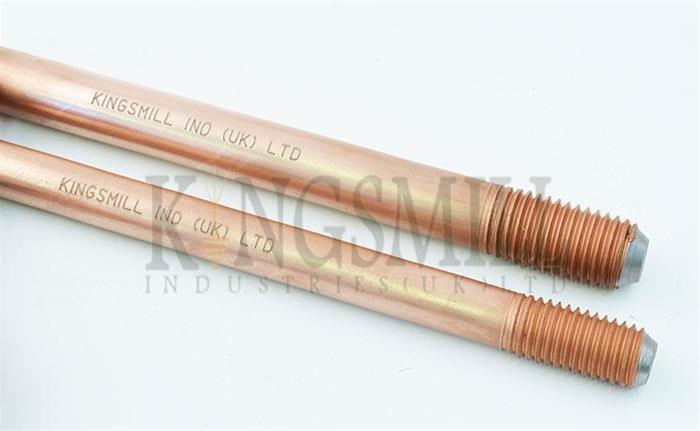

COPPERBOND EARTH ROD


Copperbond earth rods, deep driven, usually provide the most cost effective earth system. They are made from a low carbon, high tensile strength (600n/mm2 minimum) steel core with a coating of molecular bonded 99.9% pure electrolytic copper.


Nominal Diameter (in.:mm)Length(mm)Thread Size (mm)Shank Dia. (mm)Weight (Kg)PART No.
3/8:91200n/a9.50.62ERCB1004
5/8:1612005/8"14.21.53ERCB1604
5/8:1615005/8"14.21.88ERCB1605
5/8:1618005/8"14.22.29ERCB1606
5/8:1624005/8"14.23.00ERCB1608
5/8:1630005/8"14.23.79ERCB1610
3/4:2012003/4''17.22.19ERCB2004
3/4:2015003/4''17.22.73ERCB2005
3/4:2018003/4''17.23.27ERCB2006
3/4:2024003/4''17.24.35ERCB2008
3/4:2030003/4''17.25.44ERCB2010

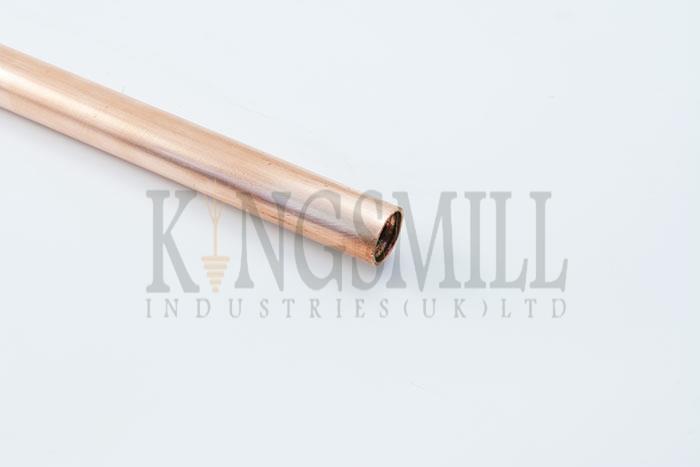

SOLID COPPER EARTH ROD


This product is used where soil conditions are more aggressive i.e. where there is high salt content. These rods have a tapped hole at each end which allows them to be joined together by means of a coupling dowel.


Length(mm)Internal Thread(mm)Dia.(mm)Weight(Kg)PART No.
1200M10151.88ERSC1504
1200M10162.00ERSC1604
1500M10162.49ERSC1605
1800M10162.99ERSC1606
2400M10163.99ERSC1608
3000M10164.99ERSC1610
1200M10203.34ERSC2004
1500M10204.18ERSC2005
1800M10205.02ERSC2006
2400M10206.70ERSC2008
3000M10208.38ERSC2010
1200M10255.18ERSC2504
1500M10256.48ERSC2505
1800M10257.78ERSC2506
2400M102510.37ERSC2508
3000M102512.97ERSC2510

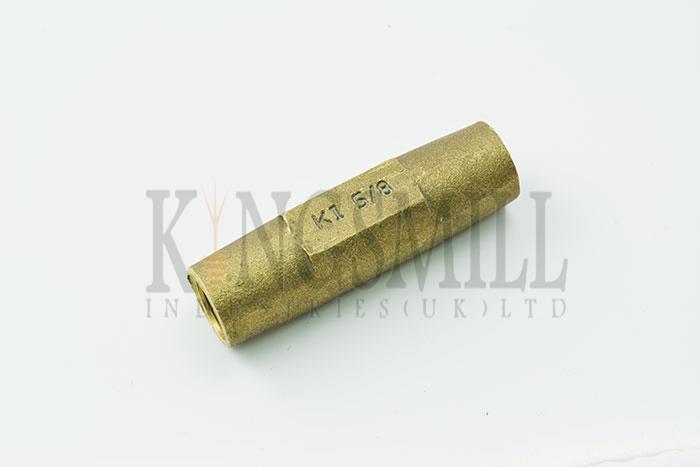

COUPLING : COPPERBOND ELECTRODE


Kingsmill couplers are of sufficient length and are counter bored to make certain the threads of the earth rods are completely enclosed.


Length(mm)Body Dia.(mm)Weight (Kg)PART No.
68220.08COUP16
79240.13COUP20

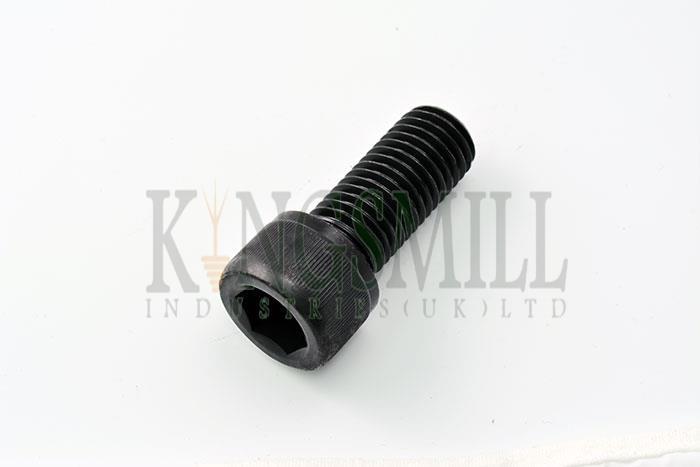

DRIVING STUD : COPPERBOND ELECTRODE


Kingsmill driving studs are made from high tensile steel with a socket-head cap screw.


Length(mm)Head Dia.(mm)Weight(Kg)PART No.
54220.08DRST16



DRIVING HEAD : SOLID COPPER EARTH ROD


Kingsmill driving heads are designed to protect the internal thread and top of the solid copper earth rod when being driven into the ground.


Length(mm)Thread Dia.(mm)Weight(Kg)PART No.
40100.02DRHD16
42100.05DRHD20
45100.09DRHD25
42100.05DRHD20
45100.09DRHD25



COUPLING DOWEL : SOLID COPPER EARTH ROD


Kingsmill coupling dowels are used to join solid copper earth rods.


Length(mm)Thread Dia.(mm)Weight(Kg)PART No.
40100.02DWPB10

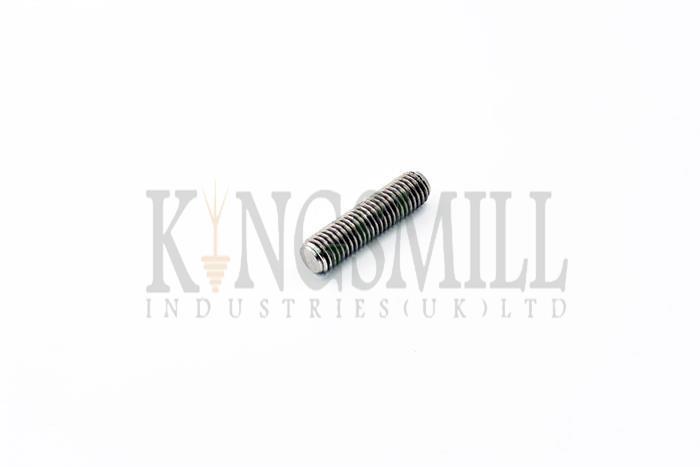

COUPLING DOWEL : STAINLESS STEEL EARTH ROD


Kingsmill coupling dowels are used to join stainless steel earth rods.


Length(mm)Thread Dia.(mm)Weight(Kg)PART No.
40100.02DWSS10

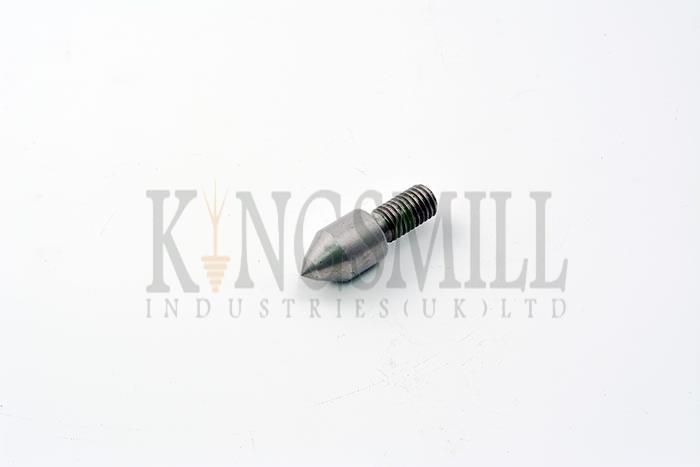

DRIVING SPIKE : SOLID COPPER EARTH ROD


Kingsmill driving spikes are designed to enable the solid copper earth rod to be driven in to the ground easily and protects the rod from being damaged.


Length(mm)Thread Dia.(mm)Weight(Kg)PART No.
40100.02DRSP16
55100.05DRSP20
60100.10DRSP25
55100.05DRSP20
60100.10DRSP25


Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
