Kingsmill Industries Earth Points


EARTH BOSS


Earth Boss for welding to steel vessel, tanks and structures etc. Connections to be wrapped with Denso tape to stop ingress of moisture. Comes complete with A2 Stainless Steel dowel, flat washer, spring washer and two nuts.


LENGTH(mm)DIAMETER(mm)THREAD SIZEWEIGHT(Kg)PART No.
2525M080.09EBOSS2525M08
3030M080.16EBOSS3030M08
3030M100.18EBOSS3030M10
3040M080.22EBOSS3040M08
3040M100.24EBOSS3040M10
3050M080.27EBOSS3050M08
3050M100.29EBOSS3050M10
4030M100.31EBOSS4030M10
4030M120.34EBOSS4030M12
4040M100.41EBOSS4040M10
4040M120.43EBOSS4040M12
4050M100.51EBOSS4050M10
4050M120.53EBOSS4050M12
5030M100.48EBOSS5030M10
5030M120.50EBOSS5030M12
5040M100.63EBOSS5040M10
5040M120.65EBOSS5040M12
5050M100.78EBOSS5050M10
5050M120.78EBOSS5050M12

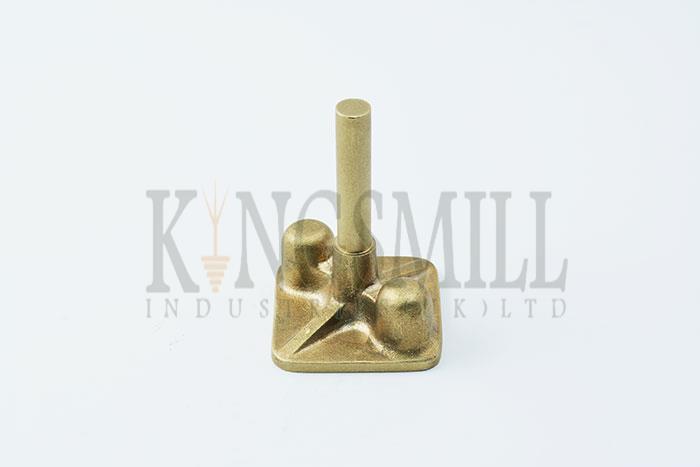

EARTH POINTS : TWO HOLE


Kingsmill earth points are installed to provide continuity and they also offer multiple bonding points.


COVER PLATETAILCOVER PLATE CONDUCTOR RANGEWEIGHT(Kg)PART No.
NONON/A0.30EBP2
YESNO25 X 3 TAPE, 70mm2 CABLE0.42EBP2P
YESNO25 X 3 TAPE, 50mm2 CABLE (8mm DIA.)0.42EBP2P-08

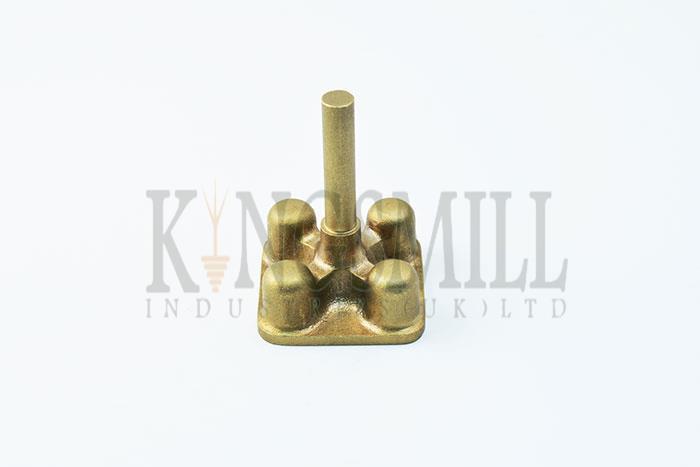

EARTH POINTS : FOUR HOLE


Kingsmill earth points are installed to provide continuity and they also offer multiple bonding points.


COVER PLATETAILCOVER PLATE CONDUCTOR RANGEWEIGHT(Kg)PART No.
NONON/A0.42EBP4

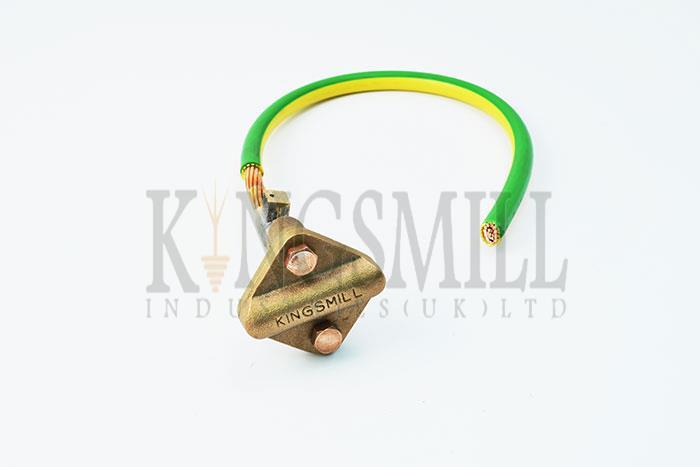

EARTH POINTS : COMPLETE WITH TAIL


Different length tails can be provided upon request.


COVER PLATETAILCOVER PLATE CONDUCTOR RANGEWEIGHT(Kg)PART No.
NO500N/A0.62EBP2-T
NO500N/A0.75EBP4-T
YES50025 X 3 TAPE, 70mm2 CABLE0.75EBP2P-T
YES50025 X 3 TAPE, 50mm2 CABLE (8mm DIA.)0.75EBP2P-08-T


Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
