Kingsmill Industries Earth Rod Clamps

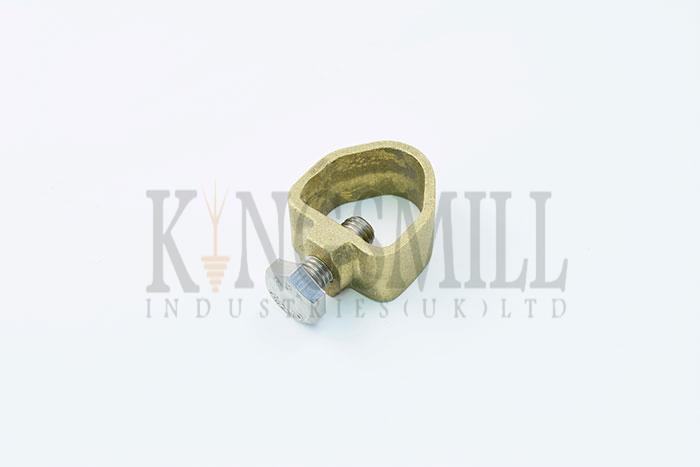

Rod To Tape Clamps - Type A


Kingsmill Rod to Tape Type 'A' clamps are designed to join various sizes of conductor tape to the earth electrode.


Rod DIA. (in:mm)Max Conductor Size (mm)Weight (kg)PART No.
5/8:16 3/4:2029x16 29x130.15CLA2530
5/8 : 16 3/4 : 2028 x 22 28 x 200.23CLA2510
5/8 : 16 3/4 : 2047 x 18 47 x 140.24CLA4012
5/8 : 16 3/4 : 2054 x 16 54 x 130.30CLA0560

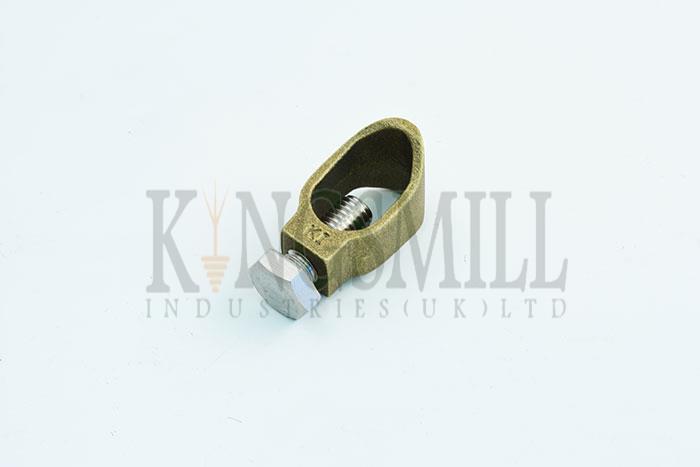

Rod To Cable Clamp - Jab Type


Kingsmill Rod to Cable Type JAB clamps are designed to join various sizes of cable to the earth electrode.


Rod Dia. (IN:mm)Mac Conductor Size (mm2)Weight (Kg)Part No.
5/8 : 16 3/4 : 206 - 700.05CLJA16
5/8 : 16 3/4 : 206-950.06CLJA20

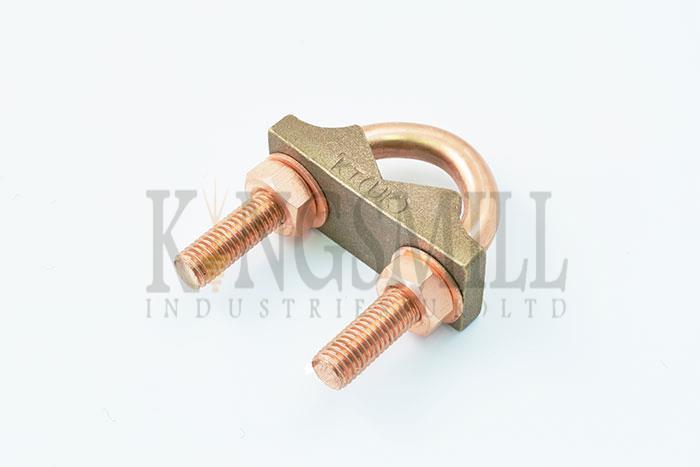

Rod To Tape Clamp - U Bolt Type Single Plate


Kingsmill rod to tape type U Bolt single plate clamps are designed to join various sizes of conductor tape to the earth electrode.

The clamps have a high resistance to corrosion and are mechanically strong to ensure a lasting connection.


Rod Dia. (IN : mm)Hole Centres (mm)Weight (Kg)PART No.
5/8 : 16370.20CLUB16
3/4 : 20370.21CLUB20
1 : 25370.22CLUB25
1 1/4 : 30430.23CLUB30
2 : 50640.42CLUB50

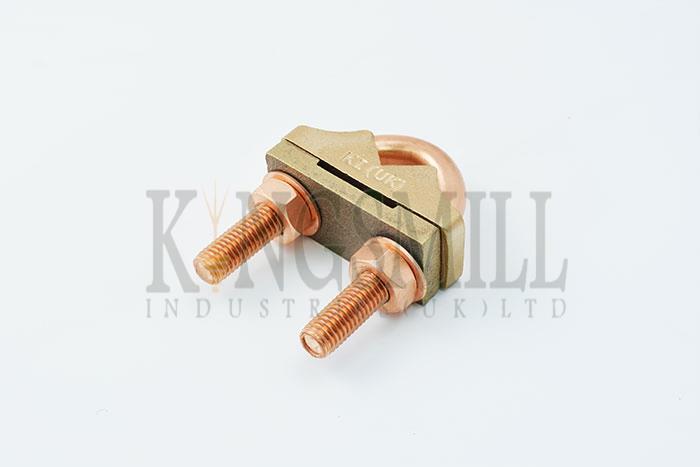

Rod To Tape Clamp - U Bolt Type Double Plate


Kingsmill 'U' Bolt Type Rod to Tape clamps are designed to join 25x3mm conductor tape to the earth electrode/rebar, without the need to drill the tape.


Rod Dia. (IN :mm)Tape Width (mm)Weight (Kg)PART No.
5/8 : 16250.30CLUB16-2
3/4 : 20250.34CLUB20-2
1 : 25250.38CLUB25-2

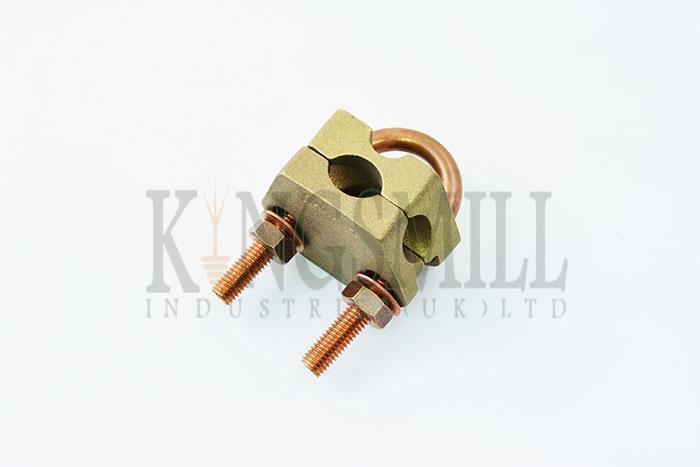

Rod To Cable Clamp - GUV Type


Kingsmill GUV Type clamps are designed to join various sizes of cable to earth electrodes/rebars, etc.


Rod Dia. (IN :mm)Conductor Range (mm2)Weight (Kg)Part No.
5/8 : 16 3/4 : 2016 - 700.38CGUV16
5/8 : 16 3/4 : 2070 - 1850.38CGUV70
5/8 : 16 3/4 : 20150 - 3000.62CGUV150

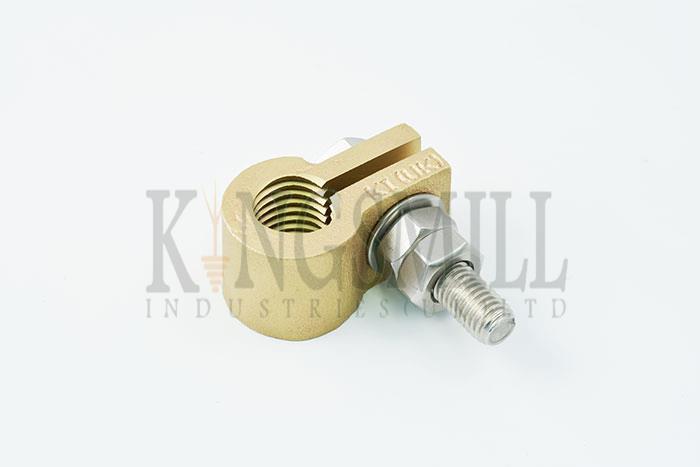

Rod To Cable Lug Clamp - Keyhole


Kingsmill Rod to Cable Lug Type clamps are designed to join various sizes of compression lugs to the earth electrodes.


Rod Dia. (IN: mm)Rod TypeBolt SizeWeight (Kg)PART No.
9.5mmCopperbondM080.08CLUG10
5/8'' UNCCOPPERBONDM100.20CLUG16
15mmSOLID COPPERM100.20CLUG15S
3/4'' UNCCOPPERBONDM100.35CLUG20
20mmSOLID COPPERM100.35CLUG20S


Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
