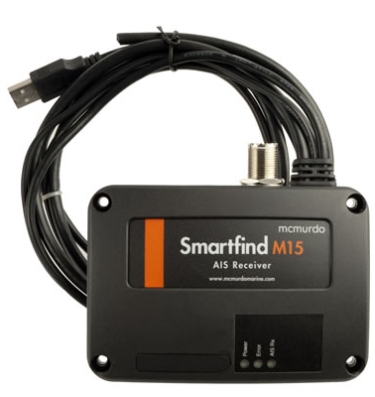

McMurdo Smartfind M10 & Smartfind M15 Range of Receivers and Class B Transponders


Offering high performance, at a low cost the Smartfind AIS electronics range brings important safety advantages of the Automatic Identification System (AIS) to a wider range of vessels than ever before.

Ideally suited for vessels, where the complexity of an AIS Class A Transponder is not necessary, the McMurdo Smartfind M10 AIS Class B Transponder and Smartfind M15 AIS receiver range will receive and process all AIS targets within 20 miles of the vessel, typical.

The Smartfind M10 AIS Class B Transponder also transmits vessel position information and has a built-in GPS receiver to determine the vessels position, speed and course; and once this is combined with other navigational information, it is automatically transmitted without any user interaction.

Engineered for flawless integration with a wide range of navigation systems, dedicated chart plotters and PC or Mac based software programs, the Smartfind AIS range have advanced interface capabilities, supporting both standard NMEA0183 interfaces as well as USB connectivity, they offer seamless integration with the vessel’s other navigation equipment. The Smartfind M10 AIS Class B Transponder also has state of the art NMEA2000 duplex interface capabilities to support the latest generation of NMEA 2000 navigation display devices.

The Smartfind M10, also has an SD card slot, which can be used as a data logger, enabling the capture of all messages - to assist in system and safety monitoring, including incident investigation. A 4Gb card will store approximately 30 day’s worth of data. The ‘Silent mode’ option, allows the user to temporarily stop the broadcast of identifying information on occasions where either privacy or security is required.



Datasheet

Description Smartfind M10Smartfind M10Smartfind M15S
AIS Type Class B Receiver Receiver
AIS transmitter Yes No No
Number of AIS Channels 2 2 2
USB Yes Mini socket Yes Yes
NMEA 0183 Independent 2 input, 2 output Independent 1 input, 1 output Independent 1 input, 1 output
Built-in VHF/AIS antenna splitter No No Yes
NMEA 2000 Yes No No
SD data logger Yes No No
Built-in GPS Yes No No


Ordering Information


21-200-001A - Smartfind M10 AIS Class B Transponder

21-300-001A - SMARTFIND M15 AIS Receiver



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
