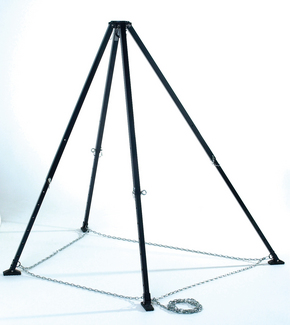

Miller Fall Protection - Quadpod

High grade aluminium quadpod with adjustable legs giving flexible positions for use on uneven terrain; Ideal for cliff top rescue or confined space access.


Adjustable and removal legs extending from 1.35 mtrs to 2.3 mtrs A chain can be fitted : Prevent the legs from spreading, including on uneven terrain. Safe working load is 500 kg.


Lightweight 4 legged quadpod ideal for cliff-top rescue and confined space, fully adjustable, and all its unique features, provide the operator with unequalled versatility and reliability. Self Tailing Winch

Two speed rope winch for use in conjunction with Quadpod.

Self tailing winch keeps both hands free to turn the handle. Power Rib system grips the rope for greater safety. At 500kg the grip will start to creep without allowing any overload. Designed for use with 11mm Kernmantel rope.

This treuil can be use for cliff-top rescue, confined space or ascension purposes.

Data Sheet

Ordering Information

1007027 - QUADPOD; Four legged style tripod with removable and adjustable legs extending from 135cm to 230cm, can be used with Self tailing winch EN795B

1007029 - Self Tailing Winch; Two speed rope winch for use in conjunction with Quadpod

1013260 - Carry bag for use with Quadpod

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
