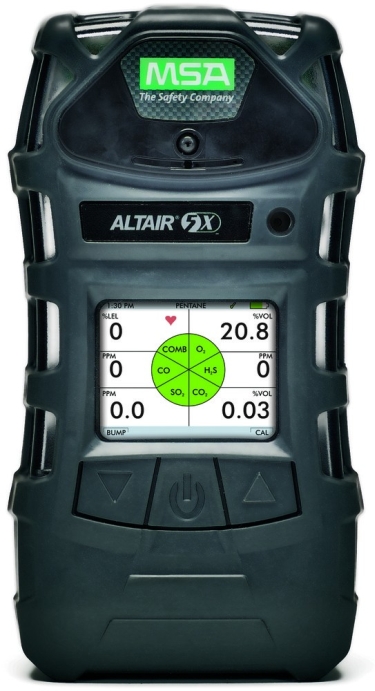

MSA Altair 5x Multigas Detector


WORKERS who face potentially dangerous situations deserve the best protection available. At MSA, we work tirelessly to build smarter, better gas detection instruments that people across the world rely on. First we introduced MSA’s advanced technology with the ALTAIR 4X Multigas Detector with XCell Sensors. Now we’re proud to introduce the expansion of the most advanced technology available in any portable gas detector on the market: The ALTAIR 5X Multigas Detector with XCell Sensor Technology and PID option.

Life-Saving Performance:

  Large buttons and bright display enable quick and easy operation even while wearing gloves
  If a user becomes disabled due to unforeseen hazards, the MotionAlert sensor will activate after 30 seconds
  The InstantAlert feature enables users to manually alert others of a dangerous situation with the push of a button
  Compatible with Galaxy Test System
  MSA Link ™ Software-ready
  Global approvals for worldwide acceptance
  Glow-in-the-dark housing for mining and confined space applications

Lasting Durability:

  3-year back-to-back instrument warranty includes LEL, O., CO, H.S, SO., NO. XCell and IR sensors
  2-year warranty on NH. and Cl.; minimum 12-month warranty on other sensors
  Withstands extreme impacts with rugged polycarbonate housing
  Passes 10-foot drop test
  The IP65-rated ALTAIR 5X is both dust-tight and water-tight

Built on Durability - The ALTAIR 5X Multigas Detector for combustible gases in % LEL and/or % volume range, O. and toxic gas detection is as tough and functional as it looks. A rugged, rubberized polycarbonate housing provides unsurpassed durability, including the ability to survive a 3-meter drop. Inside, a field-proven integral pump provides consistent gas flow without the problems of externallyattached components. Ergonomic design, glove-friendly buttons and high-contrast display make the ALTAIR 5X Multigas Detector easy to use for all applications.



Data Sheet
Frequently Asked Questions
Manual

Ordering Codes

ALTAIR 5X Multi-Gas Detector with 3-year warranty, data logging, charger, integral pump and tubing

LEL, O2, CO, H2S, 0.10 % CO2 - colour display 10119611
LEL, O2, CO, H2S, NH2 - colour display 10119632
LEL, O2, CO, H2S, SO2 - colour display 10119616
LEL, O2, CO, H2S, PID - colour display 10166730
LEL, O2, CO, H2S - monochrome display 10119600

ALTAIR 5X GALAXY GX2 Automated Test System

1 Cylinder, Charging 10128635
Up to 4 Cylinders, Charging 10128634
1 Cylinder, Non-charging 10128637
Up to 4 Cylinders, Non-charging 10128636

Calibration Gas

Gas can (58 l) (1.45 % CH2,15.0 % O2, 60 ppm CO, 20 ppm H2S) 10053022
Gas can (58 l) (1.45 % CH2,15.0 % O2, 60 ppm CO, 20 ppm H2S, 2.5 % CO2) 10102853
Gas can (34 l) (1.45 % CH2, 60 CO, 20 H2S, 15 % O2, 10 SO2) 10122425
Gas can (34 l ) (100 ppm Isobutylene) 10169196

Replacement Sensors

PID 10.6eV 10165271
XCell LEL 10106722
XCell O2 10106729
XCell CO/H2S Two-Tox 10106725
XCell CO H2 RES/H2S Two-Tox 10121214
XCell CO/H2S-LC Two-Tox 10121213
XCell CO/NO2 Two-Tox 10121217
XCell CO-HC 10121216
XCell SO2 10106727
XCell Cl2 10106728
XCell NH2 10106726
NO 10114750
NO2 10080224
ClO2 10080222
PH2 10116638
HCN 10106375

Accessories

Leather holster 10099648
USB IR receiver 10082834
Battery pack, alkaline 10114838
Carrying case 10152079
Vertical multi-unit charger for four ALTAIR 5X 10127428
Sampling line, 3 m, PU conductive 10103189
Sampling line, 30 m, PU conductive 10159431
Sampling probe, flexible 30 cm 10103191

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
