NSC Sicherheitstechnik B02725-00 Discovery Manual Call Point

Unfortunately, we no longer supply products by NSC. Please visit the Fire Extinguishing section for alternative options.

Based on the KAC conventional MCP range, NSC Sicherheitstechnik have designed the Discovery Manual Call Point and made it EN54-11:2001 compliant and both electronically and mechanically compatible with previous Apollo call points that were based on KAC's World Series product.

The address of each call point is set at the commissioning stage by means of a seven-segment DIL switch.

If an MCP is activated, it interrupts the normal protocol to give a fast response. A single bi-coloured alarm LED is provided on the call point. This LED is controlled, independently of the call point, by the control panel and may be set to flash each time the call point is polled. The red LED is lit when the call point has been activated and sent into alarm. On the isolated versions an amber/yellow LED indicates a short circuit on the loop wiring either side of the call point.

Call points can be remotely tested from the panel by transmission of a single bit in the communications protocol. Call points respond by providing a value of 64 which corresponds to the alarm value. The panel should recognise this response as a test signal and should not raise a general alarm.

Discovery Manual Call Points are available with or without an isolator. Each version is available with a resettable element and a backbox for surface mounting as standard. If a glass option is required, spare glasses are available on request.

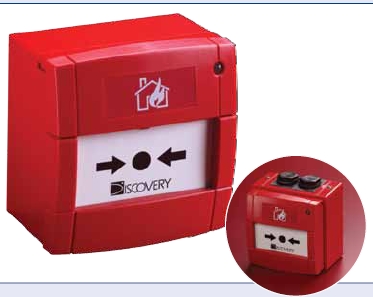

NSC Sicherheitstechnik B02725-00 Discovery Manual Call Point

For ease of installation Discovery manual call points are supplied with clip-on terminal blocks and a connector which allows continuity testing before call points are commissioned.

To provide additional protection against accidental operation, a transparent hinged cover with a locking tag, part number 26729-152 is available, which can be fitted to the manual call point. Please note that the call point does not conform to EN54-11:2001 when this lid is fitted and secured with the locking tag.


Data Sheet

Ordering Information


Apollo Part Numbers

58100-910 Red
58100-908 Red
58100-926 White
58100-927 Yellow
58100-928 Blue
58100-929 Green
58100-950 Red
58100-951 Red
58100-953 Yellow



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
