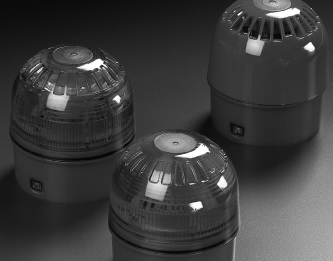

NSC Sicherheitstechnik B07964-00 Open Area Alarm Device

Unfortunately, we no longer supply products by NSC. Please visit the Fire Extinguishing section for alternative options.

FUNCTION

The NSC Sicherheitstechnik Open-area Alarm Devices are loop-powered, wall mounted devices which are connected to any XP95 or Discovery system.

The range comprises sounders, beacons and sounder beacons, all designed to fit to a common mounting base. Details are shown in Table 1 overleaf.

FEATURES

The alarm devices offer:

  three tones on standard devices; Apollo, Slow Whoop and DIN - all of which comply with EN54-3:2001
  two volume settings 92dB(A) and 100dB(A)
  synchronisation of tones and flashes
  individual & group addressing
  built-in isolator (EN54 versions only)
  wire-to-base for simple interchange of device
  device locking facility

A nominal sound output of 100dB(A) is achieved at a current consumption of 5mA in the case of the sounder and 8mA for the sounder beacon.

Many control panels will be able to drive up to 20 sounders and up to 15 sounder beacons per loop on average. The maximum number of devices that may be connected to a particular loop should, however, be determined by a loop loading calculation using the Apollo Loop Calculator.

The Apollo tone version produces a pulsed alert tone of 984Hz, 1 second off and 1 second on, and a continuous evacuation tone of 644Hz for 0.5 seconds followed by 984Hz for 0.5 seconds.

The volume control can be used to adjust the sound from 100dB(A) to 92dB ±3dB(A) if required.

SYNCHRONISATION

The sounder also offers synchronisation of continuous and pulsed tones. This ensures the integrity of the alert signals - tones from different sounders do not merge into one signal that could be mistaken for an 'evacuate' tone.

ADDRESSING

The open-area alarm devices respond to their own individual address set with a DIL switch. They can also respond to a 'Group Address' which allows multiple sounders to be controlled simultaneously.

A group address may be any spare address between 112 and 126 and is selected by means of a 4 segment DIL switch. A device under group address control must have an individual address between 1 and 111 otherwise a fault value of 4 is transmitted.

Devices not using the group address facility may be addressed at any address (1-126).

NSC Sicherheitstechnik B07964-00 Open Area Alarm Device

PROTOCOL COMPATIBILITY

The alarm devices will operate only with control equipment using the Apollo XP95 or Discovery protocol. The features of the Open-area alarm devices are available only when the device is connected to a control panel with the appropriate software.

MECHANICAL CONSTRUCTION

The alarm devices have a base which is fitted to the mounting surface and wired as a 'first fix'. Since the alarm devices are intended for use in open areas, it is possible for more than one device to be audible at any given point in a building. For this reason, the operation of all may be synchronised by the control panel.

All the alarm devices can be assigned group addresses as well as individual addresses, so that the functional options of the sounder are identical with those of the Sounder Control Unit part no 55000-182.

ELECTRICAL CONSIDERATIONS

All devices are powered directly from the loop and need no external power supply. They operate at 17-28V DC and are polarity sensitive.

TONE FREQUENCY AND VOLUME CONTROL

The alarm devices are supplied with three selectable tones and flashes either-Apollo, Slow Whoop and DIN or Apollo, Australia and New Zealand.


Data Sheet

Ordering Information


Apollo Part Numbers

Sounder red 55000-001
Sounder white 55000-002
Sounder red 55000-003
Sounder white 55000-004
Sounder beacon red Apollo 55000-005
Sounder beacon white 55000-006
Sounder beacon red 55000-007
Sounder beacon white 55000-008
Beacon red 55000-009 Beacon white 55000-010
Beacon red 55000-011
Beacon white 55000-012
