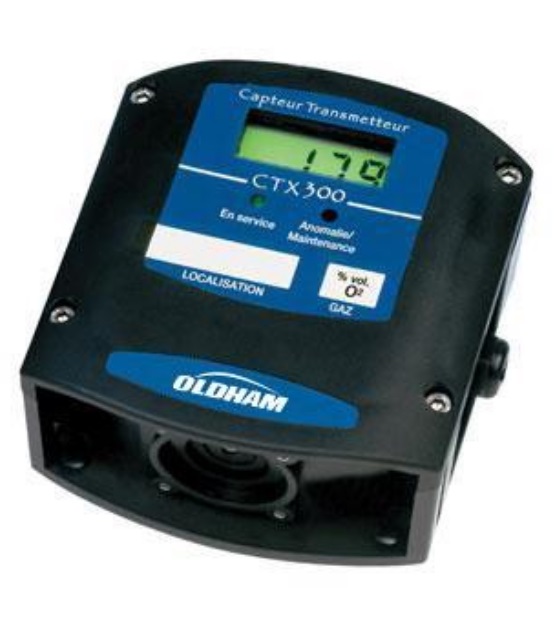

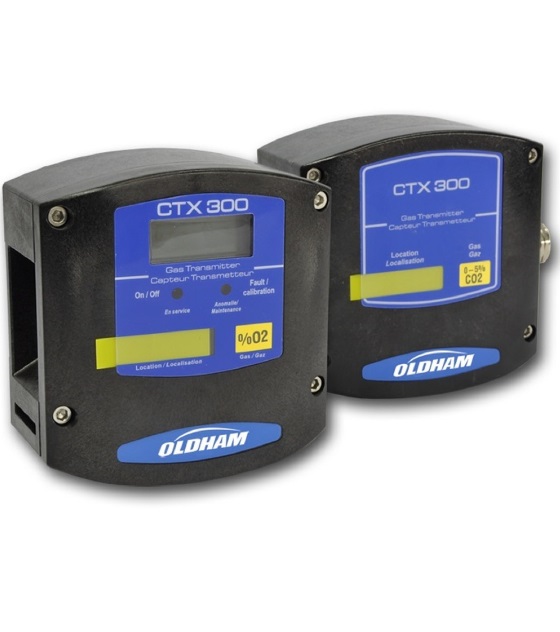

Oldham CTX 300 Gas Detector

  Detects O2, CO2, toxic and refrigerant gases
  4-20 mA output analog transmitter with optional backlit display
  Plug-in and pre-calibrated sensors
  Available with electrochemical, infrared or semi-conductor sensors
  More than 30 different sensors are available to detect most toxic gases in the industry
  Available in an infrared version for CO2
  EN14624 compliant with regards to R134a monitoring
  Oxygen detector for commercial or industrial applications in unclassified areas

When hazardous levels of toxic gases or oxygen threaten the safety of an unclassified area, the CTX 300 oxygen detector can satisfy the most demanding safety requirements.

The CTX 300 detector is designed to detect oxygen, toxic and refrigerant gases, and also uses a new sensor for CO2 detection over three different ranges: 0-5000 ppm, 0-5% vol. and 0-100% vol.

The CTX 300 transmits data in record time. With a wide range of sensor options, it has the flexibility to protect many potentially hazardous environments.

Maintaining the unit is easy with pre-calibrated sensors and an optional LCD display.



Datasheet
Manual
CO2 FAQ
CO2 Manual

Ordering Information


CTX 300 WITHOUT DISPLAY

Electrochemical versions

CTX300-243 CTX 300 ASH3, without display, range 0-1ppm
CTX300-247 CTX 300 CH2O, without display, range 0-50ppm
WC30-248 CTX 300 C2H4O, without display, range 0-100ppm
WC30CL2 CTX 300 Cl2, without display, range 0-10ppm
WC30CLO CTX 300 ClO2, without display, range 0-3ppm
WC30COA CTX 300 CO, without display range 0-100ppm
WC30COB CTX 300 CO, without display, range 0-300ppm
WC30COC CTX 300 CO, without display, range 0-1000ppm
WC30COD CTX 300 CO, without display, range 0-1 %
WC30COE CTX 300 CO, without display, range 0-10 %
WC30CCL CTX 300 COCl2, without display, range 0-3 ppm
WC30OET CTX 300 Ethylene Oxyde, without display, range 0-30ppm
WC30F2A CTX 300 F2, without display, range 0-1ppm
WC30H2A CTX 300 H2, without display, range 0-2000ppm
WC30H2B CTX 300 H2, without display, range 0-2 %
WC30HSA CTX 300 H2S, without display, range 0-30ppm
WC30HSB CTX 300 H2S, without display, range 0-100ppm
WC30HSC CTX 300 H2S, without display, range 0-1000ppm
WC30HLA CTX 300 HCl, without display, range 0-30ppm
WC30HLB CTX 300 HCl, without display, range 0-100ppm
WC30HNA CTX 300 HCN, without display, range 0-10ppm
WC30HNB CTX 300 HCN, without display, range 0-30ppm
WC30HFA CTX 300 HF, without display, range 0-10ppm
WC30NH3 CTX 300 NH3, without display, range 0-100ppm
WC30NH1 CTX 300 NH3, without display, range 0-1000ppm
WC30NH2 CTX 300 NH3, without display, range 0-5000ppm
WC30NH3F CTX 300 NH3 for low temperature application (-40°C/-40°F), without display, range 0-100ppm
WC30NH1F CTX 300 NH3 for low temperature application (-40°C/-40°F), without display, range 0-1000ppm
WC30NOA CTX 300 NO, without display, range 0-100ppm
WC30NOB CTX 300 NO, without display, range 0-300ppm
WC30NOC CTX 300 NO, without display, range 0-1000ppm
WC30N2A CTX 300 NO2, without display, range 0-10ppm
WC30N2B CTX 300 NO2, without display, range 0-30ppm
WC30N3B CTX 300 NO2, without display, range 0-100ppm
WC30O2F CTX 300 O2, with standard 2 year sensor lifetime, without display, range 0-30 %, -20°C to +50°C
WC30O2G CTX 300 O2, with long life 5 year sensor lifetime, without display, range 0-30 %, -40°C to +50°C
WC30O2S CTX 300 O2, without display, range 0-100 % vol
B301312 CTX 300 O2 Special for Helium enrichment, without display, range 0-30% vol
WC30O3A CTX 300 O3, without display, range 0-1ppm
WC30PH3 CTX 300 PH3, without display, range 0-1ppm
6513584 CTX 300 PH3, without display, range 0-1000ppm
WC30SIA CTX 300 SiH4, without display, range 0-50ppm
WC30SOA CTX 300 SO2, without display, range 0-10ppm
WC30SOB CTX 300 SO2, without display, range 0-30ppm
WC30SOC CTX 300 SO2, without display, range 0-100ppm

Semi-Conductor versions

CTX300-659 CTX 300 analog transmitter without display, 0-500ppm 2-Butanone (MEK)
CTX300-507 CTX 300 analog transmitter without display, 0-500ppm Dichloromethane (Methylen chloride)
CTX300-508 CTX 300 analog transmitter without display, 0-500ppm Chloromethane (Methylchloride)
CTX300-656 CTX 300 analog transmitter without display, 0-500ppm Ethanol
CTX300-654 CTX 300 analog transmitter, without display, 0-5000ppm Ethanol
CTX300-510 CTX 300 analog transmitter, without display, 0-2000ppm FX56
CTX300-662 CTX 300 analog transmitter, without display, 0-1,000ppm HFO-1234yf
CTX300-525 CTX 300 analog transmitter, without display, 0-1,000ppm HFO-1234ze
CTX300-658 CTX 300 analog transmitter without display, 0-500ppm Isopropanol
CTX300-505 CTX 300 analog transmitter, without display, 0-1% volume R11
CTX300-500 CTX 300 analog transmitter, without display, 0-1% volume R12
CTX300-501 CTX 300 analog transmitter, without display, 0-2000ppm R22
CTX300-506 CTX 300 analog transmitter, without display, 0-1% volume R23
CTX300-515 CTX 300 analog transmitter, without display, 0-1000ppm R32
CTX300-509 CTX 300 analog transmitter, without display, 0-2000ppm R123
CTX300-502 CTX 300 analog transmitter, without display, 0-2000ppm R134A
CTX300-511 CTX 300 analog transmitter, without display, 0-2000ppm R143A
CTX300-521 CTX 300 analog transmitter, without display, 0-1000ppm R245FA
CTX300-512 CTX 300 analog transmitter, without display, 0-2000ppm R404A
CTX300-517 CTX 300 analog transmitter, without display, 0-1000ppm R407C
CTX300-519 CTX 300 analog transmitter, without display, 0-1000ppm R407F
CTX300-518 CTX 300 analog transmitter, without display, 0-4000ppm R408A
CTX300-514 CTX 300 analog transmitter, without display, 0-1000ppm R410A
CTX300-524 CTX 300 analog transmitter, without display, 0-4000ppm R422D
CTX300-520 CTX 300 analog transmitter, without display, 0-4000ppm R434A (RS45)
CTX300-513 CTX 300 analog transmitter, without display, 0-2000ppm R507
CTX300-661 CTX 300 analog transmitter, without display, 0-500ppm Styrene
CTX300-657 CTX 300 analog transmitter without display, 0-500ppm Toluene
CTX300-652 CTX 300 analog transmitter, without display, 0-2000ppm Toluene
CTX300-655 CTX 300 analog transmitter, without display, 0-500ppm Trichlorethylene
CTX300-660 CTX 300 analog transmitter without display, 0-500ppm Xylene
CTX300-653 CTX 300 analog transmitter, without display, 0-2000ppm Xylene

Infrared versions

WC30CO2A CTX 300 CO2, without display, range 0-5000ppm
WC30CO2B CTX 300 CO2, without display, range 0-5.00 % vol
WC30CO2C CTX 300 CO2, without display, range 0-100 % vol

CTX 300 WITH DISPLAY

Electrochemical versions

WC3ACL2 CTX 300 Cl2, with display, range 0-10ppm
WC3ACLO CTX 300 ClO2, with display, range 0-3 ppm
WC3ACOA CTX 300 CO, with display, range 0-100ppm
WC3ACOB CTX 300 CO, with display, range 0-300ppm
WC3ACOC CTX 300 CO, with display, range 0-1000ppm
WC3ACOD CTX 300 CO, with display, range 0-1 %
WC3ACOE CTX 300 CO, with display, range 0-10 %
WC3ACOF CTX 300 CO/H2 null, with display, 2-wire version, range 0-200ppm
WC3ACCL CTX 300 COCl2, with display, range 0-3 ppm
WC3AOET CTX 300 Ethylene Oxyde, with display, range 0-30ppm
WC3AF2A CTX 300 F2, with display, range 0-1ppm
WC3AH2S CTX 300 H2, with display, range 0-2000ppm
WC3AH3B CTX 300 H2, with display, range 0-4% vol
WC3AH2B CTX 300 H2, with display, range 0-2% vol
WC3AHSA CTX 300 H2S, with display, range 0-30ppm
WC3AHSB CTX 300 H2S, with display, range 0-100ppm
WC3AHSC CTX 300 H2S, with display, range 0-1000ppm
WC3AHLA CTX 300 HCl, with display, range 0-30ppm
WC3AHLB CTX 300 HCl, with display, range 0-100ppm
WC3AHNA CTX 300 HCN, with display, range 0-10ppm
WC3AHNB CTX 300 HCN, with display, range 0-30ppm
WC3AHFA CTX 300 HF, with display, range 0-10ppm
WC3ANH3 CTX 300 NH3, with display, range 0-100ppm
WC3ANH1 CTX 300 NH3, with display, range 0-1000ppm
WC3ANOD CTX 300 NO, with display, range 0-30ppm
WC3ANOA CTX 300 NO, with display, range 0-100ppm
WC3ANOB CTX 300 NO, with display, range 0-300ppm
WC3ANOC CTX 300 NO, with display, range 0-1000ppm
WC3AN2A CTX 300 NO2, with display, range 0-10ppm
WC3AN2B CTX 300 NO2, with display, range 0-30ppm
WC3AO2F CTX 300 O2, with standard 2 year sensor lifetime, with display, range 0-30 % vol, -20°C to +50°C
WC3AO2G CTX 300 O2, with long life 5 year sensor lifetime, with display, range 0-30 % vol, -20°C to +50°C
WC3AO2S CTX 300 O2, with display, range 0-100% vol
B301072 CTX 300 O2 Special for Helium enrichment, with display, range 0-30% vol
WC3AO3A CTX 300 O3, with display, range 0-1ppm
WC3ASOA CTX 300 SO2, with display, range 0-10ppm
WC3ASOB CTX 300 SO2, with display, range 0-30ppm
WC3ASOC CTX 300 SO2, with display, range 0-100ppm
WC3APH3 CTX 300 PH3, with display, range 0-1ppm

Infrared versions

WC3ACO2A CTX 300 CO2, with display, range 0-0.50 % vol
WC3ACO2B CTX 300 CO2, with display, range 0-5.00 % vol
WC3ACO2C CTX 300 CO2, with display, range 0-100 % vol

CTX 300 Accessories

NP300GB User manual CTX 300 in English language, hard copy
NP300FR User manual CTX 300 in French language, hard copy
6331141 Calibration cup (all detectors except OLCT IR, all gases)
6331171 Calibration cup for semi-conductor CTX 300 versions
6799188 Gas introduction head for CTX 300 CO2 (delivered before July 2015)
6335918 Humidifier kit for transmitters with semi-conductor sensor
6322420 CEX/CTX 300 , OLC(T)40, 50, 60 and 100 ceiling-mount
6327906 Remote calibration cup for CEX/CTX 300
6327905 Sampling cup for CEX/CTX 300 (except CO2 variants shipped prior July 2015)
6323607 Gas collector for CEX/CTX300 series (except CO2 variants shipped prior July 2015)
6123716 Sunshield for 300 series, OLC(T)40, 50, 60, 80 and 100
6123717 Shock-guard protector for OLC(T)10 and 300 series
6797902 300 series wall-mount protector
6331166 Splash guard for CEX and CTX300 (except CO2 variants shipped prior July 2015)
6335953 PTFE water barrier for CEX/CTX 300
6793718 CEX300, OLC(T)50, 100, universal mounting Adapter Plate
6793322 Universal pitot tube with DN 80 flange (requires a sampling cup)
65920 Heating protective cover with a single resistor 100W



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
