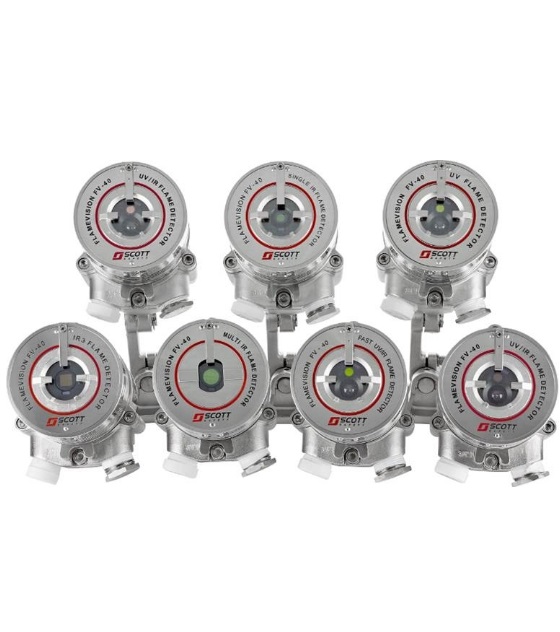

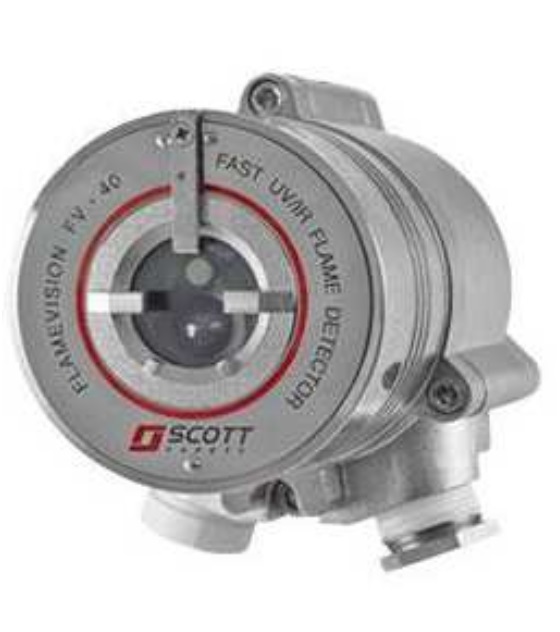

Oldham FlameVision FV-40 Series Flame Detector

  Long range and wide field of view
  Long life and durability
  Full adjustable mounts
  Fast response
  Low maintenance required
  Easily connects to system
  Customization to suit your needs
  Reliability and 5-year warranty

The FV-40 Series includes the latest technology for the best detection and resistance to false alarms, while keeping budgets in mind.

All units feature heated sensor windows to eliminate condensation and icing, sensitivity selection, multiple regulatory approvals and flexible communication options, including 3-color LED, 0-20mA, HART® Protocols, RS-485 and MODBUS®.

Robustly designed to handle tough work environments, FV-40 Flame Detectors showcase long-life and high-reliability features.


Ordering Information


FLAME DETECTORS delivered with one swivel mount and one ATEX sealing plug, without cable-gland

F4-I3-2-A-S-OA-A-5-2-0-3 IR 3 FV-40 MultiFlame, Stainless Steel, with BIT, M25, ATEX, sensitivity range 30m for a 0,1 m2 gasoline fire - delivered along with tilt mount and rain cover
F4-I3-2-A-S-OA-A-5-2-0-6 IR 3 FV-40 MultiFlame, Stainless Steel, with BIT, M25, ATEX, sensitivity range 65m for a 0,1 m2 gasoline fire - delivered along with tilt mount and rain cover
F4-I3-2-F-S-OA-A-5-2-0-3 IR3 FV-40 MultiFlame, Stainless Steel, with BIT, 3/4 NPT, FM, sensitivity range 30m for a 0,1 m2 gasoline fire - delivered along with tilt mount and rain cover
F4-I3-2-F-S-OA-A-5-2-2-6 IR3 FV-40 MultiFlame, Stainless Steel, with BIT, 3/4 NPT, FM, sensitivity range 65m for a 0,1 m2 gasoline fire - delivered along with tilt mount and rain cover
F4-MM-2-A-S-OA-A-5-2-0-3 IR4 FV-40 MultiFlame, Stainless Steel, with BIT, M25, ATEX, sensitivity range 30m for a 0,1 m2 gasoline fire - delivered along with tilt mount and rain cover
F4-MM-2-A-S-OA-A-5-2-0-6 IR4 FV-40 MultiFlame, Stainless Steel, with BIT, M25, ATEX, sensitivity range 65m for a 0,1 m2 gasoline fire - delivered along with tilt mount and rain cover
F4-MM-2-F-S-OA-A-5-2-0-3 IR4 FV-40 MultiFlame, Stainless Steel, with BIT, M25, FM, sensitivity range 30m for a 0,1 m2 gasoline fire - delivered along with tilt mount and rain cover
F4-MM-2-F-S-OA-A-5-2-0-6 IR4 FV-40 MultiFlame, Stainless Steel, with BIT, M25, FM, sensitivity range 65m for a 0,1 m2 gasoline fire - delivered along with tilt mount and rain cover
F4-2B-2-A-S-OA-A-5-2-0-1 UV IR FV-40 MultiFlame, Stainless Steel, with BIT, M25, ATEX - delivered along with tilt mount and rain cover
F4-2V-2-A-S-OA-A-5-2-0-1 UV IR FV-40 MultiFlame, Stainless Steel, without BIT, M25, ATEX - delivered along with tilt mount and rain cover
F4-2V-2-F-S-OA-A-5-2-0-1 UV IR FV-40 MultiFlame, Stainless Steel, without BIT, 3/4 NPT, FM - delivered along with tilt mount and rain cover
F4-2B-2-F-S-OA-A-5-2-0-1 UV IR FV-40 MultiFlame, Stainless Steel, with BIT, 3/4 NPT, FM - delivered along with tilt mount and rain cover

ACCESSORIES FOR FLAME DETECTORS

6143564 Cable-gland XP 3/4 NPT for armoured cable, inner diameter 6 to 12 mm, external diameter 8,5 to 16 mm
6143537 3/4 NPT sealing plug in stainless steel, ATEX approved
6343490 Cable-gland kit, M25, stainless steel, for armoured cable
6343492 Stainless steel M25 sealing plug (with seal ring) ATEX approved
6798806 Swivel mount for 20/20 models (except mini versions)
B103888 Swivel mount for FV-40 MultiFlame models
B103889 Pole mount diam 2" (swivel mount is required)
B103890 Pole mount diam 3" (needs swivel mount)
B103908 Rain cover for FV-40 MultiFlame models stainless steel
B104197 Rain cover for FV-40 MultiFlame models plastic
B104013 Handheld Pocket PC diagnostics kit (non-Ex approved), for 20/20 and FV-40 MultiFlame detectors and Spyglass OPGD
FIRE-FS1200 Flame simulator for UV/IR detectors, Ex approved
FIRE-FS1100 Flame simulator for IR3 detectors, Ex approved
FIRE-FS1400 Flame simulator for IR4 detectors, Ex approved



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
