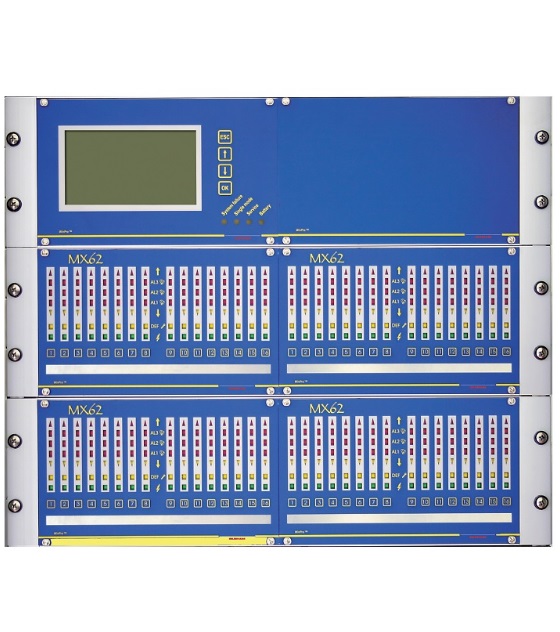

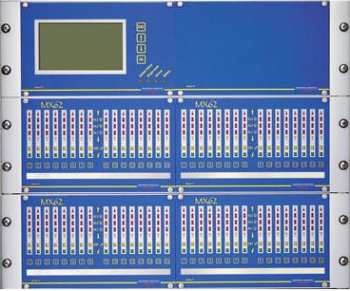

Oldham MX 62 Monitoring System for Gas and Flame Detection

  SIL3 and SIL2 according to EN50402:2006 and IEC61508:2011
  Up to 64 secured channels for direct or network wiring
  Direct network and loop connection
  Redundancy from measurement to alarm relays
  Functions AND, OR, MIN, MAX, Voting

An attractive solution for gas and flame detection needs, the MX 62 is a modular and flexible controller that is easy to install and reduces operational costs.

The MX 62 system meets the requirements of ATEX 100 A and offers the high level of security required by SK2 and SIL3 rated systems.

Cost Effective and Secure Installation

The structure of the MX 62 system has been developed to provide redundancy. Reliable data is passed quickly from the detectors to the relays.

Structured programming

The ConfigPro.exe software configures the MX 62 through a secure, password protected interface.

Saves Space and Optimizes Cost

  Innovative design meets the new safety requirements
  Modularity allows a personalized operation and custom wiring
  Flexibility allows better integration with your system
  High reliability ensures minimum maintenance
  Programmable outputs reduce relay requirements

VARIOUS MODULES

LED Module (A)

16 channels (8 channels standard)

  4 alarm thresholds
  Reset/acknowledge
  Power on
  Fault

LCD Module (B)

Up to 30 displays can be networked with the MX 62, allowing anywhere/anytime measurement display

  Graphic, alphanumeric, high definition LCD
  User-friendly display graphics
  Data storage: (optional 5 days)
  Can be remote via RS 485

Printer Module (C)

  Printing alarms, relay operating status, fault, min/max average over 8 hours
  Type ASCII, alphanumeric 40 or 80 characters
  Parallel connection

CPU Module (D)

The CPU module is the heart of the system, with backup power supply and two processors.

Plug in the LED and LCD modules, or remote connection via RS485 (4 wires + shield).

  Centralized management
  Connection to different modules
  Connection to an internal or external printer


Analog input Module (E)

Analog signals from the detectors to be input into the control system. Dual converters ensure reliable and redundant operation.

  Direct connection with the MX 62 system or remote via the adapter module
  Up to 8 measurement points, 2 or 3 wire

Adapter Module (F)

Allows 3 operating modes :

  Up to 16 addressable detectors in a loop configuration
  Up to 8 addressable detectors combined with a remote analog module
  Connection of 2 analog input modules
  The module can be remote via 2 RS485 networks (2 x 4 wires + screened system)

Relay Module (G)

  Fitted with 2 processors linked with the CPU
  Principal module: 8 relays
  Extension module: 8 relays
  NO/NC contacts
  Breaking capacity: 460 VA, 60 W
  Positive safety individually programmable
  The module can be remote via 2 RS485 (2 x 4 wires + screened system)

Analog Output Module (H)

  Fitted with 2 processors linked with the CPU
  Fitted with 8 analog 4-20 mA or 0-10 V outputs
  Each output is programmed to transmit:
  The real time value for one each input
  The linearized value
  Means or max for a detector group
  Mimic module: open collector (56) suitable to drive LED mimic panel as per MX 62 channel

Communication Module (I)

  Link to a supervisor for data exportation (PLC, DCS or SCADA)
  Link with CPU via the RS 232
  Personalized or Modbus protocol via RS 422
  Optional communication splitter module available


FAQ
Manual

Ordering Information


MX 62 modules

WM62CPU Frame rack fitted with CPU including 2 flat cables 0,5m + 3 flat cables 1m + 1 flat cable 3m + 1 flat cable 3m, delivered along with French and English user manual
6124873 Bare frame rack
6325074 16-LED-channel-pannel fitted with 8 channels, including 1 flat cable 0,5m
6451620 8-additional-channel card for LED-channel pannel ref 6325074 including 1 flat cable 0,05m
6325073 LCD display for rack mounting
W62ANAI 8-input module including 1 flat cable 0,08m
W62LOOP Loop module including 1 flat cable 0,5m
W62RELB 8-relay base module, delivered with 1 flat strap cable 0,10m
6124881 8-relay extension module
W62ANAO 8-analog output module 4-20mA or 0-10V including 1 flat cable 0,1m
6325072 Filling panel (mandatory if no LCD panel is present)
6313796 Neutral filling panel with plate and screws
31180 19" Printer panel
6111237 Power supply 230 Vac/ 24 Vdc 10A
B104812 Power supply 230 Vac/ 24 Vdc 20A
B104813 Power supply 230 Vac/ 24 Vdc 40A
NPM62GB User manual MX 62 in English language, printed version
NPM62FR User manual MX 62 in French language, printed version

MX 62 ACCESSORIES

6147878 Flat cable kit including 2 flat cables 0,5m + 3 flat cables 1m + 1 flat cable 3m + 1 flat cable 3m
6116194 Flat cable (0,5 m) for link CPU/analog input module
6116182 Flat cable (2 m) for link CPU/analog input module
6116282 Flat cable (3 m) for link CPU/analog input module
6116192 Flat cable (0,5 m) for link CPU/LCD, LED modules, relays, analog outputs
6116193 Flat cable (2 m) for link CPU/LCD, LED modules, relays, analog outputs
6116183 Flat cable strap (3 m) CPU link - LCD, LED modules, relays, analog outputs
6152958 Female connector 34 points
6152959 Female connector 19 points
WMX62WB WB interface - adaptor for 2 wheastone bridge type detectors, 2 x 4-20 mA analog outputs
W62MP64 "MPM64 Module (Multiplexer module) for MX 62 to duplicate RS232 port (to connect on SUB D9 available on CPU) 4 independant outputs (one output is dedicated for maintenance and use with Config Pro)" 31105 8-transmitter mimic panel, to remove and/or to duplicate the LED indicator (mimic panel)
31125 MX 62 AEAM for alarms acceptance of smoke detectors (to connect to AIM module)
6311088 MX 62 2 channels power limitor. Permit to connect 32 smoke detectors or 32 manual break glass per chanel
6312295 Configuration software - CONFIGPRO
31570 Connection cable PC/CPU with plug USB
6116250 Prog/CPU Cable for MX 62 with SUB D 9 plug
SR Supervision Software (measure, alarm, etc) following number of MX 62 (from 1 to 16 max) 31550 Visual Pro software - allows to duplicate the front panel in real time on a PC so you can see the channels' status remotely (on/off, in alarm, measurement). Allows remote control from the PC (channel on/off and acknowledgement)
6090322 Paper roll for printer (WINTER P/N 31185)
6325097 LCD display for front panel mounting
6314138 Remote copy LCD module with casing
6325109 Recopy LCD front panel for rack 19
6325110 Recopy LCD plug-in front panel for front panel mounting
6325096 LED panel for front panel mounting (8 channels)
B104208 Communication module RS485 and TCP/IPMODBUS, power supply 24VDC
B103959 Communication module Profibus, power supply 24VDC
6112802 "Isolation Permanent Controler (CPI) Circuit isolation survey DC non related to earth Power supply : 24 240 V AC/DC"
WM62K24-V2 Power supply module 24v/24v 100W

MX 62 CONTROL UNIT IN CABINET

B301199 "Control unit MX 62 in cabinet (800 x 600 x 400 ) 16 channels fitted with : 1 LED channel panel / 1 LCD module / 2 modules of 8 analogic inputs / 1 module of 8 relays 1 power supply 240 W Available space : 1 extension card of 8 relays"

B301200 "Control unit MX 62 in cabinet (1000 x 800 x 400 ) 16 channels fitted with : 1 LCD module / 2 LED channel panel / 2 modules of 8 analogic inputs / 1 module of 8 relays 1 power supply 500 W Available space : 3 extension cards of 8 relays / 2 modules of 8 relays / 1 MPM module and 1 communication module at the rear of the door / 2 analogical input modules or 1 digital input module"

B301201 "Control unit MX 62 in cabinet (1000 x 800 x 400) 24 channels + 16 relays fitted with : 1 LCD module / 2 LED channel panel / 3 modules of 8 analogic inputs / 2 modules of 8 relays / 1 power supply 500 W Available space : 3 extension cards of 8 relays / 1 module of 8 relays / 1 MPM module and 1 communication module at the rear of the doors / 1 module of 8 analogic input"

B301202 "Control unit MX 62 in cabinet (1000 x 800 x 400) 32 channels fitted with : 1 LCD module / 2 LED channel panel / 4 modules of 8 analogic inputs / 2 modules of 8 relays / 1 power supply 500 W Available space: 1 module of 8 relays / 3 extension cards of 8 relays / 1 MPM module and 1 communication module at the rear of the door"

B301203 "Control unit MX 62 in cabinet (800 x 600 x 400) 16 digital channels + 8 relays, fitted with : 1 LCD module / 1 LED channel panel / 1 module of 16 digital inputs / 1 module of 8 relays / 1 power supply 500 W Available space: 1 extension card 8 relays"

B301204 "Control unit MX 62 in cabinet (1000 x 800 x 400) 32 channels + 16 relays fitted with : 1 LCD module / 2 LED Channel panel / 2 modules of 16 digital inputs / 2 modules of 8 relays / 1 power supply 500 W Available space: 1 module of 8 relays / 3 extension cards 8 relays / 1 MPM module and 1 communication module at the rear of the door"



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
