Oldham OLCT 10 and OLC 10 Toxic / Flammable Gas Detectors

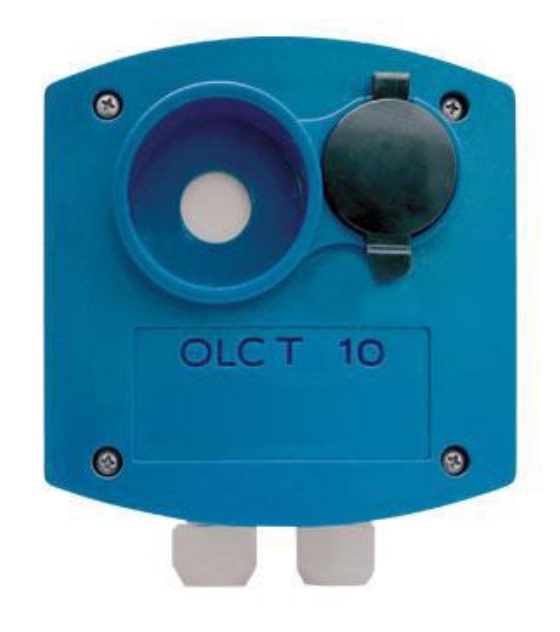

  Toxic gas monitor (OLCT 10)

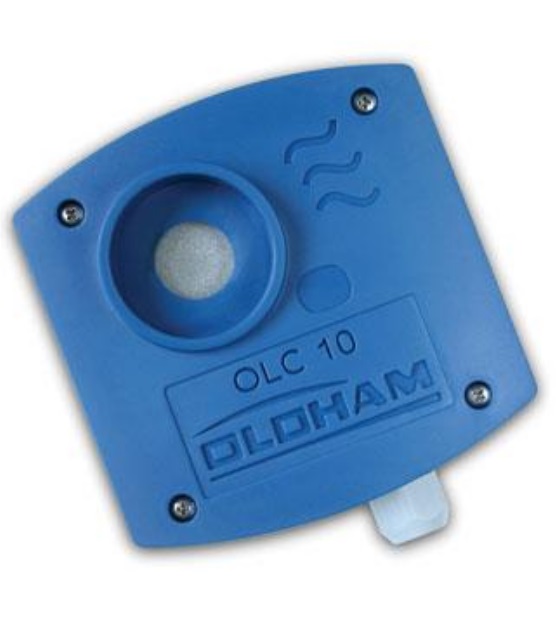

  Combustible gas monitor (OLC 10)
  Fast and accurate response
  ATEX Approval for use in hazardous areas
  IP66

Oldham have designed the the OLCT 10 and OLC 10 gas monitors for applications within boiler rooms and parking garages, offering users the best cost effective solution for continuously monitoring toxic (OLCT 10) or flammable gases and vapors (OLC 10) in ambient air.

The Oldham OLCT 10 and OLC 10 both benefit from being simple to install and operate, being compatable with the MX 15 control unit. This combination helps meet requirements from the most demanding user applications.

Oldham OLCT 10 and OLC 10 Toxic / Flammable Gas Detectors


Data Sheet

Specifications

Type: Catalytic bead sensor (pellistor measuring principle)
Size (W x H x D): 118 x 126 x 58 mm
Material: ABS
IP Rating: IP66
Expected lifetime: > 4 years
Operating temperature: -10 to + 45 C
Operating humidity range: 0 % RH to 95 % RH
Operating pressure: 80 to 120 kPa
Accuracy: +/- 3% LEL
Response time: T50 < 10s, T90 < 20s

Ordering Information


Detector OLC 10 - Wheatstone bridge

6513559 Flammable gas sensor type OLC 10 ATEX II 3 G - EEx nA IIC T6 approved - Range 0-100% LEL CH4 / C4H10 / C3H8 / H2
6513566 Flammable gas sensor type OLC 10 TWIN ATEX II 3 G - EEx nA IIC T6 approved - Allows to link 2 OLC 10 TWIN detectors to one single channel without any junction box - Quote 2 OLC 10 TWIN in that case. - Range 0-100% LEL CH4 / C4H10 / C3H8 / H2

Detector OLCT 10 - 4-20 mA versions

OLCT10-001 OLCT 10 analog transmitter, without display, 0-100% LEL CH4 (5% vol), ATEX II 3G, Ex nA IIC T4, IP65
OLCT10-002 OLCT 10 analog transmitter, without display, 0-100% LEL CH4 (4.4% vol), ATEX II 3G, Ex nA IIC T4, IP65
OLCT10-003 OLCT 10 analog transmitter, without display, 0-100% LEL H2 (hydrogen), ATEX II 3G, Ex nA IIC T4, IP65
OLCT10-004 OLCT 10 analog transmitter, without display, 0-100% LEL C4H10 (butane), ATEX II 3G, Ex nA IIC T4, IP65
OLCT10-005 OLCT 10 analog transmitter, without display, 0-100% LEL C3H8 (propane), ATEX II 3G, Ex nA IIC T4, IP65
6513567 OLCT 10 analog transmitter, without display, 0-300ppm CO Sensor, 4-20 mA output, ATEX II 3G, Ex nA IIC T4, IP65
6513569 OLCT 10 analog transmitter, without display, 0-100ppm NO Sensor, 4-20 mA output, ATEX II 3G, Ex nA IIC T4, IP65
6513570 OLCT 10 analog transmitter, without display, 0-30ppm NO2 Sensor, 4-20 mA output, ATEX II 3G, Ex nA IIC T4, IP65

Detector OLCT 10 - 4-20 mA Semi-conductor versions - for use in non Hazardous area only

OLCT10-664 OLCT 10 analog transmitter, without display, 0-100% LEL CH4 (5%vol)
OLCT10-665 OLCT 10 analog transmitter, without display, 0-100% LEL CH4 (4.4%vol)
OLCT10-666 OLCT 10 analog transmitter, without display, 0-100% LEL C4H10 (butane)
OLCT10-667 OLCT 10 analog transmitter, without display, 0-100% LEL C3H8 (propane)
OLCT10-510 OLCT 10 analog transmitter, without display, 0-2000ppm FX56
OLCT10-662 OLCT 10 analog transmitter, without display, 0-1,000ppm HFO-1234YF
OLCT10-525 OLCT 10 analog transmitter, without display, 0-1,000ppm HFO-1234ZE
OLCT10-505 OLCT 10 analog transmitter, without display, 0-1% volume R11
OLCT10-500 OLCT 10 analog transmitter, without display, 0-1% volume R12
OLCT10-501 OLCT 10 analog transmitter, without display, 0-2000ppm R22
OLCT10-506 OLCT 10 analog transmitter, without display, 0-1% volume R23
OLCT10-515 OLCT 10 analog transmitter, without display, 0-1000ppm R32
OLCT10-521 OLCT 10 analog transmitter, without display, 0-1000ppm R245FA
OLCT10-509 OLCT 10 analog transmitter, without display, 0-2000ppm R123
OLCT10-502 OLCT 10 analog transmitter, without display, 0-2000ppm R134A
OLCT10-511 OLCT 10 analog transmitter, without display, 0-2000ppm R143A
OLCT10-512 OLCT 10 analog transmitter, without display, 0-2000ppm R404A
OLCT10-514 OLCT 10 analog transmitter, without display, 0-1000ppm R410A
OLCT10-517 OLCT 10 analog transmitter, without display, 0-1000ppm R407C
OLCT10-519 OLCT 10 analog transmitter, without display, 0-1,000ppm R407F
OLCT10-518 OLCT 10 analog transmitter, without display, 0-4,000ppm R408A
OLCT10-520 OLCT 10 analog transmitter, without display, 0-4,000ppm R434A (RS45)
OLCT10-513 OLCT 10 analog transmitter, without display, 0-2000ppm R507

OLCT 10 Accessories

NPO10GB User manual OLCT 10 in English language, hard copy
NPO10FR User manual OLCT 10 in French language, hard copy
6147872 OLCT 10 tool kit (includes one screwdriver and one flat cable for signal measurement)
6123717 Shock-guard protector for OLC(T)10 and 300 series
6331141 Calibration cup (all detectors except OLCT-IR, all gases)

OLCT 10N Detectors - ATEX and IECEX approved II 3 G

OLCT10N-001 OLCT 10N digital transmitter, without display, ATEX 3G, IP65, 0-100% LEL CH4 (5% vol)
OLCT10N-002 OLCT 10N digital transmitter, without display, ATEX 3G, IP65, 0-100% LEL CH4 (4.4% vol)
OLCT10N-003 OLCT 10N digital transmitter, without display, ATEX 3G, IP65, 0-100% LEL H2
OLCT10N-004 OLCT 10N digital transmitter, without display, ATEX 3G, IP65, 0-100% LEL C4H10
OLCT10N-005 OLCT 10N digital transmitter, without display, ATEX 3G, IP65, 0-100% LEL C3H8
OLCT10N-200 OLCT 10N digital transmitter, without display, ATEX 3G, IP65, 0-30% vol O2 (life time for the sensor: 2 years)
OLCT10N-272 OLCT 10N digital transmitter, without display, ATEX 3G, IP65, 0-30% vol O2 (life time for the sensor: 5 years)
OLCT10N-204 OLCT 10N digital transmitter, without display, ATEX 3G, IP65, 0-300ppm CO
OLCT10N-205 OLCT 10N digital transmitter, without display, ATEX 3G, IP65, 0-1,000ppm CO
OLCT10N-213 OLCT 10N digital transmitter, without display, ATEX 3G, IP65, 0-30ppm H2S
OLCT10N-214 OLCT 10N digital transmitter, without display, ATEX 3G, IP65, 0-100ppm H2S
OLCT10N-216 OLCT 10N digital transmitter, without display, ATEX 3G, IP65, 0-100ppm NO
OLCT10N-217 OLCT 10N digital transmitter, without display, ATEX 3G, IP65, 0-300ppm NO
OLCT10N-219 OLCT 10N digital transmitter, without display, ATEX 3G, IP65, 0-10ppm NO2
OLCT10N-220 OLCT 10N digital transmitter, without display, ATEX 3G, IP65, 0-30ppm NO2
OLCT10N-231 OLCT 10N digital transmitter, without display, ATEX 3G, IP65, 0-100ppm NH3
OLCT10N-232 OLCT 10N digital transmitter, without display, ATEX 3G, IP65, 0-1000ppm NH3
OLCT10N-252 OLCT 10N digital transmitter, without display, IP65, 0-5000ppm CO2 for use in non Hazardous area only
OLCT10N-239 OLCT 10N digital transmitter, without display, IP65, 0-5% vol CO2 for use in non Hazardous area only
OLCT10N-241 OLCT 10N digital transmitter, without display, IP65, 0-100% vol CO2 for use in non Hazardous area only

OLCT 10N Accessories

6331163 Calibration kit for CPS10 and OLCT 10N (including a bar and a magnetic calibration cap)
6123717 Shock-guard protector for OLC(T) 10 and 300 series

OLCT 10N replacement sensor

6798301 CO 0-300 / 0-1000ppm (OLCT 10 / OLCT 10N / CPS10)
6113332 NO2 0-10 / 0-30ppm (OLCT 10 / OLCT 10N / CPS10)
6113341 H2S 0-30 / 0-100ppm replacement sensor for OLCT 10N
6799345 O2 0-30% Vol. (OLCT 10N) - 2 year life time
6113720 O2 0-30% Vol. (OLCT 10N) - 5 year life time
6113331 NO 0-100 / 0-300ppm (OLCT 10 / OLCT 10N / CPS 10)
6314118 NH3 0-100ppm (OLCT 10N)
6314119 NH3 0-1000ppm (OLCT 10N)
6314196 CO2 0-5000ppm (OLCT 10N)
6314195 CO2 0-5% vol (OLCT 10N)
6314197 CO2 0-100% vol (OLCT 10N)



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
