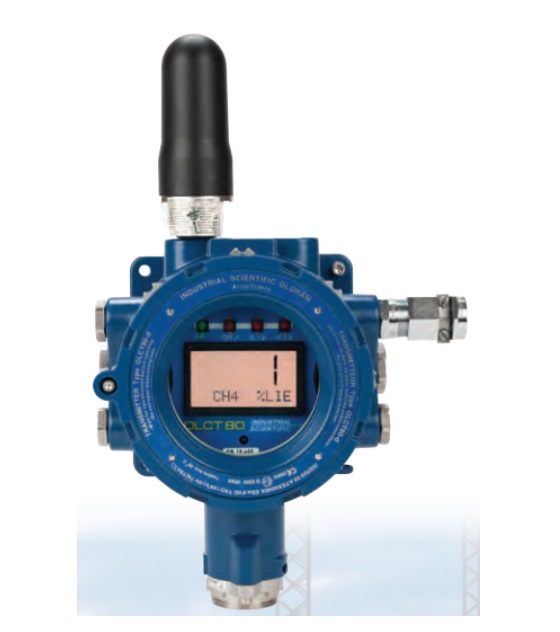

Oldham OLCT 80 Wireless Transmitter

  Frequency 2.4 GHz (EU) / 900 MHz (USA)
  Low Power Requirement
  Up to 3 km Line-of-Sight Range
  Robust Mesh Network Topology
  Up to 49 devices per network
  Flexible Input/Output options (analog, on/off, Modbus RS485)

Wireless connectivity is now possible in ATEX 1 zones thanks to the Oldham OLCT 80 Wireless Transmitter. The maximum range is 3km, line of sight. The number of field detectors, the area coverage and the network architecture will affect the type of network selected.

Signal Processing

Suitable for a wide choice of industrial detection and alarm system applications, the OLCT 80 is ideal for transmitting signal data.

Transceiver operates at a universally accepted frequency of 2.4 GHz / 900 MHz and is able to transmit signal data from its analog or Modbus outputs.

The wireless version of the OLCT 80 eliminates wiring costs and is very easy to commission in the field. The device can be associated with our MX 43 control panel, touch screens and audible or visible alarms.

Wireless network integrity, security and reliability are guaranteed by using FHSS technology (Frequency Hopping Spread Spectrum).

Oldham OLCT 80 Wireless Transmitter


Data Sheet

Specifications

Sensor Catalytic / Electrochemical / Semiconductor / Infrared

Material Epoxy coated aluminum + 316 stainless steel sensor

Detected gases Explosive or toxic gases, or O2

Pre-calibrated sensor Yes

Weight 4kg

Power supply 16 to 28 V DC

Optional solar panels available. ATEX version in option.

Power consumption:

with RS485 communication 9 W (electrochemical) - 10 W (catalytic) - 12.5 (IR)
with signal output at 25mA 9 W (electrochemical) - 10 W (catalytic) - 13.2 (IR)
with signal output set at 25 mA and activated relays 10.4 W (electrochemical) - 11.5 W (catalytic) -14.7(IR)

Display 4-digit LCD display for measurement + 1 alphanumeric line / 3 LEDS (green : on-power / yellow : fault / red : alarm)

Cable entry 4 M20 & 2 M25 cable entries

Ingress protection IP 66

Range (line of sight) 3200 meters / 2 miles (2.4 Ghz) / 9600 meters / 6 miles (900 MHz)

Approvals EEx d IIB T5 (T 100°C) for OLCT 80 with flameproof sensor / EEx d [ia] ia IIB T4 (T 135°C) for OLCT 80 with intrinsically safe sensor / certificate INERIS 03ATEX0240X

Operating temperature -20°C to +55°C

Analog input 2 x 4-20 mA analog input

Ordering Information


"GAS TRANSMITTER type OLCT 80 for use with XP Sensors
delivered without cable-gland & without sensor
ATEX II 2 GD marking on transmitter and sensors"


6513542 Transmitter OLCT 80 with on-board XP sensor - flameproof approved Ex d IIC T5 to T6 Gb
6513551 Transmitter OLCT 80D with remote XP sensor (15m) - flameproof approved Ex d IIC T5 to T6 Gb
6513646 "Transmitter OLCT 80 Wireless 2,4GHz with on-board XP sensor - flameproof approved Ex d IIB T5 Gb
need a Master receipt module by network (B301563)"
6513653 "Transmitter OLCT 80 Wireless 2.4 GHz with remote XP sensor - flameproof approved Ex d IIB T5 Gb
need a Master receipt module by network (B301563)"
B301563 Wireless master receiver 2.4 GHz, RS485 Modbus output / repeatetor fonction

XP SENSOR For OLCT 80

6313685 ATEX Ex d OLCT 20 replacement sensor for combustible gases, 0-100% LEL
6313974 OLCT 20 poison resistant sensor block for comb. gases, 0-100% LEL
6313687 ATEX Ex d OLCT 20 replacement sensor, 0-100% vol CH4 (Catharometric )
6313986 ATEX Ex d OLCT 20/40/50/60/80 replacement sensor , 0-100% vol SF6 (Catharometric )
6314203 ATEX Ex d OLCT20/40/50/60/80 replacement sensor , 0-100% vol H2 (Catharometric )
6313690 ATEX Ex d OLCT 20/40/50/60/80 replacement sensor CO 0- 100ppm
6313691 ATEX Ex d OLCT 20/40/50/60/80 replacement sensor CO 0- 300ppm
6313692 ATEX Ex d OLCT 20/40/50/60/80 replacement sensor CO 0- 1000ppm
6313693 ATEX Ex d OLCT 20/40/50/60/80 replacement sensor CO (null H2) 0-1000ppm
6313706 ATEX Ex d OLCT 20/40/50/60/80 replacement sensor H2 0-2000ppm
6313695 ATEX Ex d OLCT 20/40/50/60/80 replacement sensor H2S 0-30ppm
6313965 ATEX Ex d OLCT 20/40/50/60/80 replacement sensor H2S (null HC) 0-30ppm
6313696 ATEX Ex d OLCT 20/40/50/60/80 replacement sensor H2S 0-100ppm
6313697 ATEX Ex d OLCT 20/40/50/60/80 replacement sensor H2S 0-1000ppm
6313707 ATEX Ex d OLCT 20/40/50/60/80 replacement sensor NH3 0 - 100ppm
6313708 ATEX Ex d OLCT 20/40/50/60/80 replacement sensor NH3 0-1000ppm
6313894 ATEX Ex d OLCT 20/40/50/60/80 replacement sensor NH3 0-5000ppm
6313698 ATEX Ex d OLCT 20/40/50/60/80 replacement sensor NO 0-100ppm
6313699 ATEX Ex d OLCT 20/40/50/60/80 replacement sensor NO 0-300ppm
6313700 ATEX Ex d OLCT 20/40/50/60/80 replacement sensor NO 0- 1000ppm
6313710 O2 0-30% vol ATEX Ex d OLCT 20/40/50/60/80 replacement sensor (life time for the sensor: 2 years)
6315C5A O2 0-30% vol ATEX Ex d OLCT 20/40/50/60/80 replacement sensor (life time for the sensor: 5 years)

OLCT 80 XPIR version
"delivered without cable-gland, with Sensor
ATEX II 2 GD marking on transmitter and sensors"


OLCT80-XPIR-239-1 OLCT 80 XPIR infrared transmitter, 0-5% vol. CO2
OLCT80-XPIR-240-1 OLCT 80 XPIR infrared transmitter, 0-10% vol. CO2
OLCT80-XPIR-241-1 OLCT 80 XPIR infrared transmitter, 0-100% vol. CO2
OLCT80D-XPIR-239-1 OLCT 80 XPIR infrared transmitter, remote sensor, 0-5% vol. CO2
OLCT80D-XPIR-240-1 OLCT 80 XPIR infrared transmitter, remote sensor, 0-10% vol. CO2
OLCT80D-XPIR-241-1 OLCT 80 XPIR infrared transmitter, remote sensor, 0-100% vol. CO2

These sensors are equiped with XP sealing plugs (4 x M20 and 2 x M25)

"GAS TRANSMITTER type OLCT 80 for use with IS sensors
delivered without cable-gland & without sensor
ATEX II 2 GD marking on transmitter
ATEX II 1 GD approval on sensors"


6513543 Transmitter OLCT 80 with intrinsically safe local sensor - approved Ex d[ia] ia IIC T4
6513552 Transmitter OLCT 80D with intrinsically safe remote (15m) sensor - approved Ex d[ia] ia IIC T4
6513654 "Transmitter OLCT 80 Wireless with intrinsically safe on-board sensor
need a Master receipt module by network (B301563)"
6513655 "Transmitter OLCT 80D Wireless with intrinsically safe remote (15m) sensor
need a Master receipt module by network (B301563)"
B301563 Wireless master receiver 2.4GHz

These sensors are equiped with XP sealing plugs (4 x M20 and 2 x M25)

IS SENSORS FOR OLCT 80

6313738 ATEX Ex ia OLCT 20/40/50/60/80 replacement sensor ASH3 0 - 1ppm
6313734 ATEX Ex ia OLCT 20/40/50/60/80 replacement sensor Cl2 0-10ppm
6313740 ATEX Ex ia OLCT 20/40/50/60/80 replacement sensor CIO2 0-3 ppm
6313694 ATEX Ex ia OLCT 20/40/50/60/80 replacement sensor CO (null H2) 0-1000ppm
6313711 ATEX Ex ia OLCT 20/40/50/60/80 replacement sensor CO 0-100ppm
6313712 ATEX Ex ia OLCT 20/40/50/60/80 replacement sensor CO 0-300ppm
6313713 ATEX Ex ia OLCT 20/40/50/60/80 replacement sensor CO 0-1000ppm
6313736 ATEX Ex ia OLCT 20/40/50/60/80 replacement sensor COCL2 0-1ppm
6313972 ATEX Ex ia OLCT 20/40/50/60/80 replacement sensor Formaldehyde 0-50ppm
6313727 ATEX Ex ia OLCT 20/40/50/60/80 replacement sensor H2 0-2000ppm
6313716 ATEX Ex ia OLCT 20/40/50/60/80 replacement sensor H2S 0-30ppm
6313717 ATEX Ex ia OLCT 20/40/50/60/80 replacement sensor H2S 0-100ppm
6313718 ATEX Ex ia OLCT 20/40/50/60/80 replacement sensor H2S 0-1000ppm
6313730 ATEX Ex ia OLCT 20/40/50/60/80 replacement sensor HCl 0-30ppm
6313731 ATEX Ex ia OLCT 20/40/50/60/80 replacement sensor HCl 0-100ppm
6313732 ATEX Ex ia OLCT 20/40/50/60/80 replacement sensor HCN 0-10ppm
6313733 ATEX Ex ia OLCT 20/40/50/60/80 replacement sensor HCN 0-30ppm
6313728 ATEX Ex ia OLCT 20/40/50/60/80 replacement sensor NH3 0-100ppm
6313729 ATEX Ex ia OLCT 20/40/50/60/80 replacement sensor NH3 0-1000ppm
6313895 ATEX Ex ia OLCT 20/40/50/60/80 replacement sensor NH3 0-5000ppm
6313719 ATEX Ex ia OLCT 20/40/50/60/80 replacement sensor NO 0-100ppm
6313720 ATEX Ex ia OLCT 20/40/50/60/80 replacement sensor NO 0-300ppm
6313721 ATEX Ex ia OLCT 20/40/50/60/80 replacement sensor NO 0 - 1000ppm
6313722 ATEX Ex ia OLCT 20/40/50/60/80 replacement sensor NO2 0-10ppm
6313723 ATEX Ex ia OLCT 20/40/50/60/80 replacement sensor NO2 0-30ppm
6313748 ATEX Ex ia OLCT 20/40/50/60/80 replacement sensor O2 0-30% vol
6313735 ATEX Ex ia OLCT 20/40/50/60/80 replacement sensor O3 0-1ppm
6313737 ATEX Ex ia OLCT 20/40/50/60/80 replacement sensor PH3 0-1ppm
6313724 ATEX Ex ia OLCT 20/40/50/60/80 replacement sensor SO2 0-10ppm
6313725 ATEX Ex ia OLCT 20/40/50/60/80 replacement sensor SO2 0-30ppm
6313726 ATEX Ex ia OLCT 20/40/50/60/80 replacement sensor SO2 0-100ppm

ACCESSORIES FOR OLCT 80

NPO80GB User manual OLCT 80 in English language, printed version
NPO80FR User manual OLCT 80 in French language, printed version
6314587 Adaptor to remote a transmitter from principal head (one M20 cable gland needed)
6145856 Case key for OLCT 80
6147870 Tool kit for OLCT 80
6143552 M25/M20 nickelled brass adaptor
6143584 M25/ 3/4"NPT nickelled brass adaptor
6343491 Stainless steel M20 sealing plug (with seal ring)
6343492 Stainless steel M25 sealing plug (with seal ring) ATEX approved
6343494 Cable-gland kit, M20, nickelled brass, for use with OLCT 20D
6343489 Cable-gland kit, M20, stainless steel, for armoured cable
6343493 Cable-gland kit, M20, stainless steel, for unarmoured cable
6343495 Cable-gland kit, M20, nickelled brass, for armoured cable
6343499 Cable-gland kit, M20, nickelled brass for unarmoured cable
6343490 Cable-gland kit, M25, stainless steel, for armoured cable
6343497 Cable-gland kit, M25, stainless steel, for unarmoured cable
6343496 Cable-gland kit, M25, nickelled brass, for armoured cable
6343498 Cable-gland kit, M25, nickelled brass, for unarmoured cable
6327878 IR remote control (to be used with leather case), delivered with leather case and battery pack
6313861 Stainless steel sensor sealing plug (require if there no XP sensor)



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

Back To Last Page
