Oldham Spyglass Open Path Combustible Gas Detector

  Multi-combustible gas detection
  Range of 200 meters
  Low maintenance costs
  Easy detector communication
  Easy configuration and troubleshooting
  Automatic heated optics
  Built-in event recorder
  Stainless steel construction
  Long warranty

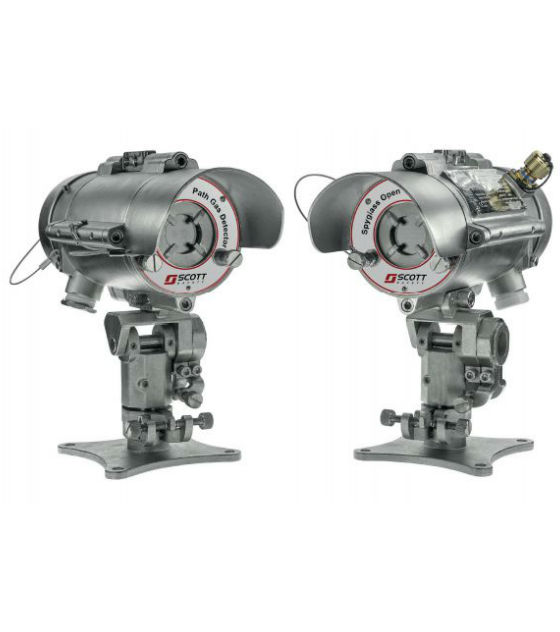

The Spyglass system detects hydrocarbon gases by analyzing the absorption of radiation caused by gases in the atmosphere and comparing it to background atmospheric absorption. This is accomplished between a pair of units: a Flash Source and a Detector that can monitor a distance of up to 200 meters.

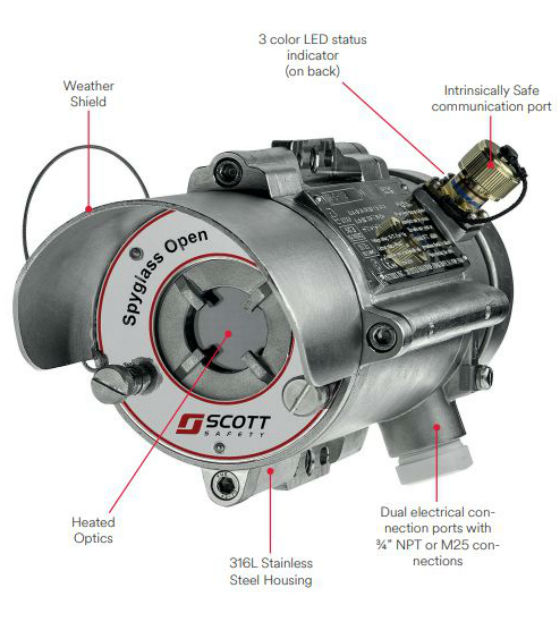

Spyglass Gas Detectors are robustly designed and can handle the toughest environments: 316L stainless steel housings that meet IP66/IP68 and NEMA 250 6P egress standards; circuit boards epoxy coated for protection; MIL-C-810C testing for humidity, salt, fog, vibration, mechanical shock and temperature extremes; and SIL-2 approval per IEC61508 is a final statement in reliability.


Ordering Information


SPYGLASS

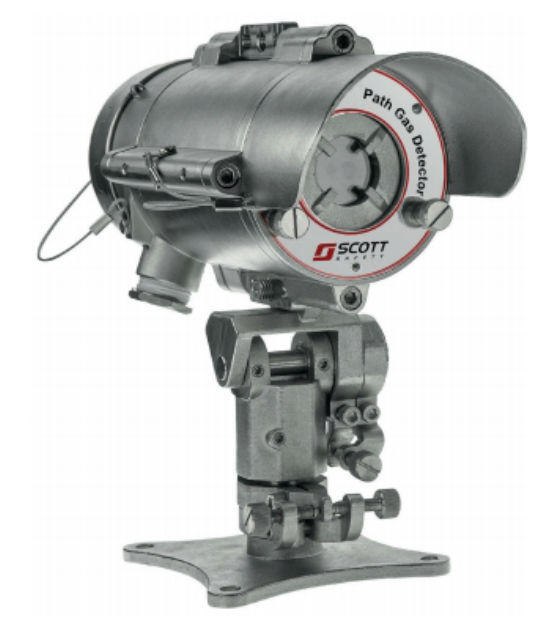

(with tilt mount, without cable gland)
ATEX 2 GD (Ex de(ia) IIC T5)


SCO-8000481 Spyglass Model 20, distance 7 to 20 m, ATEX, M25, 4-20mA output, RS485 and HART, SIL 2, c/w tilt mount
SCO-8000482 Spyglass Model 20, distance 7 to 20 m, ATEX, NPT, 4-20mA output, RS485 and HART, SIL 2, c/w tilt mount
SCO-8000485 Spyglass Model 40, distance 15 to 40 m, ATEX, M25, 4-20mA output, RS485 and HART, SIL 2, c/w tilt mount
SCO-8000486 Spyglass Model 40, distance 15 to 40 m, ATEX, NPT, 4-20mA output, RS485 and HART, SIL 2, c/w tilt mount
SCO-8000489 Spyglass Model 100, distance 35 to 100 m, ATEX, M25, 4-20mA output, RS485 and HART, SIL 2, c/w tilt mount
SCO-8000490 Spyglass Model 100, distance 35 to 100 m, ATEX, NPT, 4-20mA output, RS485 and HART, SIL 2, c/w tilt mount
SCO-8000493 Spyglass Model 200, distance 80 to 200 m, ATEX, M25, 4-20mA output, RS485 and HART, SIL 2, c/w tilt mount
SCO-8000494 Spyglass Model 200, distance 80 to 200 m, ATEX, NPT, 4-20mA output, RS485 and HART, SIL 2, c/w tilt mount

ACCESSORIES FOR Spyglass

SCO-8000447 Tilt Mount (Stainless steel)
SCO-8000448 Pole Mount (U-Bolt 5 inch)
SCO-8000449 Commissioning Kit
SCO-8000451 HART Hand-Held Diagnostic Unit
SCO-8000452 HART Hand-Held Harness Kit
SCO-8000453 USB/RS485 Harness Converter Kit
SCO-8000455 Sunshade, Stainless Steel
SCO-8000457 Function Check Filter Warning Level - Methane Calibration
SCO-8000458 Function Check Filter Alarm Level - Methane Calibration
SCO-8000459 Function Check Filter Warning Level - Propane Calibration
SCO-8000460 Function Check Filter Alarm Level - Propane Calibration
SCO-8000497 Magnetic Mode Selector

Spyglass Spares

SCO-8000461 Spyglass Detector , ATEX, M25
SCO-8000462 Spyglass Detector , ATEX, 3/4" NPT
SCO-8000463 Spyglass Detector , FM, M25
SCO-8000464 Spyglass Detector , FM, 3/4" NPT
SCO-8000465 Spyglass Model 20 Source (7-20 m Range), ATEX, M25
SCO-8000466 Spyglass Model 20 Source (7-20 m Range), ATEX, 3/4" NPT
SCO-8000467 Spyglass Model 20 Source (7-20 m Range), FM, M25
SCO-8000468 Spyglass Model 20 Source (7-20 m Range), FM, 3/4" NPT
SCO-8000469 Spyglass Model 40 Source (15-40 m Range), ATEX, M25
SCO-8000470 Spyglass Model 40 Source (15-40 m Range), ATEX, 3/4" NPT
SCO-8000471 Spyglass Model 40 Source (15-40 m Range), FM, M25
SCO-8000472 Spyglass Model 40 Source (15-40 m Range), FM, 3/4" NPT
SCO-8000473 Spyglass Model 100 Source (35-100 m Range), ATEX, M25
SCO-8000474 Spyglass Model 100 Source (35-100 m Range), ATEX, 3/4" NPT
SCO-8000475 Spyglass Model 100 Source (35-100 m Range), FM, M25
SCO-8000476 Spyglass Model 100 Source (35-100 m Range), FM, 3/4" NPT
SCO-8000477 Spyglass Model 200 Source (80-200 m Range), ATEX, M25
SCO-8000478 Spyglass Model 200 Source (80-200 m Range), ATEX, 3/4" NPT
SCO-8000479 Spyglass Model 200 Source (80-200 m Range), FM, M25
SCO-8000480 Spyglass Model 200 Source (80-200 m Range), FM, 3/4"NPT



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
