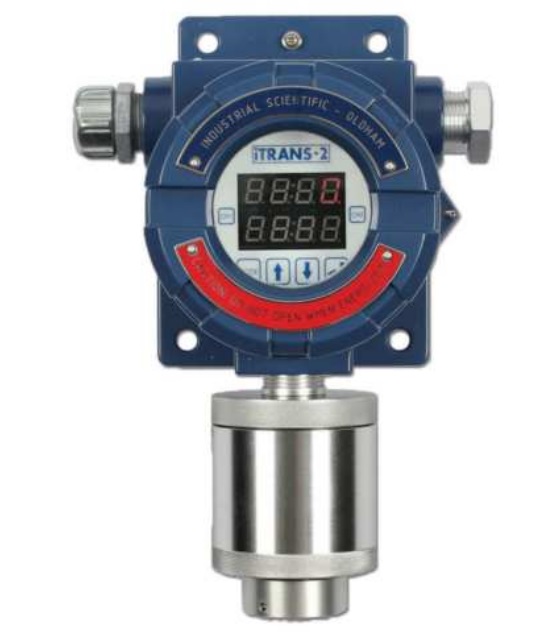

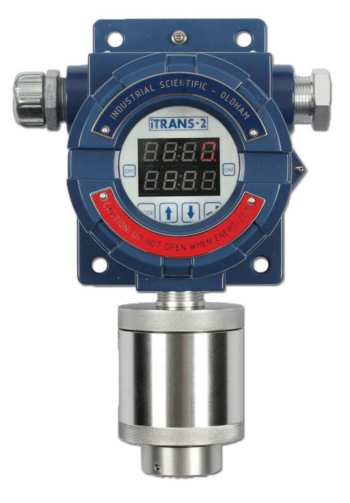

Oldham iTrans2 Standalone Gas Transmitter

  Detects Explosive and Toxic Gas, or Oxygen
  Non-Intrusive Calibration
  Smart Infrared Gas Sensors
  HART Communication Protocol (NEW)
  MODBUS Communication
  Programmable Relays
  Dual Gas Sensing

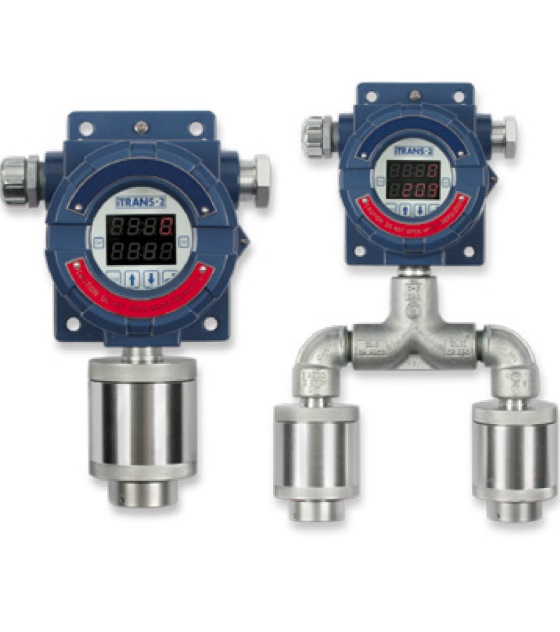

Infrared Gas Detector - 1 or 2 Points of Detection from a Single Head

The iTrans2 infrared gas detector employs an intelligent electronics platform to provide one or two points of detection from a single head for maximum flexibility, superior performance and lower installation costs. With the optional HART Communication Protocol, the iTrans2 offers remote diagnostics, set-up or calibration by superimposing a high-frequency current across the industry standard 4-20mA analog line.

Automatic Sensor Recognition, Access Code Security, and Zero and Cal Fault Protection

Able to detect any combination of gases for a specific environment, iTrans2 utilizes our industry-proven “smart” infrared gas sensor technology and safety features including automatic sensor recognition, access code security, and zero and cal fault protection - all enclosed within an explosion-proof aluminum or stainless steel housing.

The microprocessor-controlled transmitters are capable of independent operation or multi-point system configuration. The infrared sensor provides explosive gas detection (methane, butane, propane, ethylene, hexane, etc.) in more severe environmental conditions, where the presence of poisons could harm the use of a catalytic cell.

In addition to the LEL sensor range, the iTrans2 detector can also be configured with a 0-100% volume methane infrared sensor for bio-gas applications and CO2 infrared sensors ranging from 0.5% volume to 100% volume.

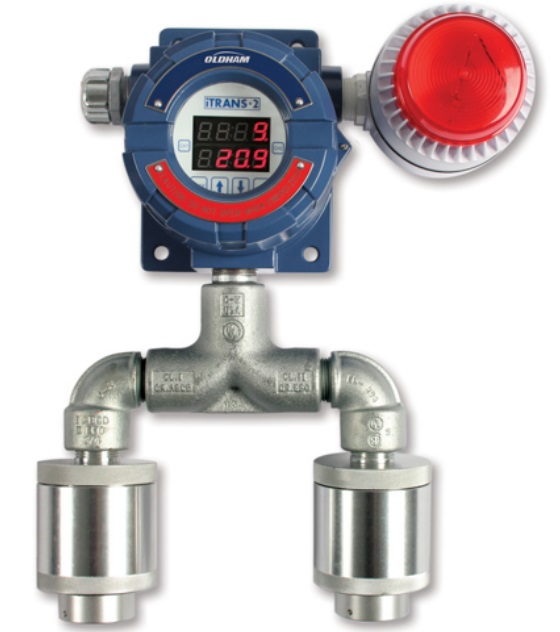

Stand-Alone Operation(*)

With optional on-board relays, this fixed gas detector has the added ability of stand-alone operation, activating alarms, horns, or fans and can also shut down a system without the need to wire back to a central control panel.

(*) versions with local visible alarm are to be installed in ordinary locations only


Datasheet
Manual

Ordering Information


iTrans 2™ Digital Remote Sensor Transmitters

77036379-1 Carbon Monoxide (CO) iTrans 2 digital transmitter
77036379-2 Nitric Oxide (NO) iTrans 2 digital transmitter
77036379-3 Ammonia (NH3) iTrans 2 digital transmitter
77036379-4 Hydrogen Sulfide (H2S) iTrans 2 digital transmitter
77036379-5 Sulfur Dioxide (SO2) iTrans 2 digital transmitter
77036379-6 Nitrogen Dioxide (NO2) iTrans 2 digital transmitter
77036379-7 Chlorine (Cl2) iTrans 2 digital transmitter
77036379-8 Chlorine Dioxide (ClO2) iTrans 2 digital transmitter
77036379-9 Hydrogen Cyanide (HCN) iTrans 2 digital transmitter
77036379-A Oxygen (O2) iTrans 2 digital transmitter
77036379-B Combustible gas - catalytic (LEL) iTrans 2 digital transmitter (factory methane calibration)
77036379-C Combustible gas - catalytic (LEL) iTrans 2 digital transmitter (factory Pentane calibration)
77036379-D Carbon Monoxide/ Hydrogen Null (CO/H2-Null) iTrans 2 digital transmitter
77036379-F Hydrogen Chloride (HCl) iTrans 2 digital transmitter
77036379-K Phosphine (PH3) iTrans 2 digital transmitter
77036379-L Hydrogen (H2) iTrans 2 digital transmitter
77036379-M Methane 0-100% vol Infrared (IR) iTrans 2 digital transmitter - NOT CSA CERTIFIED
77036379-N Methane LEL Infrared (IR) iTrans 2 digital transmitter - NOT CSA CERTIFIED
77036379-O Propane LEL Infrared (IR) iTrans 2 digital transmitter - NOT CSA CERTIFIED
77036379-Q Pentane LEL Infrared (IR) iTrans 2 digital transmitter - NOT CSA CERTIFIED
77036379-R Butane LEL Infrared (IR) iTrans 2 digital transmitter - NOT CSA CERTIFIED
77036379-U Hexane LEL Infrared (IR) iTrans 2 digital transmitter - NOT CSA CERTIFIED
77036379-V CO2 (5%vol) Infrared (IR) iTrans 2 digital transmitter - NOT CSA CERTIFIED
77036379-X CO2 (100% vol) Infrared (IR) iTrans 2 digital transmitter
77036379-W CO2 (0.5%vol) Infrared (IR) iTrans 2 digital transmitter

iTrans & iTrans 2™ Replacement Sensors

77024404 Combustible gas - catalytic (LEL) replacement sensor for iTrans and iTrans 2
77024412 Oxygen (O2) replacement sensor for iTrans and iTrans 2
77024420 Hydrogen Sulfide (H2S) replacement sensor for iTrans and iTrans 2
77024438 Carbon Monoxide (CO) sensor for iTrans and iTrans 2
77024446 Hydrogen (H2- ppm) replacement sensor for iTrans and iTrans 2
77040003 Ammonia (NH3) replacement sensor for iTrans (rev 9 or above) and iTrans 2
77024461 Hydrogen Chloride (HCl) replacement sensor for iTrans and iTrans 2
77024479 Chlorine (Cl2) replacement sensor for iTrans and iTrans 2
77024487 Nitric Oxide (NO) replacement sensor for iTrans and iTrans 2
77024495 Nitrogen Dioxide (NO2) replacement sensor for iTrans and iTrans 2
77024503 Sulfur Dioxide (SO2) replacement sensor for iTrans and iTrans 2
77024511 Chlorine Dioxide (ClO2) replacement sensor for iTrans and iTrans 2
77025872 Phosphine (PH3) replacement sensor for iTrans and iTrans 2
77025898 Hydrogen Cyanide (HCN) replacement sensor for iTrans and iTrans 2
77027944 Carbon Monoxide (CO) - Hydrogen-Null replacement sensor for iTrans and iTrans 2
78105035 Methane 100% vol infrared(IR) replacement sensor for iTrans 2 only - NOT CSA CERTIFIED
78105036 Methane 100% LEL infrared(IR) replacement sensor for iTrans 2 only - NOT CSA CERTIFIED
78105037 Propane 100% LEL infrared(IR) replacement sensor for iTrans 2 only - NOT CSA CERTIFIED
78105039 Pentane 100% LEL infrared(IR) replacement sensor for iTrans 2 only - NOT CSA CERTIFIED
78105040 Butane 100% LEL infrared(IR) replacement sensor for iTrans 2 only - NOT CSA CERTIFIED
78105043 Hexane 100% LEL infrared(IR) replacement sensor for iTrans 2 only - NOT CSA CERTIFIED
78105044 CO2 100% vol infrared(IR) replacement sensor for iTrans 2 only
78105045 CO2 5%vol infrared(IR) replacement sensor for iTrans 2 only
78105046 CO2 0.5%vol infrared(IR) replacement sensor for iTrans 2 only

iTrans & iTrans 2™ Mounting Kits

78104312-STND Duct mount kit for iTrans & iTrans 2 catalytic/toxic/oxygen sensors (also iTrans 2 infrared sensors)

iTrans & iTrans 2™ Parts and Accessories

78100008 iTrans Chassis without Relays (iTrans Rev.8 or below)
78104635 iTrans Chassis without Relays (iTrans Rev.9 or above)
78100008R iTrans Chassis with Relays (iTrans Rev.8 or below)
78104635R iTrans Chassis with Relays (iTrans Rev.9 or above)
78100008-S Stainless Steel iTrans chassis without Relays (iTrans Rev.8 or below)
78104635-S Stainless Steel iTrans chassis without Relays (iTrans Rev.9 or above)
78100008R-S Stainless Steel iTrans chassis with Relays (iTrans Rev.8 or below)
78104635R-S Stainless Steel iTrans chassis with Relays (iTrans Rev.9 or above)
78105049 itrans 2 Chassis with electronics module, without relays
78105049R itrans 2 Chassis with electronics module, with relays
78105049H itrans 2 Chassis with electronics module, with HART
78105049HR itrans 2 Chassis with electronics module, with HART & Relays
78105049-S Stainless Steel itrans 2 Chassis with electronics module, without relays
78105049R-S Stainless Steel itrans 2 Chassis with electronics module, with relays
78105049H-S Stainless Steel itrans 2 Chassis with electronics module, with HART
78105049HR-S Stainless Steel itrans 2 Chassis with electronics module, with HART & Relays
77023760 iTrans and iTrans 2 terminal power board without relays (iTrans Rev.9 or above)
77022184 iTrans and iTrans 2 terminal power board with relays (iTrans Rev.9 or above)
77026078 iTrans and iTrans 2 terminal board , Remote housing (all revisions)
77023812 iTrans Main electronics board assembly & display module (iTrans Rev.8 or below)
77023919 iTrans and iTrans 2 Main electronics board assembly & display module (iTrans Rev.9 or above)
77026988 iTrans Stainless Steel Smart sensor enclosure w boards includes (rev.8 or below)
77025888 iTrans Smart sensor enclosure Asy w/ boards includes 77024812 (rev.8 or below)
77025948 iTrans and iTrans 2 Smart sensor enclosure Asy w/ boards includes 77024812 (rev.9 or below)
77026912 iTrans and iTrans 2 Stainless Steel Smart sensor enclosure Asy w/ boards (iTrans Rev.9 or above)
77026367 iTrans remote sensor enclosure with terminal board (itrans rev.8 or below)
77025286 iTrans Sensor enclosure for CL2, CLO2, NH3 (iTrans Rev.9 or above)
77026094 iTrans Enclosure for LEL, O2, Toxic (iTrans Rev.9 or above)
77036379 iTrans and iTrans 2 remote sensor enclosure with terminal board (iTrans rev.9 or above)
77024812 iTrans Sensor Board Stack (iTrans rev.8 or below)
77024396 iTrans and iTrans 2 Sensor Board Stack (rev.9 or above)
77036303 iTrans 2 electronics module (rev.9)
77023927 iTrans and iTrans 2 Smart sensor O2
77022606 iTrans and iTrans 2 Smart sensor LEL
77023828 iTrans and iTrans 2 Smart sensor H2S
77023836 iTrans and iTrans 2 Smart sensor CO
77023513 iTrans & iTrans 2 calibration cup
77023588 iTrans & iTrans 2 splash guard
77015303 iTrans & iTrans 2 splash guard / remote cal cup for catalytic/toxic/oxygen sensors and iTrans 2 infrared sensors
77018083 Replacement filter for 77015303
77014579 iTrans and iTrans 2 by-pass/flow-thru kit (not suitable for iTrans infrared sensor)
77024065 iTrans and iTrans 2 calibration wand
17049927 iTrans and iTrans 2 Gore-Tex water barrier
77025971 iTrans Ribbon cable
77022333 iTrans Keypad
37000352 Flame Arrestor



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
