Pearpoint P350 Flexitrax System


P350 flexitrax™ system – the advanced and complete portable crawler system for the pipeline inspection professional.

Most motorized inspection systems are complex and bulky. Many are difficult to transport and install, prone to weather damage and are complicated to operate.

The P350 flexitrax™ offers inspection professionals the ultimate portable crawler system. This advanced and affordable system features the simplicity and transportability of a pushrod system while delivering the functionality and performance associated with complex and expensive crawler systems.

The P350 is a modular system, designed to meet the tough requirements of most inspection environments.

Outstanding picture quality

The P350 flexitrax features ultra-bright LEDs and high-resolution cameras built on a powerful digital video platform. The P350 flexitrax system supports three interchangeable, high-resolution cameras. Each camera features the latest generation, ultra-bright white LEDs that ensure a clear picture and a long, maintenance-free life. The digital video is displayed on the command module’s ultra-bright, 200mm (8") industrial grade TFT screen.

The P350 flexitrax command module allows you to zoom and rotate photos and live or recorded digital video in real-time. The command module also provides Mimic™ display, an intuitive way of controlling pan and tilt.

Combined, these features provide outstanding video picture quality and make it easier and quicker to correctly identify problems even in the toughest conditions.

Reliability where you need it

The P350 flexitrax is engineered to operate in almost any environment. The command module and drum have a weatherproof rating of IP53. The tough, yet light-weight controller provides a durable buffer between the elements and your survey data. The command module stores survey data direct to solid-state Compact Flash cards. Solid-state non-volatile memory means there are no moving parts so your files are secure and less vulnerable to shock damage and power outages.

The system is operable in the most demanding conditions. The crawlers can operate fully submersed and are water resistant to depths of up to 100m (330'). They are constructed from brass and stainless steel and are built with a single or twin 50W motor configuration, powerful enough to move through almost any pipeline system. The integrated sensitive inclinometer and the multi-frequency sonde allow you to map pipeline topography easily and efficiently.

The ruggedly constructed cameras are designed to transfer a front impact to the crawler body, protecting the cameras from most severe damages.

Flexible digital data transfer

The advanced digital platform of the P350 flexitrax means you can transfer survey data from your Compact Flash card to your PC or laptop via fast USB 2.0. Use the included FlexiSight™ Windows-based software to edit video and convert reports to Microsoft Word format.

With Bluetooth wireless technology you can send your inspection photos from the command module to a compatible cell phone and forward them instantly to your client.

Versatility

The P350 flexitrax is small enough to fit in the trunk of your car. The system can be van or truck mounted and wheeled on site using the ergonomic barrow design, allowing you to reach conduits beyond the range of your vehicle. Once on site, the system is quick and easy to set-up and deploy.

Build the system to meet your inspection requirements. Choose between a practical and inexpensive manual drum system or an advanced, compact, self–contained powered drum with up to 305m (1000') of cable. Choose from three interchangeable cameras and two powerful, yet compact crawlers that are designed to withstand the most challenging sub-surface conditions.

The command module is also fully compatible with the P340 flexiprobe™, giving you access to its comprehensive range of pushrod reels, cameras and accessories. Switch from crawler to pushrod inspection without carrying a second system.

The system is easy to use, thanks to its intuitive user interface and simple, one-touch control over video and photo capturing. The tough and durable keypad gives you direct access to advanced digital features and lets you drive any drum, crawler and camera combination.

The command module and the drum also feature RCA video outputs, meaning you can record your video to an external device or display video on an external monitor.

Choose between a wide choice of different wheels, elevators and tires to suit the pipe you are surveying. The small wheel set is the optimal configuration for deploying the P354 crawler in 100mm (4") pipes* and the P356 crawler in 150mm (6") pipes*.

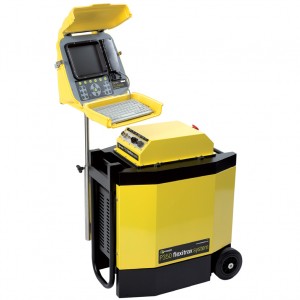

Pearpoint P350 Flexitrax System

Serviceability

The P350 flexitrax system is designed and built for continuous operation and easy maintenance. Each crawler is designed for quick repair. The powered drum features a removable drum and cable cassette that’s fast and easy to replace in the workshop or even in the field. The optional re-termination kit makes it easy and affordable to replace and repair damaged cables.

The P350 flexitrax system is the obvious choice when you need cost-effective and flexible solutions.

*Minimum specified diameter must be maintained along the whole length of the survey.

Digital control

  Compact and tough controller can be left on the drum or fitted where convenient
  Ultra-bright 200mm (8") industrial grade TFT screen with anti-reflective protection offers the best picture in any light condition
  Tough and durable keypad to control all the system functions and movements
  Splash-proof keyboard for text entry and report writing
  Digital zoom and picture navigation functions to explore, in real-time, the live video picture
  Record full PAL/NTSC video and snapshots onto solid-state Compact Flash (CF) card
  Bluetooth wireless technology to send photos world-wide instantly (using a compatible cell phone and service provider)
  USB 2.0 port to transfer all the files quickly to a PC or laptop
  Compatible with P340 flexiprobe pushrod system Rugged and flexible
  IP53 and IP68 rated system
  Self-contained power drum allows for van fit or portable use
  Cable lengths from 100m (330') to 305m (1000') with a cable-end protection system
  Automatic or manual retrieval mode
  Manual drum available
  Crawlers rated IP68 to 100m (330'), with inbuilt inclinometers and multi-frequency sondes

Power and agility

  Non-steerable P354 crawler allows access in a typical 300mm manhole and pipe surveys from 100mm to 300mm (4" to 12")
  Steerable P356 crawler for pipes from 150mm (6") to 600mm (24")
  50W (P354) and dual 50W (P356) crawler motors
  Quick release wheels (rubber or abrasive) for all pipe conditions

Light and vision

  Uses ultra-bright LEDs for a long, maintenance-free life and exceptional light performance
  Choice of three high-definition cameras: forward view, pan & tilt or pan & tilt with 10x optical zoom
  P350-CMOD Mimic display control and auto survey mode for easy pan & tilt operation

Flexibility

The P350 flexitrax system is a modular system and all its main components are fully interchangeable.

Tailor the system to suit your business needs:

  Choose between the manual or selfcontained powered drum systems
  Determine the cable length and crawler size to meet your typical pipe requirements
  Choose any high-resolution (Forward View, Pan & Tilt or Pan & Tilt with 10x Optical Zoom) camera; each with ultra bright, white LED technology
  Choose from a wide range and size of wheels, tires and accessories to suit any inspection environment
  Use the P350 controller with the comprehensive P340 flexiprobe range of pushrods and cameras.


Data Sheet

Ordering Information

10/P350-CMOD P350 Command Module; including Compact Flash, USB, Bluetooth and Ethernet Modules

10/P350-CMOD+AUT P350+ Command Module; including Compact Flash, USB, Bluetooth and Ethernet Modules,with internal battery option and automotive charger. Note: Internal battery can only power the controller and compatible pushrod systems.

10/P350-CMOD+MAINS P350+ Command Module; including Compact Flash, USB, Bluetooth and Ethernet Modules,with internal battery option and mains power lead charger. Note: Internal battery can only power the controller and compatible pushrod systems.

10/P350-DRUM-M-100-S P350 Manual Drum, 330'/100m, Swivel termination, including CMOD to PSU link cable 3'/1m, Manual Drum to PSU cable 10'/3m, Command Module Clamp and Crank Handle

10/P350-DRUM-M-150-S As above 495'/150m option

10/P350-DRUM-M-200-S As above 660'/200m option

10/P350-DRUM-M-250-S As above 825'/250m option

10/P350-DRUM-M-305-S As above 1000'305m option

10/P350-DRUM2-P-100 P350 Powered Drum, 330'/100m, Swivel termination, including CMOD to PSU link cable 3'/1m, Command Module Clamp and Crank Handle.

10/P350-DRUM2-P-150 As Above 495'/150m option

10/P350-DRUM2-P-200 As Above 660'/200m option

10/P350-DRUM2-P-250 As Above 825'/250m option

10/P350-DRUM2-P-305 As Above 1000'/305m option

10/P350-PSU-M P350 PSU (Power supply) for Manual Drum

10/P354 P354 Crawler, non-steerable

10/P356 P356 Crawler, steerable

10/P350-WHEELS-S P350 Set of Small wheels, 4 hard tires, 4 soft tires

10/P350-WHEELS-M P350 Set of Medium wheels, 4 hard tires, 4 soft tires

10/P350-84MM-WHEELS-M-KIT P350 set of 4 x 3.5" (84mm) wheels and P350-mounting adaptors. Slim profile wheels for navigating pipe offsets/thin sections of pipe (historically similar to P238 wheels). Material - standard compound.

10/P350-84MM-WHEELS-S Set of 4 x 3.5" (84mm) wheels only. Material - Soft compound.

10/P350-84MM-WHEELS-M Set of 4 x 3.5" (84mm) wheels only. Material - Medium compound.

10/P350-84MM-WHEELS-H Set of 4 x 3.5" (84mm) wheels only. Material - Hard compound.

10/P350-WHEELS-L-MK2 P350 Set of Large wheels with Tires (P356 only)

10/P350-DUAL-L-ADAPT-KIT P350 Dual Large-wheel adaptors kit, allow 2 large wheels to be mounted together (can increase surface area, traction and pipe height, or driver higher over debris). No wheels included.

10/P350-CAM-FW-PAL P350 PAL Forward View Camera

10/P350-CAM-FW-NTSC P350 NTSC Forward View Camera

10/P350-CAM-PT-PAL P350 PAL Pan & Tilt Camera

10/P350-CAM-PT-NTSC P350 NTSC Pan & Tilt Camera

10/P350-CAM-PTZ-PAL P350 PAL Pan & Tilt with Zoom Camera

10/P350-CAM-PTZ-NTSC P350 NTSC Pan & Tilt with Zoom Camera

Localisation packs

10/P350-LOC-US

10/P350-LOC-UK

10/P350-LOC-DE

10/P350-LOC-FR

10/P350-LOC-ES

10/P350-LOC-IT

10/P350-LOC-NL

10/P350-LOC-EU

Contains:

UK, US or EU mains lead as required
National / regional splash-proof keyboard as required
P350 flexitrax user guide
Flexisight Manager software CD (reporting package)
Compact flash memory card (enquire for latest memory capacity)
P350 universal controller visor label
USB interface cable (A to B) 3'/1m
Allen key set - ballend LG series.
RoHS-compliant multipurpose grease (50 ml)


Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
