Radiodetection Biotest Riser Bond Model 1550 Metallic Time Domain Reflectometer Cable Fault Locator

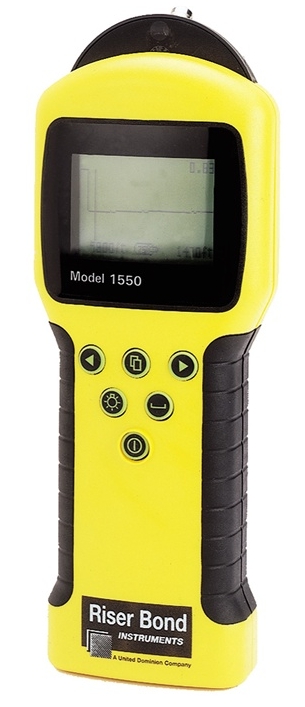

The easy-to-use Radiodetection Riser Bond Model 1550 is an entry level TDR. The Model 1550 can be used across a wide range of applications including CATV, telecom and power and has been optimised to help the field engineer find the most common first line faults.

A portion of the pulse energy will be reflected bak to the instrument from cable discontinuities or faults, when electrical pulses are transmitted into the cable. Faults are typically short circuits, open circuits or high resistance joints where as discontinuities are typically cable joints, changes in cable type or the far end of the cable under test.

Key Features

  Low cost - Increase productivity by equipping more technicians with their own TDRs.
  Ergonomic design - Designed to be held comfortably in one hand. Large, well-spaced buttons are easy to use.
  Small size - Easy to carry. Compact styling makes it convenient to use in tight spaces.
  Modular test lead design - Adaptable to a variety of industries and applications. Modules are available for twisted pair, coaxial cable, and power cable use.
  Durable, weather-resistant housing - Suited to indoor and outdoor usage. Rugged plastic case stands up to everyday use.


Data Sheet


Ordering Information

Riser Bond 1550T Hand Held Cable Fault Locator (yellow) 61/000/1550-10
Riser Bond 1205CX-A CE CATV TDR kit complete+ memory and filters 10/000-1205CXA-01
Riser Bond 1270A CE CATV TDR kit complete+ memory and filters 10/000-1270A-01
Riser Bond 3200 CE CATV TDR kit complete+ memory and filters 10/000-3200-01
Riser Bond 3300 CE CATV TDR kit complete+ memory and filters 10/000-3300-01
Riser Bond 6000 CE Multifunction test set (icon)+ memory and filters 10/000-6000-01
Riser Bond 6000DSL CE Multifunction test set (icon)+ memory and filters 10/000-6000DSL-01

Note: UK customers add UK Mains lead (see below)

Remote toners and probes

TX125 spare remote unit for 6000DSL 61/160-0044-00
TX916 tone and probe unit 61/TX916

Note: TX916 replaces TX915

Cables

Riser Bond 1550 modular adapter/twisted pair (100 ohm) 1 yd/meter 61/163-0044-00
Riser Bond 1550 modular adapter/power (25 ohm) 61/163-0045-00
Riser Bond 1550 modular adapter/coaxial (75 ohm) 61/163-0046-00
Riser Bond 1550 6' twisted pair cable set 61/163-0047-00
Banana plug to telco alligator clips (black) (test lead) 61/163-0015-01
Banana plug to telco alligator clips (red) (test lead) 61/163-0015-02
6' probe, bnc to alligator clips 61/163-0004-00

Chargers and Batteries

Mains Charger for Riser Bond TDRs (add relevant mains lead, below) 26/30UT-12-2500
US Mains lead, 6.5' (2m), 2.5A 17/GP3071-C7-20-BK-2A5-A
EU Mains lead, 6.5' (2m), 2.5A 17/GP3071-C7-20-BK-2A5-C
UK Mains lead, 6.5' (2m), 2.5A 17/GP3071-C7-20-BK-2A5-D
Battery pack for Riser Bond 3000 series, 1205CX-A, 1270A, 6000 04/RB2757U6
Battery pack for Riser Bond 6000DSL 04/RB2757U4
6' cigarette lighter, 12V charger adaptor for 6000DSL 61/163-0005-00

Carry bags

Riser Bond 1200 Series Optional Foam Padded Carrying Case 61/300-0007-03


Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
