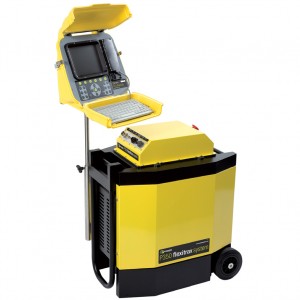

Radiodetection Pearpoint P350 Flexitrax System
P350 flexitrax™ system – the advanced
and complete portable crawler system
for the pipeline inspection professional.
Most motorized inspection systems are complex and bulky. Many are difficult to transport
and install, prone to weather damage and are complicated to operate.
The P350 flexitrax™ offers inspection professionals the ultimate portable crawler system.
This advanced and affordable system features the simplicity and transportability of a
pushrod system while delivering the functionality and performance associated with
complex and expensive crawler systems.
The P350 is a modular system, designed to meet the tough requirements of most
Outstanding picture quality
The P350 flexitrax features ultra-bright LEDs and high-resolution cameras built
on a powerful digital video platform. The P350 flexitrax system supports three
interchangeable, high-resolution cameras. Each camera features the latest generation,
ultra-bright white LEDs that ensure a clear picture and a long, maintenance-free life.
The digital video is displayed on the command module’s ultra-bright, 200mm (8")
industrial grade TFT screen.
The P350 flexitrax command module allows you to zoom and rotate photos and live or
recorded digital video in real-time. The command module also provides Mimic™ display,
an intuitive way of controlling pan and tilt.
Combined, these features provide outstanding video picture quality and make it easier
and quicker to correctly identify problems even in the toughest conditions.
Reliability where you need it
The P350 flexitrax is engineered to operate in almost any environment. The command
module and drum have a weatherproof rating of IP53. The tough, yet light-weight
controller provides a durable buffer between the elements and your survey data.
The command module stores survey data direct to solid-state Compact Flash cards.
Solid-state non-volatile memory means there are no moving parts so your files are
secure and less vulnerable to shock damage and power outages.
The system is operable in the most demanding conditions. The
crawlers can operate fully submersed and are water resistant to
depths of up to 100m (330'). They are constructed from brass
and stainless steel and are built with a single or twin 50W motor
configuration, powerful enough to move through almost any
pipeline system. The integrated sensitive inclinometer and the
multi-frequency sonde allow you to map pipeline topography
easily and efficiently.
The ruggedly constructed cameras are designed to transfer a
front impact to the crawler body, protecting the cameras from
most severe damages.
Flexible digital data transfer
The advanced digital platform of the P350 flexitrax means you
can transfer survey data from your Compact Flash card to your
PC or laptop via fast USB 2.0. Use the included FlexiSight™
Windows-based software to edit video and convert reports to
Microsoft Word format.
With Bluetooth wireless technology you can send your inspection
photos from the command module to a compatible cell phone and
forward them instantly to your client.
The P350 flexitrax is small enough to fit in the trunk of your
car. The system can be van or truck mounted and wheeled on
site using the ergonomic barrow design, allowing you to reach
conduits beyond the range of your vehicle. Once on site, the
system is quick and easy to set-up and deploy.
Build the system to meet your inspection requirements. Choose
between a practical and inexpensive manual drum system or
an advanced, compact, self–contained powered drum with up
to 305m (1000') of cable. Choose from three interchangeable
cameras and two powerful, yet compact crawlers that are
designed to withstand the most challenging sub-surface
The command module is also fully compatible with the P340
flexiprobe™, giving you access to its comprehensive range of
pushrod reels, cameras and accessories. Switch from crawler to
pushrod inspection without carrying a second system.
The system is easy to use, thanks to its intuitive user interface
and simple, one-touch control over video and photo capturing.
The tough and durable keypad gives you direct access to
advanced digital features and lets you drive any drum, crawler and
The command module and the drum also feature RCA video
outputs, meaning you can record your video to an external device
or display video on an external monitor.
Choose between a wide choice of different wheels, elevators and
tires to suit the pipe you are surveying. The small wheel set is the
optimal configuration for deploying the P354 crawler in 100mm
(4") pipes* and the P356 crawler in 150mm (6") pipes*.
The P350 flexitrax system is designed and built for continuous
operation and easy maintenance. Each crawler is designed for
quick repair. The powered drum features a removable drum and
cable cassette that’s fast and easy to replace in the workshop or
even in the field. The optional re-termination kit makes it easy and
affordable to replace and repair damaged cables.
The P350 flexitrax system is the obvious choice when you need
cost-effective and flexible solutions.
*Minimum specified diameter must be maintained along the whole length
of the survey.
Compact and tough controller can be left on the drum or fitted where convenient
Ultra-bright 200mm (8") industrial grade TFT screen with anti-reflective protection
offers the best picture in any light condition
Tough and durable keypad to control all the system functions and movements
Splash-proof keyboard for text entry and report writing
Digital zoom and picture navigation functions to explore, in real-time, the live video picture
Record full PAL/NTSC video and snapshots onto solid-state Compact Flash (CF) card
Bluetooth wireless technology to send photos world-wide instantly (using a compatible
cell phone and service provider)
USB 2.0 port to transfer all the files quickly to a
PC or laptop
Compatible with P340 flexiprobe pushrod system
Rugged and flexible
IP53 and IP68 rated system
Self-contained power drum allows for van fit or
Cable lengths from 100m (330') to 305m (1000') with a cable-end protection system
Automatic or manual retrieval mode
Manual drum available
Crawlers rated IP68 to 100m (330'), with inbuilt inclinometers and multi-frequency
Power and agility
Non-steerable P354 crawler allows access in a typical 300mm manhole and pipe
surveys from 100mm to 300mm (4" to 12")
Steerable P356 crawler for pipes from 150mm (6") to 600mm (24")
50W (P354) and dual 50W (P356) crawler motors
Quick release wheels (rubber or
abrasive) for all pipe conditions
Light and vision
Uses ultra-bright LEDs for a long, maintenance-free life and exceptional light
Choice of three high-definition cameras: forward view, pan & tilt or pan & tilt with
10x optical zoom
P350-CMOD Mimic display control and auto survey mode for easy pan & tilt operation
The P350 flexitrax system is a modular
system and all its main components are
Tailor the system to suit your business
Choose between the manual or selfcontained
powered drum systems
Determine the cable length and
crawler size to meet your typical pipe
Choose any high-resolution (Forward
View, Pan & Tilt or Pan & Tilt with 10x
Optical Zoom) camera; each with ultra
bright, white LED technology
Choose from a wide range and size of
wheels, tires and accessories to suit any
Use the P350 controller with the
comprehensive P340 flexiprobe range
of pushrods and cameras.
10/P350-CMOD P350 Command Module; including Compact Flash, USB, Bluetooth and Ethernet Modules
10/P350-CMOD+AUT P350+ Command Module; including Compact Flash, USB, Bluetooth and Ethernet Modules,with internal battery option and automotive charger. Note: Internal battery can only power the controller and compatible pushrod systems.
10/P350-CMOD+MAINS P350+ Command Module; including Compact Flash, USB, Bluetooth and Ethernet Modules,with internal battery option and mains power lead charger. Note: Internal battery can only power the controller and compatible pushrod systems.
10/P350-DRUM-M-100-S P350 Manual Drum, 330'/100m, Swivel termination, including CMOD to PSU link cable 3'/1m, Manual Drum to PSU cable 10'/3m, Command Module Clamp and Crank Handle
10/P350-DRUM-M-150-S As above 495'/150m option
10/P350-DRUM-M-200-S As above 660'/200m option
10/P350-DRUM-M-250-S As above 825'/250m option
10/P350-DRUM-M-305-S As above 1000'305m option
10/P350-DRUM2-P-100 P350 Powered Drum, 330'/100m, Swivel termination, including CMOD to PSU link cable 3'/1m, Command Module Clamp and Crank Handle.
10/P350-DRUM2-P-150 As Above 495'/150m option
10/P350-DRUM2-P-200 As Above 660'/200m option
10/P350-DRUM2-P-250 As Above 825'/250m option
10/P350-DRUM2-P-305 As Above 1000'/305m option
10/P350-PSU-M P350 PSU (Power supply) for Manual Drum
10/P354 P354 Crawler, non-steerable
10/P356 P356 Crawler, steerable
10/P350-WHEELS-S P350 Set of Small wheels, 4 hard tires, 4 soft tires
10/P350-WHEELS-M P350 Set of Medium wheels, 4 hard tires, 4 soft tires
10/P350-84MM-WHEELS-M-KIT P350 set of 4 x 3.5" (84mm) wheels and P350-mounting adaptors. Slim profile wheels for navigating pipe offsets/thin sections of pipe (historically similar to P238 wheels). Material - standard compound.
10/P350-84MM-WHEELS-S Set of 4 x 3.5" (84mm) wheels only. Material - Soft compound.
10/P350-84MM-WHEELS-M Set of 4 x 3.5" (84mm) wheels only. Material - Medium compound.
10/P350-84MM-WHEELS-H Set of 4 x 3.5" (84mm) wheels only. Material - Hard compound.
10/P350-WHEELS-L-MK2 P350 Set of Large wheels with Tires (P356 only)
10/P350-DUAL-L-ADAPT-KIT P350 Dual Large-wheel adaptors kit, allow 2 large wheels to be mounted together (can increase surface area, traction and pipe height, or driver higher over debris). No wheels included.
10/P350-CAM-FW-PAL P350 PAL Forward View Camera
10/P350-CAM-FW-NTSC P350 NTSC Forward View Camera
10/P350-CAM-PT-PAL P350 PAL Pan & Tilt Camera
10/P350-CAM-PT-NTSC P350 NTSC Pan & Tilt Camera
10/P350-CAM-PTZ-PAL P350 PAL Pan & Tilt with Zoom Camera
10/P350-CAM-PTZ-NTSC P350 NTSC Pan & Tilt with Zoom Camera
UK, US or EU mains lead as required
National / regional splash-proof keyboard as required
P350 flexitrax user guide
Flexisight Manager software CD (reporting package)
Compact flash memory card (enquire for latest memory capacity)
P350 universal controller visor label
USB interface cable (A to B) 3'/1m
Allen key set - ballend LG series.
RoHS-compliant multipurpose grease (50 ml)
Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
