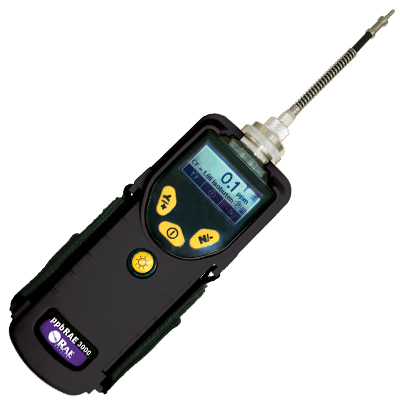

RAE Systems ppbRAE 3000


Portable Handheld VOC Monitor


The PpbRAE 3000 is the most advanced handheld volatile organic compound (VOC) monitor on the market. Its photoionization detector’s (PID) extended range of 1 ppb to 10,000 ppm makes it an ideal instrument for applications from HazMat/Homeland Security and industrial hygiene to Indoor Air Quality and military applications.

The RF modem allows real-time data communication with a base controller located up to 500 feet away from the PpbRAE 3000 detector (or two miles with optional RAELink3 portable modem). A personal computer can be used as the base station for a PpbRAE 3000 system. The standard ProRAE Remote software is capable of monitoring the input of up to 64 remotely located monitors, including ppbRAE 3000, AreaRAE, etc.

Key Features

  Proven PID technology. The patented sensor provides the following unique features 3-second response time, extended range from 1 ppb to 10,000 ppm with improved linearity and humidity compensation with integral humidity and temperature sensors
  Real-time wireless data transmission with built-in RF modem or Bluetooth
  Designed for simple service Easy access to lamp and sensor in seconds without tools
  Big graphic display for easy overview of gas type, Correction Factor and concentration
  Field-interchangeable battery pack replaced in seconds without tools.
  Integrated flashlight for better view in dark conditions
  User-friendly screens including dataplot chart view
  Integrated RAE Systems Correction Factors list for more than 200 compounds to measure more chemicals than any other PID
  Multi-language support with 12 languages encoded
  Rugged housing withstands use in harsh environments. IP67 waterproof design for easy cleaning and decontamination in water. Strong, protective removable rubber boot



Additional Features

  View real-time sensor data and alarm status at headquarters or command Center
  Automatic lamp type recognition
  Duty-cycling™ lamp and sensor autocleaning technology
  Tough, flexible inlet Flexi-Probe™
  Large 3 keys operable with 3 layers of gloves
  Strong, built-in sample pump draws up to 100 feet (30m) horizontally or vertically
  Loud 95 dB audible alarm
  Bright red flashing visual alarm
  Interchangeable Drop-In Lithium-ion and alkaline battery packs
  Charging cradle doubles as an external battery charger
  Compatible with AutoRAE™ calibration station
  ProRAE Remote software simultaneously controls and displays readings for up to 64 remote detectors
  License free, ISM band RF transmission with communication range up to 500 feet 2 miles (with optional)
  Optional RAELink III modem provides GPS capability to track and display readings from remote detectors as well as 2 miles long distance transmission
  Data logging with up to 6 months of data at one-minute intervals
  3-year 10.6eV lamp Warranty


Data Sheet
Manual

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
