Sabre Safety 7200 Plus Controller



  Centralised Graphic Display and Alarm Controller
  Seamless Upgrade for Current Loop and Direct Catalytic Bead Detectors
  MODBUS Interfacing and Output Relay Options for Any Environment
  Compatibility with Sabre Safety's Full Array of Gas Detection Transmitters and Detectors
  Hazardous Location Approval for Class I, Division 2 Applications

THE SCOTT SAFETY 7200 PLUS AND 7400 PLUS CONTROLLERS are designed to provide simultaneous display and alarm functions for up to four monitored variables. A graphic LCD displays monitored data as bar graphs and engineering units. Three adjustable alarm levels are provided per channel. Relay outputs allow control of beacons, horns and other alarm events.

The controllers are easy to configure and are user friendly. Measurement ranges in engineering units, adjustable alarm set-points, optional serial interfaces and many other features offer flexibility to meet most demanding applications.

The controllers utilise NEMA 4X rated enclosures and are CSA certified to CSA C22.2 No. 152 for combustible detection and Class I, Division 2, Groups A, B, C and D hazardous locations. An optional RS-485 MODBUS® slave port allows up to 128 controllers to be multidropped onto a single data highway for interrogation by another MODBUS master.

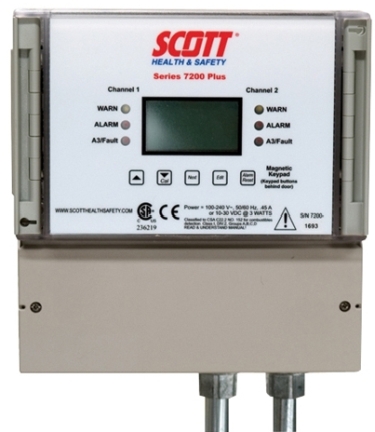

7200 Plus Controller

Other 7200 Plus options include six 5 amp SPDT discrete alarm relays per channel, 4 to 20 mA outputs and light stacks. Nonvolatile memory retains all configuration data indefinitely.

DOWNLOADS


Datasheet

Ordering Information


Complete 7200 Plus Controller

093-0427 7200 Plus including 4-20 input board, NEMA 4X enclosure, audible alarm
093-0428 7200 Plus including direct cat bead input board NEMA 4X enclosure audible alarm
093-0429 7200 Plus 4-20 input board in a NEMA 7 enclosure
093-0430 7200 Plus Direct catalytic bead board input board in a NEMA 7 enclosure
093-0616 7200 Plus - 2 Channel, NEMA 4X, 4-20 mA Input Board, CSA approved
093-0617 7200 Plus - 2 Channel, NEMA 4X, Direct Catbead Input Board, CSA approved

Note: Direct catbead input boards can be configured for 4-20mA input Note: RS 485 output optional

Note: RS 485 output optional

7200 Plus Controller Components

093-0431 7200 Plus in NEMA 4X Enclosure
093-0432 7200 Plus in NEMA 7 Enclosure
093-0433 Dual Channel 4-20mA input
093-0434 Dual Bridge Sensor Input
093-0435 Discrete Alarm Relay Board (6, 5A Form C Relays)
093-0436 Dual 4-20 mA Output
093-0438 RS-232 / RS-485 MODBUS RTU Addressable Interface
093-0439 100db Piezo Audible Alarm (added to NEMA 4X Enclosure)
093-0440 Dual light stack (non-hazardous, general purpose; Amber/Red)

7200 Plus Controller Replacement Parts

093-0441 Replacement NEMA 4X Enclosure w/Cover
093-0442 Replacement NEMA 4X Door w/Graphic Overlay
093-0443 "Big Blue" Magnetic Wand for NEMA 7 XP Enclosure
093-0444 "Small Red" Magnetic Wand for NEMA 4X Enclosure
093-0445 Fuse, 2 AMP on Motherboard
093-0446 Motherboard Assembly PCB including Terminal Block and Fuse
093-0447 CD Readout / Microcontroller Assembly PCB Including Ribbon Cable



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
