Scott Safety T-A-Line System
The T-A-Line system is for use with filtered factory airline supplies and delivers air efficiently and safely to the user.
It features an auxiliary air outlet for use with air powered tools.
The regulator compensates for variable pressure to guarantee the wearer sufficient air flow.
The in built indicator, which also acts as a silencer, visually warns the user of an oil contaminated air supply.
A warning whistle informs of low pressure and flow below the manufacturer's minimum.
The T-A-Line is fully compatible with the AFU300 and AFU600 Airline Filtration Units.

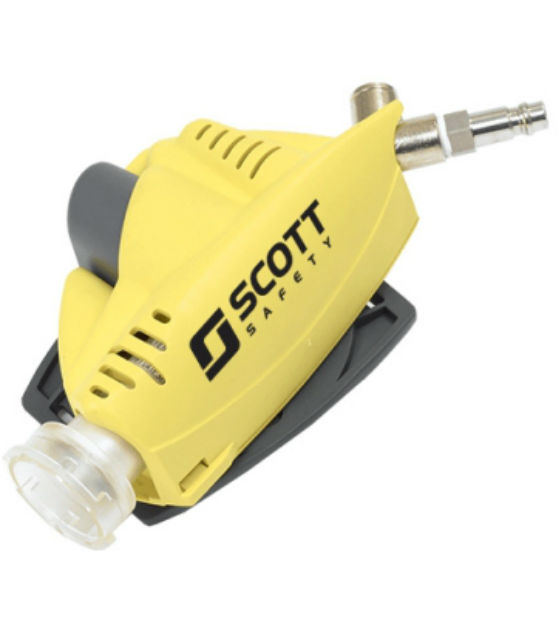

1070596 T/A/Line control unit with residual odour filter, warning whistle and
air tool outlet.
Headtops approved with TA Line
1070619 T1/ML: Half hood in PU coated nylon, acetate visor, medium /
large, TH2 / LDH2
1070620 T1/SM: Half hood in PU coated nylon, acetate visor, small /
medium, TH2 / LDH2
2023147 T2: Full hood in PU coated nylon, acetate visor, TH3 / LDH3 EN1835
2023151 T2/AS: As T2, in white antistatic material EN1835
2023470 T3/PC: Visor - polycarbonate, complete with faceseal in PU
coated nylon TH2 LDH3. Order T3/AC for acetate visor
2023320 T5/PC: Helmet, complete with polycarbonate visor, TH2 / LDH3 EN1835, EN397,
2023261 T25/PC: Helmet with chemically resistant full hood in hypalon,
hose and polycarbonate visor, TH3/LDH3. Order T25/AC for
2023265 T25/AS: As T25/AC, in black anti-static hypalon. EN1835, EN397,
2023257 T25/CS: As T25/AC, in butyl-viton material for additional chemical
5064411 T/PROCAP/PC: Procap Powered Air Helmet- Clear PC Visor -
5064422 T/PROCAP/WELD: Procap Powered Air Welding Helmet - TH2/
LDH2 (Order welding filters separately, see spares pages)
PVC Supply Hose for T/A/Line
1072030 Air supply hose, PVC 3 metres with CEN couplings EN1835
1072031 Air supply hose, PVC 10 metres with CEN couplings EN1835
5064681 EPDM hose converts any Procap for T/A/Line use
Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
