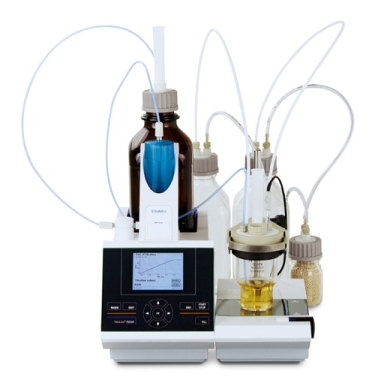

SI Analytics TitroLine 7750


The new Titrator from SI Analytics - more options

The Titroline 7750 is the all-rounder for both potentiometric titration and volumetric KF titration.

The TitroLine 7750 combines the features of the potentiometric titrator TitroLine 7000 and the volumetric Karl Fischer titrator TitroLine 7500.

The new TitroLine 7750 is characterized as follows:

  Highly visible full color display, that can be easily viewed from a distance and extreme angles

  With new interchangeable modules which all relevant reagent and unit data can be stored

  Thanks to the 2 x USB-host, 1 x USB-PC and 2 x RS232 ports very expandable.

  Connectable are e.g. USB keyboard, USB printer, barcode reader, USB flash drives, balances, PC und further SI Analytics devices such as piston burettes and sample changers

  Storage of results using via USB port (PDF and CSV -format) including method transfer

  With standard methods for potentiometric and KF titration

Models

  TitroLine 7500 KF
  TitroLine 7500 KF trace


Data Sheet

Ordering Information

Type No Order NoDescription
TL 7750 285220240 Basic unit without magnetic stirrer, with stand rod and titration clamp Z 305, power supply 100-240 V
TL 7750-M1 285220250 TitroLine 7750 basic unit with magnetic stirrer TM 235, with stand rod and titration clamp Z 305, power supply 100-240 V


Required accessories for the volumetric KF titration

Type No Order NoDescription
TM 235 KF, 115-230 V 285220900 Titration stand with pump. Scope of delivery: Basic unit with 1 l DURAN reagent bottle TZ 1791, 1 l DURAN waste bottle TZ 1792, moisture bottle, tubes and screw threads, power supply TZ 1855 (110 ... 240 V)
TZ 1770 285216677 Karl-Fischer-titration vessel. DURAN glass vessel TZ 1775 (approx. 30...150 ml), removable head made of polypropylene/PTFE, 1 drilling NS 19, NS 14,5, NS 7,5 and 3 drillings with screw threads, titration tip, moisture trap and weighing funnel
KF 1100 285102030 Mikro-double platinum electrode for Karl Fischer titrations,with fixed cable, double platinum pin and tapper NS 7.5 for TZ 1770 and TZ 1772
TZ 1748 285216560 Stand rod stainless steel 10 mm
TZ 1789 285221120 Starter kit KF consisting of molecular sieve, needles with syringes and glass wool


Recommended exchangeable units for the KF titration

Type No Order NoDescription
WA 05 285220300 5 ml exchangeable unit with integrated chip for reagent data,with brown glass bottle for titrant, GL 45 and S 40-bottle adapter, tubes, drip tube and titration tip
WA 10 285220310 10 ml exchangeable unit with integrated chip for reagent data, with brown glass bottle for titrant, GL 45 and S 40-bottle adapter, tubes, drip tube and titration tip
WA 20 285220320 20 ml exchangeable unit with integrated chip for reagent data, with brown glass bottle for titrant, GL 45 and S 40-bottle adapter, tubes, drip tube and titration tip


Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
