Sieger OELD (Optima Excel Local Display)

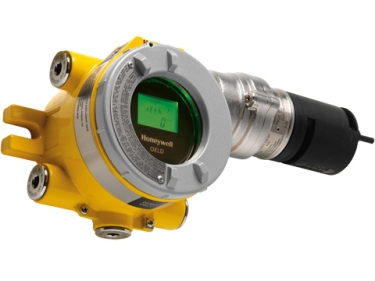

The Optima Excel Local Display (OELD) is a smart junction box for the Searchpoint Optima Plus and Searchline Excel infrared detectors for flammable hydrocarbons.

The OELD includes an LCD screen for gas information, a "traffic light" indicator for at-a-glance detector status, and Bluetooth® connectivity for simplified, non-intrusive maintenance.

Simply pair the OELD with our intrinsically safe, ruggedized smartphone; then use the OELD smartphone app to interact with the gas detector from up to 10 meters away.

For maximum flexibility, the gas detector can be mounted either directly or remotely to OELD to suit any situation.

Features & Benefits

  Gas sensor junction box featuring simplified maintenance using familiar smartphone technology
  Smart junction box provides non-intrusive interaction reducing maintenance time and safety risk
  Easy access to hard-to-reach detectors
  Bright "traffic light" indicator for safety awareness

Quick Specs

  Backward compatible with all versions of Searchpoint Optima Plus and Searchline Excel
  Robust Aluminium or Stainless steel housing
  Ingress protection IP66 / Type 4X (in accordance with NEMA 250)
  Worldwide approvals including ATEX, IECEx, cULus

Data Sheet

Ordering Information


OELDBXXXXXADMAX OELD Smart Junction Box, Display, Ex d, Aluminium, M25,ATEX/IECEx
OELDBXXXXXSDMAX OELD Smart Junction Box, Display, Ex d, 316SST, M25, ATEX/IECEx
OELDBXXXXXAEMAX OELD Smart Junction Box, Display, Ex e Aluminium, M25,ATEX/IECEx
OELDBXXXXXSEMAX OELD Smart Junction Box, Display, Ex e, 316SST, M25, ATEX/IECEx
OELDBXXXXXADNUX OELD Smart Junction Box, Display, C1D1 Z1, Aluminium, 3/4"NPT, cULus
OELDBXXXXXSDNUX OELD Smart Junction Box, Display, C1D1 Z1, 316SST, 3/4"NPT, cULus
029-5402-000 Rugged Smart Hand-Held (North America)
029-5402-200 Rugged Smart Hand-Held (EU)
029-5402-300 Rugged Smart Hand-Held (UK)
029-5401-000 Zone 1 (IS) Rugged Smart Hand-Held (North America)
029-5401-200 Zone 1 (IS) Rugged Smart Hand-Held (EU)
029-5401-300 Zone 1 (IS) Rugged Smart Hand-Held (UK)

Accessories and Spares

029-5403-000 Wall Charger for Smart Hand-Held (North America)
029-5403-200 Wall Charger for Smart Hand-Held (EU)
029-5403-300 Wall Charger for Smart Hand-Held (UK)
029-5410-000 USB Cable with Integral Protection Device (for IS Smart Hand-Held)
1226A0358 OELD/XNX Pole/Pipe Mount Kit
1226A0355 OELD/XNX Ceiling Mounting Kit
94000-A-1006 OELD/XNX Sunshade Kit
OELDVSK01 OELD General Service Kit includes O-rings and Fixings
OELDVSK02 OELD Terminal Block Set
OELDVSK04 OELD M25 Stopping Plug
OELDVSK05 OELD ¾"NPT Stopping Plug
OELDVSK06 OELD Electronics Module
OELDVSK07 OELD Electronics Module for increase safety versions
OELDVSK08 OELD Plastic Locating Post for Electronics Module

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
