HomeGas AnalysersSafety › Sieger Sensepoint with Junction Box

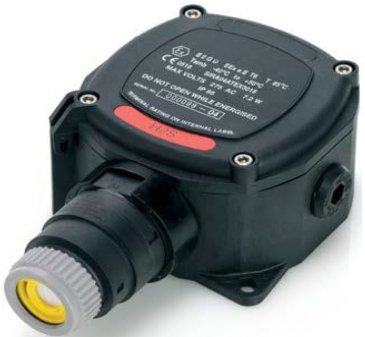

Sieger Sensepoint with Junction Box

The Zareba Sensepoint range of flammable, toxic and oxygen gas detectors offer users a low cost solution to their gas monitoring needs, in or out of doors and even in potentially explosive atmospheres (ATEX approval only). Note: the flammable sensor is certified to +50°C only (see Sieger Sensepoint for higher temp ranges). Supplied with a pre-wired junction box, the detector can be installed using conduit or armoured cable and glands depending on individual site standards.

The junction box includes a hinged lid to ensure both hands are free to complete electrical connections. Threaded M20 as well as ¾" and ½" NPT clearance entries are included as standard, each one fitted with an appropriate seal, so enabling the user to select the most convenient entry size to use.

All Sensepoint gas detectors are pre-configured at the factory and do not require calibration during operation. Sensepoint gas detectors are designed for use with Zareba Touchpoint gas detector controllers.

Easy to Use

  Factory set operation
  Simple to replace
  Minimal training required

Data Sheet
Sensepoint with Junction Box Manual

Fit For Purpose

  Flammable, toxic and oxygen versions available
  High performance, low cost
  Suitable for new and retro fit applications Proven Sensor Technology
  SurecellTM electrochemical sensors
  Poison resistant catalytic bead
  Fast and reliable
  Typical 2 to 5 years operational life ATEX Certified
  Complies with the latest European standards
  Hazardous area approval AND performance
  IP 65/66 for use in harsh environments

Range of Accessories

  Weatherproof cap
  Flow adaptor
  Duct mounting kit
  Collecting cone

Ordering Information


SPSTAXF1 0-100%LEL Methane *1 *2
SPSTAXO1 0-25%v/v Oxygen *1 *2
SPSTAXC1 0-200ppm Carbon Monoxide *1
SPSTAXC2 0-500ppm Carbon Monoxide
SPSTAXH1 0-50ppm Hydrogen Sulphide *1
SPSTAXH2 0-20ppm Hydrogen Sulphide
SPSTAXH3 0-100ppm Hydrogen Sulphide
SPSTAXG1 0-1,000ppm Hydrogen *1
SPSTAXL1 0-5ppm Chlorine *1
SPSTAXL2 0-15ppm Chlorine
SPSTAXS1 0-15ppm Sulphur Dioxide *1
SPSTAXS2 0-50ppm Sulphur Dioxide
SPSTAXN1 0-10ppm Nitrogen Dioxide *1 *2
SPSTAXA1 0-50ppm Ammonia *1
SPSTAXA2 0-1000ppm Ammonia

*1 = Standard gas range to be used wherever possible.
*2 = Contact us for further information on alternate ranges.


02000-A-1645 Flow Housing Assembly (for Sensepoint, Signalpoint, Satellite (with adapter), XNX MPD and Series 2000)
00780-A-0160 Right Angle Mounting Bracket For Junction Box 00780-A-0100
02000-A-1635 Weatherproof cap for use with toxic detector including remote gassing nozzle (for Sensepoint, Signalpoint, Satellite (with adapter), XNX MPD and Series 2000)
02000-A-1640 Weatherproof cap for use with combustible detector including remote gassing nozzle (for Sensepoint, Signalpoint, Satellite (with adapter), XNX MPD and Series 2000)
02000-A-1642 Collecting cone for use with flammable detector (for Sensepoint, Signalpoint, Satellite (with adapter), XNX MPD and Series 2000)
90068-A-8204 Gassing Block 316SST. 6mm O/D Connector to Sensor and 6mm Tube Connector to Gas Bottle
90068-C-8291 PTFE Tubing 8mm O/D x 6mm I/D. Price per Meter
90068-C-8292 Soft PVC Tubing 8mm O/D x 5mm I/D. Price per Meter

Consumables (Spare Sensors)

SPSTAXF1SS 0-100%LEL Methane
SPSTAXO1SS 0-25%v/v Oxygen
SPSTAXC1SS 0-200ppm Carbon Monoxide
SPSTAXC2SS 0-500ppm Carbon Monoxide
SPSTAXH1SS 0-50ppm Hydrogen Sulphide
SPSTAXH2SS 0-20ppm Hydrogen Sulphide
SPSTAXH3SS 0-100ppm Hydrogen Sulphide
SPSTAXG1SS 0-1,000ppm Hydrogen
SPSTAXL1SS 0-5ppm Chlorine
SPSTAXL2SS 0-15ppm Chlorine
SPSTAXS1SS 0-15ppm Sulphur Dioxide
SPSTAXS2SS 0-50ppm Sulphur Dioxide
SPSTAXN1SS 0-10ppm Nitrogen Dioxide
SPSTAXA1SS 0-50ppm Ammonia
SPSTAXA2SS 0-1000ppm Ammonia

Spares (Miscellaneous)

SPSTJB ATEX approved, universal junction box c/w labels
2106M0525 Sensepoint Instruction manual

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
