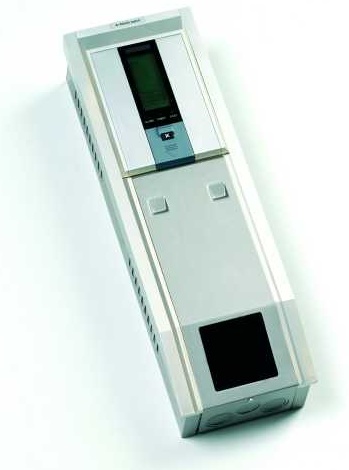

The Touchpoint 1 controller when used with
any one of the Sensepoint range of gas
detectors provides 24 hour protection from
flammable, toxic or oxygen gas hazards.
With executive outputs to shutdown process
equipment or drive warning devices the
Touchpoint 1 is ideal for continuous
monitoring of small remote sites where it is
inappropriate or costly to monitor the area
from a central location.
The shallow profile is designed for convenient
location in corridors or reception areas where
some larger controllers may be obtrusive.
A wall mounting bracket is included to which
the controller is attached, thereby simplifying
installation. All cable entries are made via a
gland plate at the bottom of the enclosure which
includes pre-defined knockouts to minimize risk
of damaging the connection terminals.
The hinged front cover latches open to enable
full and unhindered access to the terminal
compartment for installers.
AC and/or DC driven, the Touchpoint 1 includes
built-in audiovisual alarms, two programmable
alarm relays and a system fault relay as well as
an isolated 4-20mA output proportional to the
input from the field device. The system is fully
user programmable via the ultra-clear backlit
LCD and intuitive menu system. For example,
relays may be configured as ‘non-latching’
(default is ‘latching’) so that outputs clear
automatically on remote unmanned sites.
Buttons used for configuration are hidden
behind an access panel to prevent tampering.
A single button is available to all users on the
front of the controller to perform a simple
self-test or to reset alarms if needed.
Event history is recorded as standard on all
Touchpoint systems. Times and dates of alarms,
power on or off, can be reviewed via the display
to provide useful diagnostic information for
service engineers and plant operators.
A Sieger’ gas detection system
is designed to offer a total solution for your gas
monitoring needs. Manufactured to the highest
quality standards, you are assured of being
surrounded by gas detection equipment you
Self contained, wall mounted enclosure
Ultra-clear backlit display
Built-in audiovisual alarms
Intuitive menu system
Simple push button operation
Easy to Install
Unobtrusive slimline profile
Mounting bracket included
Easy accessto all terminals
Pre-formed knockoutsin gland plate
3 wire mV bridge, 2 and 3 wire 4-20mA inputs
AC and/or DC operation
2 x alarm relays
1 xsystem fault relay
Repeated 4-20mA signa
Fully user programmable forscale,
units and calibration
Relays configurable as energized,
de-energized, latching or non-latching
Compatible with all Sensepoint
