Stuart CD162 & SD162 Stirrer Hotplates


The CD162 is now obsolete, but the SD162 remains available.

  Digital setting and control of both temperature and speed

  Supplied complete with temperature probe for accurate control of liquid temperature

  Advanced safety features: Flashing "Hot" warning light and Independent safety circuit to protect against overheating

  Choice of robust aluminium or chemically resistant ceramic tops

Sophisticated stirrer hotplates offering digital control of both temperature and stirring speed. Comes complete with a detachable PTFE coated probe which when immersed in a liquid sample can very accurately control its temperature over a very long period of time.

As the hotplate heats the sample to the set temperature, the advanced microprocessor automatically measures the rate of temperature rise to judge the capacity and nature of samples (e.g. oil or aqueous). It then optimises the heating rate to minimise overshoot and time to set point. An audible alert sounds when the set temperature has been reached. Both set and actual temperature of the sample are displayed simultaneously on a bright, easy to read vacuum fluorescent display.

For maximum security, an independent safety circuit automatically sets to 20 degrees above the set temperature and shuts off the heater if the temperature exceeds this. Therefore, the hotplate is safe to leave on continuously, even unsupervised e.g. overnight. Internal electronic components are protected against corrosion with a special coating. Stirring action gives much better temperature uniformity within samples because the liquid is mixed effectively. Powerful magnets and motor give stirring speeds up to 1300 rpm and volumes up to 15 litres*.


Stuart SD162 Stirrer Hotplate
Stirrer hotplate, aluminium top, digital (includes PTFE probe)

589.60 (707.52 inc. VAT)
RRP 670.00 Save 80.40
25.00 UK Delivery

For resellers, educational establishments or for larger projects, please contact us directly for pricing as you may be subject to possible discounts.

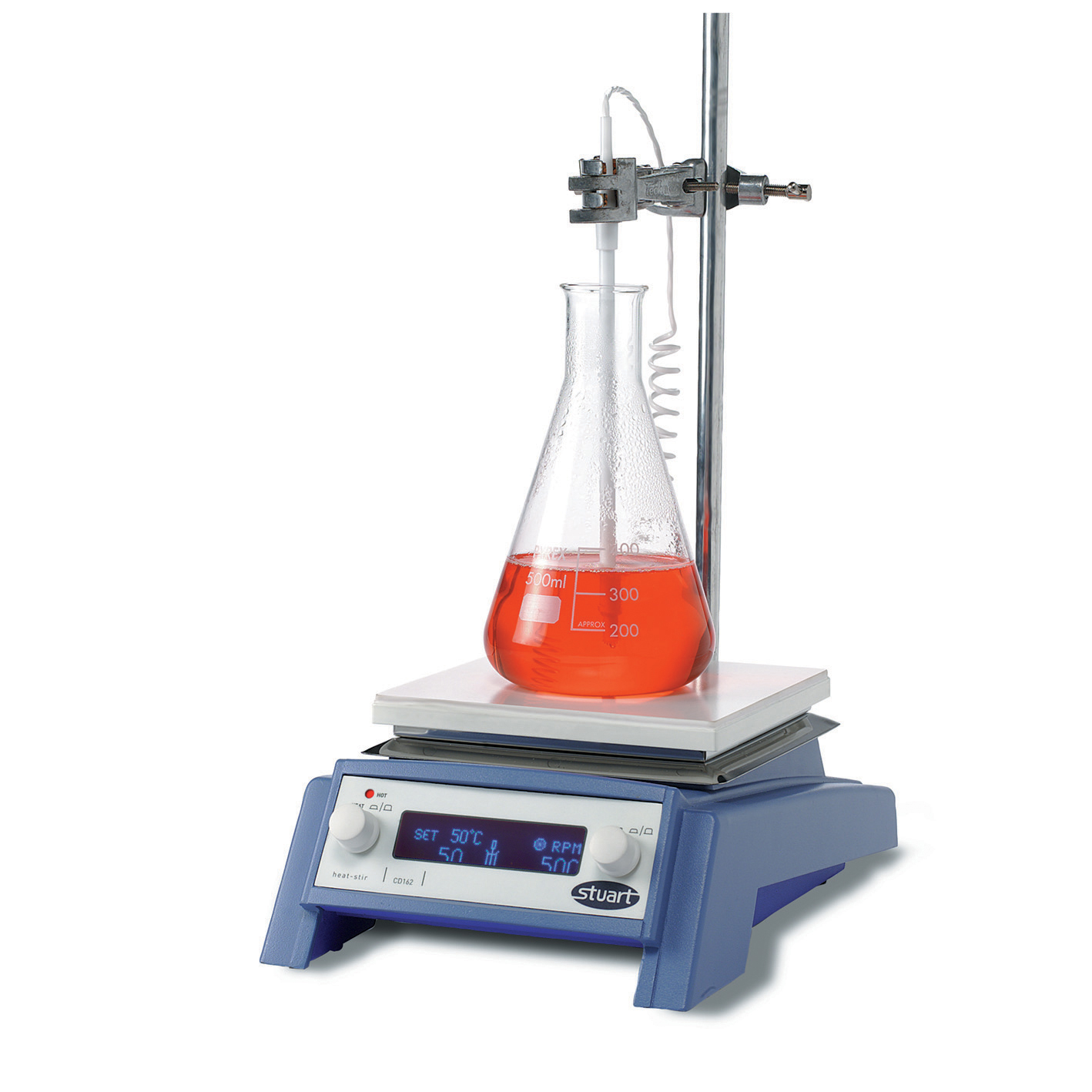

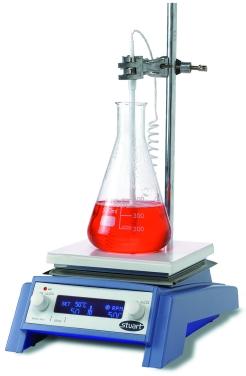

For a larger view, please click on the photo.

Stirring speed is set and displayed digitally so that exactly the same speed can be used each time for reproducibility. If the probe is unplugged, the temperature of the top plate can be set on the display. This can be useful for applications where accurate surface temperature is important such as warming microscope slides and microarrays and specialist electronics.

There are two models to choose from:

Model CD162 has a glass ceramic top plate, which is chemically resistant and gives very fast heat up times.

Model SD162 has an aluminum / silicon alloy top plate which gives a very even plate temperature and quick response to changing set temperature.

With fitting for retort rod and supplied complete with PTFE coated probe and 2 x 25mm PTFE coated stirrer bars.


Data Sheet
Manual

Ordering Information

CD162 - Digital stirrer/hotplate, ceramic plate, 500W
CD162/1 - Temperature probe, stainless steel
SD162 - Digital stirrer/hotplate, aluminium plate, 700W
SR1 - Retort rod, 600 x 12mm

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
