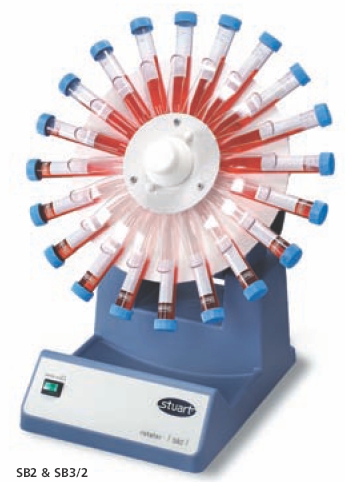

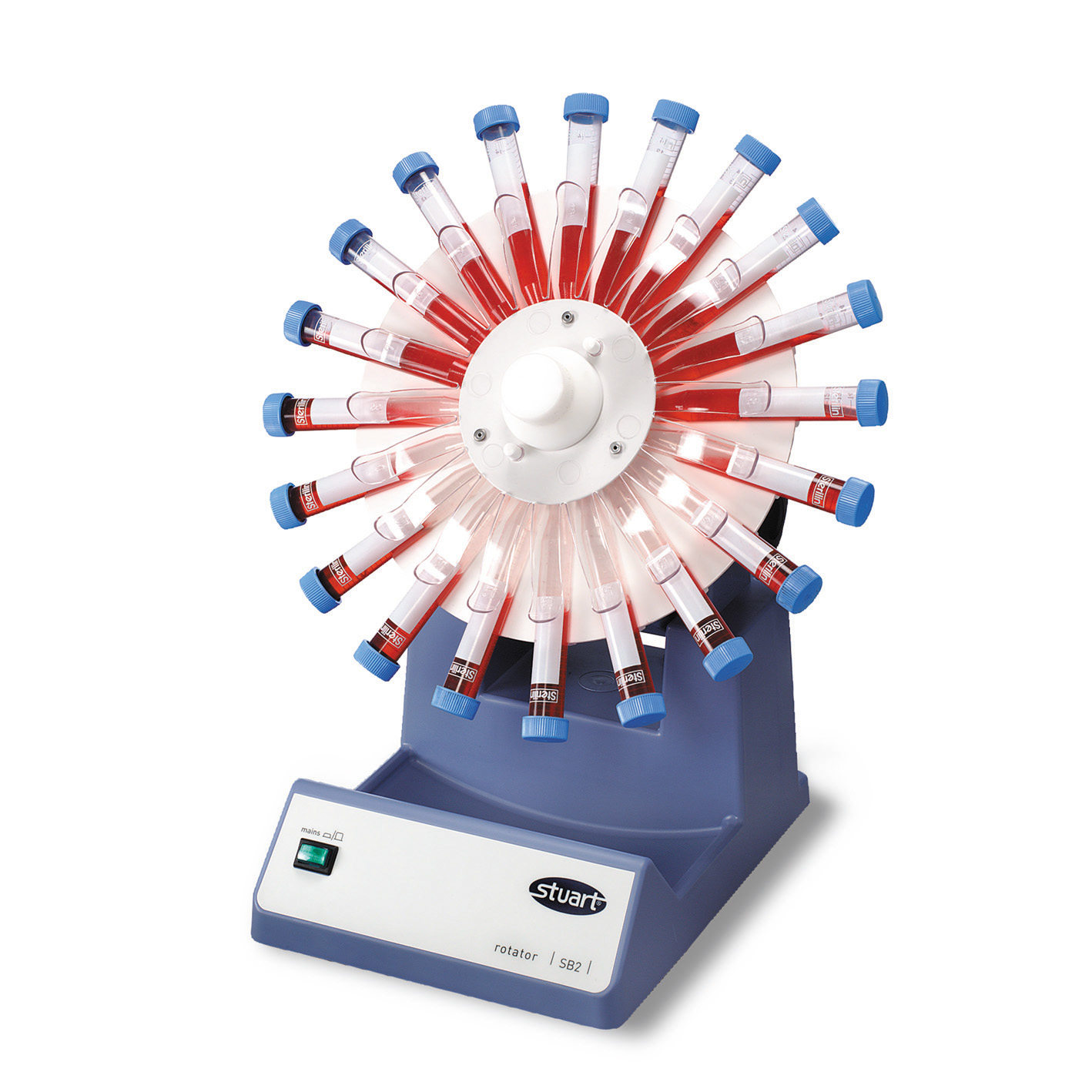

Stuart SB2 Fixed Speed Rotator
Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
Fully adjustable mixing angle
Constant speed of 20rpm
Choice of tube holders to hold a number of different sized tubes
Simple on/off control switch
The SB2 gives gentle but effective mixing, ideal for keeping biological
samples in suspension e.g. blood.
The rotator can be used in incubators up to 60 degC and in cold rooms
down to 4 degC.
The rotator has a constant speed of 20rpm and the angle of rotation is
fully adjustable, from horizontal for minimal mixing to vertical for full
An integral tray catches any spillage from the rotating tubes. A choice
of six tube holders are available to fulfil most applications. It is possible
to use two tube holders simultaneously with our dual holder accessory.
Speed range - Fixed - 20rpm
Dimensions (w x d x h) - 200 x 270 x 230mm
Net weight - 3.2kg
Electrical supply - 230V, 50Hz, 50W
SB2 - Rotator, fixed speed

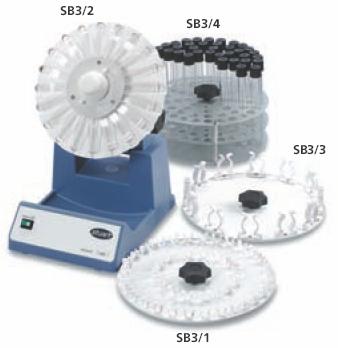

You must also order a tube holder as follows:
SB3/1 Micro tube holder (tube diameter 10 to 11.5mm and max number of tubes 40)
SB3/2 Test/blood tube holder (tube diameter 9 to 20mm and max number of tubes 20)
SB3/3 50ml centrifuge tube holder (tube diameter 25 to 35 mm and max number of tubes 12)
SB3/4 Culture tube holder (tube diameter 12mm and max number of tubes 63)
SB3/5 Culture tube holder (tube diameter 16mm and max number of tubes 63)
SB3/6 Culture tube holder (tube diameter 26mm and max number of tubes 30)
SB3/DUAL Multiple tube holder accessory
