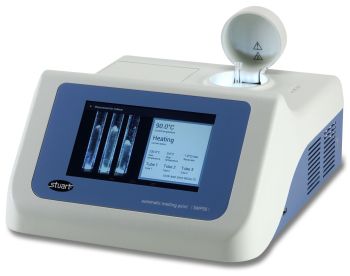

Stuart SMP50 Automatic Melting Point Apparatus


The new Stuart SMP50 Automatic Melting Point Apparatus replaces the SMP40 model, which is now obsolete and employs the latest digital camera technology to produce a high resolution video of the sample melt, this allows the intelligent melt algorithm to identify the smallest of changes within the sample, accurately and reliably determining the melting point of up to three samples simultaneously.

The SMP50 has a custom designed user interface based on an established Android platform for intuitive setup and navigation. The familiar elements of an Android operating system help the user to feel comfortable, with everything where you would logically expect it.

All operation is via the 7" high definition colour touchscreen. Once programmed, users can leave the SMP50 to complete the melt analysis independently, alternatively the melt can also be observed on the screen live or post melt. During post melt review additional measurement tags can be added if required, such as meniscus point or the automatically obtained result can be overwritten.

A generous 8GB on board storage is included, which should comfortably hold approximately 300 melts files including videos. Results can also be transferred via USB stick on to PC for a more permanent long term record. All video files include a temperature stamp, so whatever device you view them on you can confirm the automatically obtained result.

The SMP50 features a useful storage drawer to house all standard capillary tubes. The drawer also contains a small glass cutter that can be used to accurately cut sample tubes in half, for those users who prefer not to use whole tubes. Not only will the glass cutter always get the cut in the centre of the tube, but it will also reliably give a clean cut making sample loading cleaner and safer.

While all measurement files can be easily transferred onto a PC from the SMP50 there is also an accessory printer for direct printing of the results directly from the unit.

All units are factory supplied with a calibration certificate showing individual serial number for traceability. The SMP50 also conforms to Pharmacopeia and GLP.

Technical Specifications

  No of samples 3 simultaneously
  Temperature range Ambient to 400 C
  Temperature resolution 0.1 C
  Display 7 inch HD Colour
  Ramp rates 0.1-20C in 0.1C increments
  Temperature sensor PT1000 Platinum resistance
  Memory 8GB (approx. 300 results with video)
  Cool down time 350-50C ~12 mins
  Heat up time 50-350C ~ 6 mins
  Oven control Closed loop PID
  Data transfer USB Flash drive
  Sample level 2-3mm in 50mm or 100mm length capillaries
  Electrical supply 120V 230V, 50-60Hz
  Temperature units C or F
  Size (h x d x w) 164 x 360 x 300mm
  Net Weight 4.6Kg
  Languages English, French


Data Sheet
Manual

Ordering Information


SMP50 Automatic melting point
SMP50 / IQOQ Automatic melting point with IQ / OQ documentation
SMP50 / PRINTER Accessory Printer
SMP2 / 1 Glass melting point tubes, closed at both ends, pack of 100
SMP10 / 1 Glass melting point tubes, closed at one end, pack of 100



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
