Smooth orbital shaking action Ordering Information
SSM1 - Shaker, orbital, mini Want A Quotation?

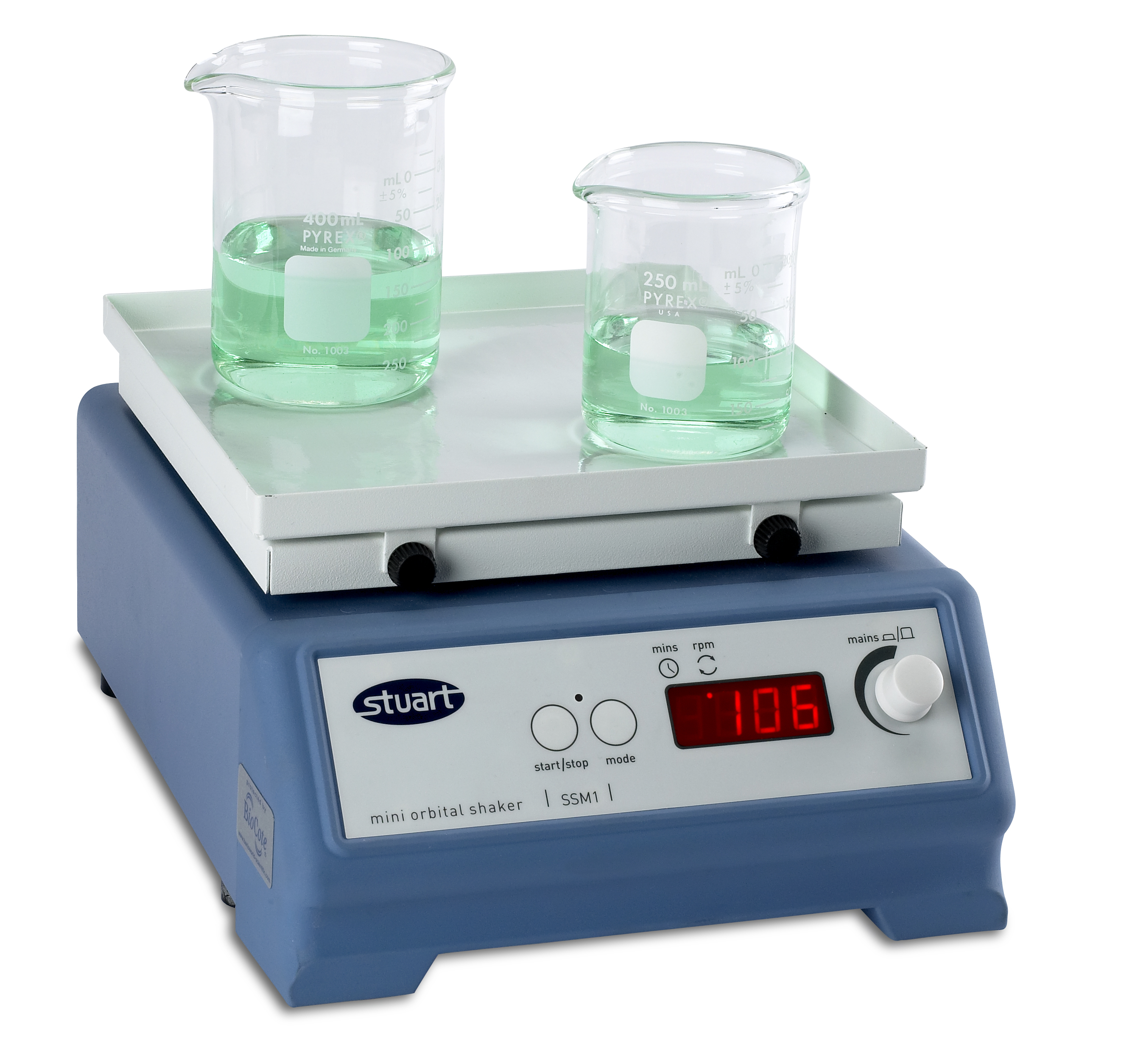

Stuart SSM1 Orbital Shaker
Orbit of 16mm is ideal for larger samples, e.g. multi-well plates
Built-in digital timer
Variable speed control to 300rpm
Supplied with non-slip mat for multi-well plates etc.
Optional accessory cradle system for flasks and bottles
The compact SSM1 provides a smooth uniform circular motion with an orbit of 16mm. It is supplied with a non-slip mat that can hold up to four multi-well plates or diagnostic cards.
The shaking action is ideal for samples of 0.5 to 5ml held in multi well plates, dishes and petri dishes. The shaker can be used in incubators and environmental chambers (up to 40°C and 80% humidity).
Alternatively, an accessory cradle system is available that can accommodate a variety of vessels including flasks, bottles or beakers via four rubber securing bars. It turns the SSM1 into a very effective mini platform shaker. It will hold up to: 4 x 250ml or 2 x 500ml or 1 x 1000ml Erlenmeyer flasks or bottles. These larger vessels are held between the rubber bars. The flexible cradle system allows for different combinations of vessels offering maximum versatility.
Speed is variable from 30 to 300 rpm. Once set on the digital display, the shaking speed is effectively maintained even over long periods of time. Shaking times can be set to run from 1 second to 9 hours on the versatile timer, or the unit can be set for continuous operation.
SSM1/1 - Accessory cradle with 4 securing bars
SSM1/2 - Large platform (holds up 8 plates) 340 x 300mm
SSM1/3 - Clear Acrylic lid
Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
