Techne 3 Position Dri-Block Heaters (DB-3, DB-3A, DB-3DL & DB-3D)


This product is now obsolete. To see the current Techne range, please click here.

Techne's Dri-block heaters provide a safe, dry, constant temperature source in the laboratory. The units are particularly suitable for microbiology and clinical laboratories for incubation, boiling, inactivation, wet ashing, sample concentration, enzyme analysis and many other clinical and industrial purposes.

  Very accurate temperature control
  Analogue or digital control
  Wide range of interchangeable aluminium blocks
  Blocks available as accessories for all applications - tubes, vials and microplates
  Block extraction tool is supplied, allowing blocks to be removed easily
  3-year warranty as standard

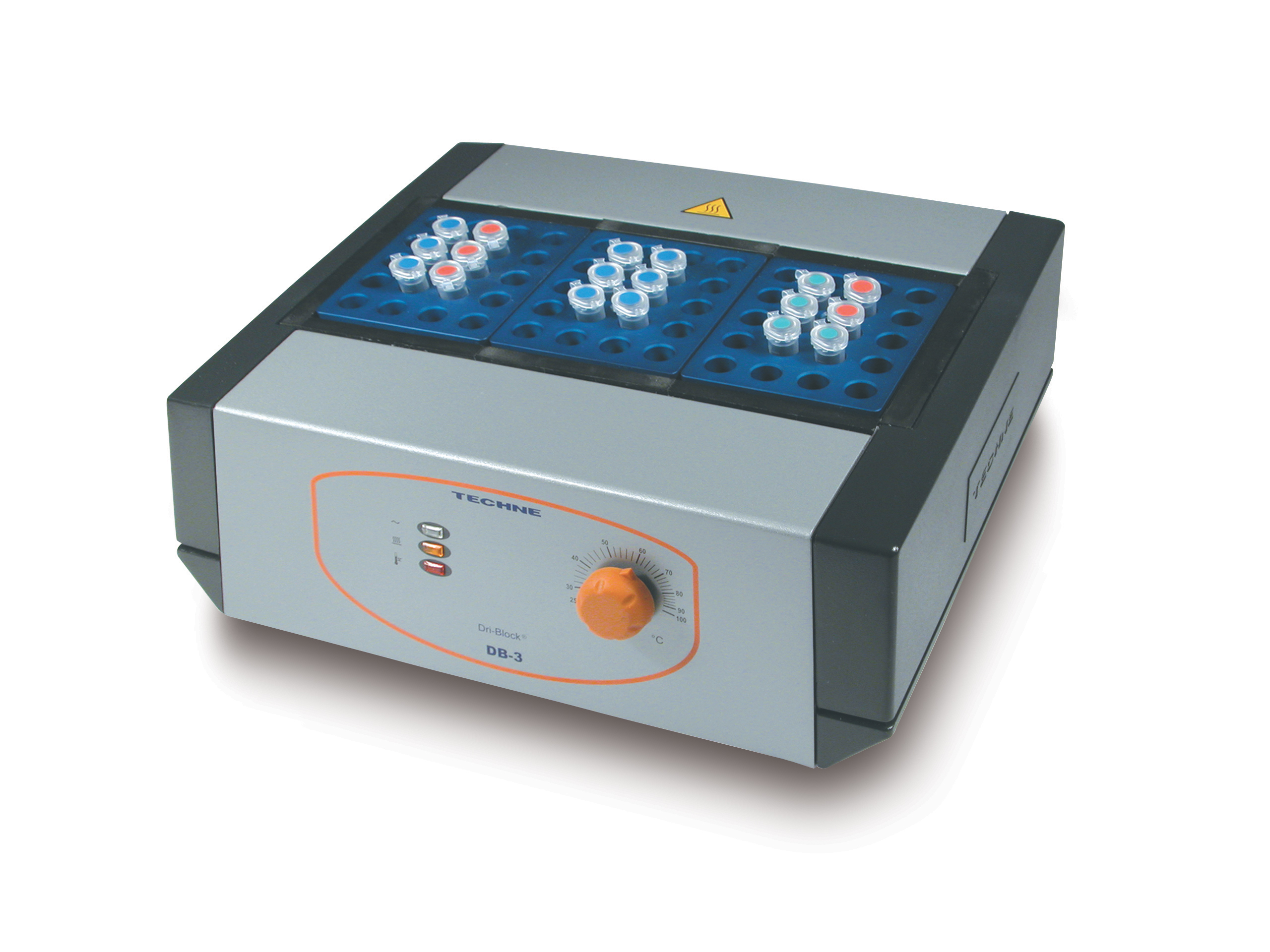

DB-3

  The DB-3 is designed to hold up to 3 aluminium insert blocks or one 96-well plate block
  Analogue: temperature setting is by a calibrated dial
  Temperature range from ambient to 100°C
  Fast heat-up rate: 30°C to 100°C in just 18 minutes
  Temperature stability at 40°C: ± 0.05°C

DB-3A

  Temperature range from ambient to 200°C for higher temperature applications
  Can hold up to 3 aluminium insert blocks or one 96-well plate block
  Analogue: temperature setting is by a calibrated dial
  Powerful heater for fast heat-up rate: 30°C to 200°C in just 30 minutes
  Temperature stability at 40°C: ±0.1°C

DB-3D and DB-3DL

  Can hold up to 3 aluminium insert blocks or one 96-well plate block
  Bright orange LED digital display for fast and accurate setting of temperature
  DB-3DL temperature range from ambient to 100°C and DB-3D up to 200°C
  Powerful heater for fast heat-up rate: 30°C to 200°C in just 25 minutes
  Interchangeable insert blocks to accommodate a variety of tubes
  Temperature stability at 40°C: ± 0.1°C


For a larger view, please click on the photo.


Data Sheet
DB-3 and DB-3A Manual
DB-3D with RS232 Manual

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
