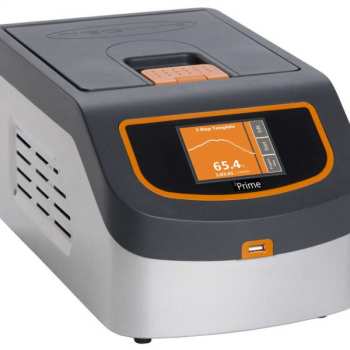

Techne 3Prime Personal Thermal Cyclers

Techne have completely upgraded their established thermal cyclers to become the most feature rich range of instruments on the market. The Prime range of thermal cyclers provide an unrivalled user experience because each unit, from the personal 3Prime right up to the full size PrimeG instrument feature a full colour touchscreen and intuitive user interface.

The Prime range of thermal cyclers are also designed to provide easy programming. Pre-installed templates allow the user to quickly create even the most complicated programmes via the intuitive touch interface. All Prime thermal cyclers have the ability to transfer programmes between instruments via USB or to your PC. The internal memory can hold 1000 programmes with unlimited storage available on USB data stick.

The Techne Prime range of thermal cyclers are among the most reliable thermal cyclers on the market, backed by a 4 year warranty, the best in the industry.

  Colour touchscreen user interface for fast program setup
  Small space-saving footprint
  Block options; 24 x 0.2ml (compatible with 8 tube strips) and 18 x 0.5ml
  Fast ramp rate up to 3.0°C/sec
  Data transfer via USB
  Techne 4 year warranty


Data Sheet
Manual

Parameters3Primebase
Sample capacity: 0.2ml24
Sample capacity: 0.5ml18
Temperature gradientNo. See '3PrimeG' for gradient or '3PrimeX' for upgrade capability
Maximum heating rate3.0°C per second
Maximum number of programs stored1000
Maximum fan noise30dB
Block temperature range10°C to 100°C (4°C final hold)
Block uniformity at 55°C± 0.3°C
Temperature accuracy at 55°C± 0.25°C
Type2 peltier elements per block
Adjustible heated lid temperature35°C to 115°C or off
Heated lid pressureFixed
Program interface3.5 inch touchscreen
Data transferUSB port
Auto re-start on power failureYes
Dimensions (L x W x H)350 x 210 x 180mm
Weight6kg
Voltage100-230V, 50-60Hz
Power155W


Ordering Information


3PRIMEBASE/ 02 �Prime thermal cycler, 24 x 0.2ml

3PRIMEBASE/ 05 �Prime thermal cycler, 18 x 0.5ml



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
